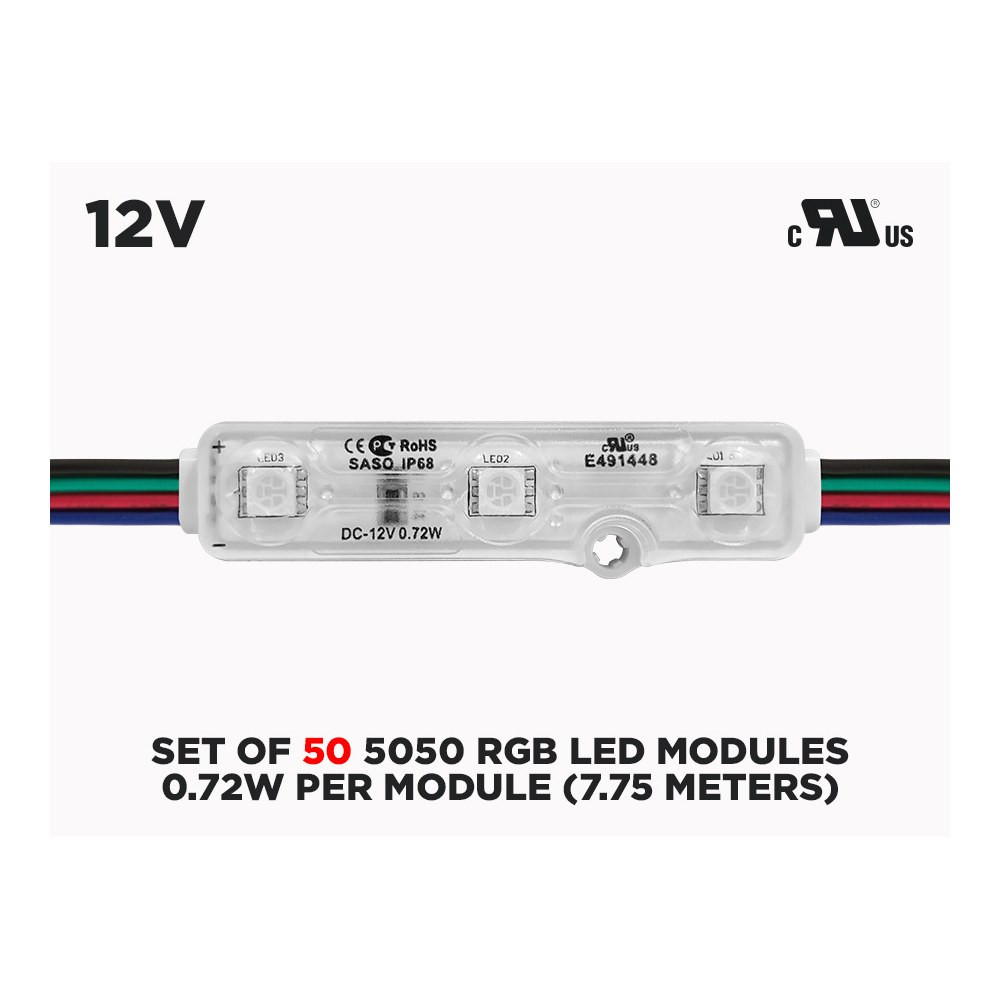

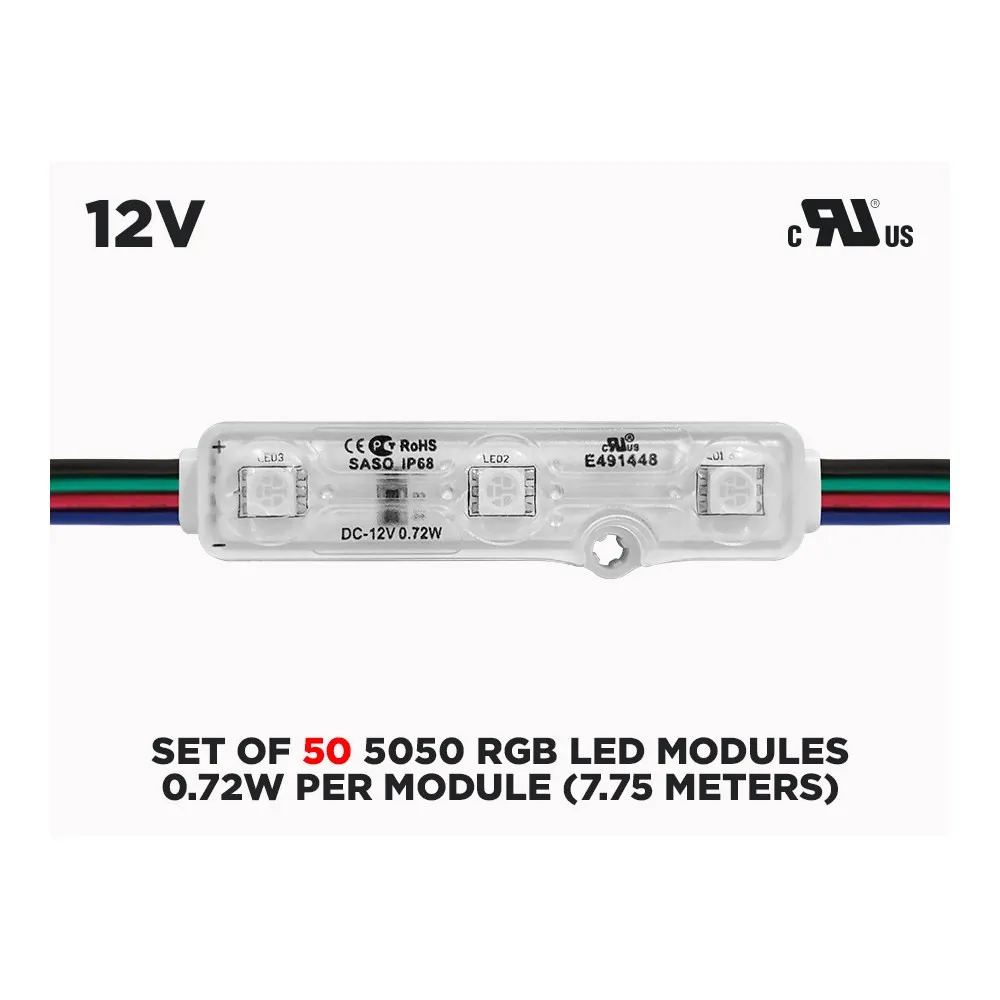

    CURUS CERTIFIED SET OF 50 IP68 5050 RGB LED MODULES (0.72W PER MODULE)
    CURUS CERTIFIED SET OF 50 IP68 5050 RGB LED MODULES (0.72W PER MODULE)

    CURUS CERTIFIED SET OF 50 IP68 5050 RGB LED MODULES (0.72W PER MODULE)

    SKU: RGBMODUR

    Brand: LED MONTREAL

    Make your signs and backlit displays glow in any colour with this set of 50 IP68 5050 RGB LED modules from LED MONTREAL. Also called RGB LED modules, sign modules or backlight modules, these compact units are made for backlighting light boxes, channel letters, illuminated panels and custom displays where a flexible LED strip is not the best fit. Paired with an RGB controller, they mix red, green and blue to produce an almost infinite range of colours, so one installation can shift from your brand colours to seasonal themes in seconds.

    Each RGBMODUR module carries 3 SMD5050 LEDs, draws 0.72W (with a recommended wattage of 0.9W per module) and runs on 12V DC in constant voltage mode, with a working current of 60 mA. The 160° beam angle and the 6,600 mcd output help spread light across a sign face, and the IP68 rating with cURus certification gives you peace of mind in demanding sign work. Each module measures 71.6 x 17.5 x 9.5mm, and the self-adhesive back plus a mounting ring for optional screw installation (#4 screws preferred) make the job fast and secure. You can link up to 50 modules in a row on the recommended 12V 60W power supply.

    These modules shine in storefront signs, channel letters, lightboxes for restaurants and cafés, menu boards, bar fronts, backlit logos and trade show displays. For outdoor signs, they must be installed inside a light box or channel letters, sheltered from the elements rather than exposed to rain and snow. For colour control, pair them with the E3-RF 3-in-1 RF LED controller and the recommended remote or wall panel. A smart choice for residential and commercial projects across Canada: order your set and bring your sign to life.

    79.97$

    How RGB modules work
    Each module is a small sealed unit holding 3 SMD5050 LEDs, and each 5050 chip combines red, green and blue. On their own, the modules do not change colour: an RGB controller sends the signal that mixes the three channels, producing an almost infinite number of colours, from deep blue to warm amber and everything in between. The set includes 50 modules that you link in a row to follow the shape and size of your sign cabinet or letters, for a uniform glow from one end to the other.

    Electrical and light output
    The modules run on 12V DC in constant voltage mode, with a working current of 60 mA and a consumption of 0.72W per module; the recommended wattage is 0.9W per module. Up to 50 modules can be linked in a row on the recommended 12V 60W power supply. Each module delivers 6,600 mcd with a wide 160° beam angle that helps spread light across translucent faces. Always use a 12V DC constant voltage power supply, and turn off the power before connecting or modifying a run of modules.

    Installation and protection
    Each module measures 71.6 x 17.5 x 9.5mm and comes with a self-adhesive backing and a mounting ring for optional screw installation, with #4 screws preferred. Clean and dry the mounting surface before sticking the modules, and add screws in sign cabinets exposed to vibration or temperature swings. The modules are IP68 rated and cURus certified; for outdoor signs, they must be sheltered inside a light box or channel letters, since they are not meant to be exposed to the elements. Refer to the technical sheet for the proper usage guidelines.

    Technical specifications
    SKU: RGBMODUR
    Brand: LED MONTREAL
    Quantity: set of 50 modules
    LED type: SMD5050, 3 per module
    Colour: RGB
    Voltage: 12V DC, constant voltage
    Working current: 60 mA per module
    Wattage: 0.72W per module (0.9W recommended)
    Luminous output: 6,600 mcd
    Beam angle: 160°
    Dimensions: 71.6 x 17.5 x 9.5mm
    Rating: IP68, cURus certified
    Maximum run: up to 50 modules on a 12V 60W power supply

    Applications and documentation
    Think of a pizzeria's lightbox sign that turns red and green for the holidays, channel letters for a Montréal boutique, a backlit logo in a dental clinic lobby, a bar front behind translucent panels, a trade show booth or a menu board in a Calgary café. With the E3-RF 3-in-1 RF LED controller, one remote can change the whole look. The technical sheet is available in the Documentation tab of this page.
