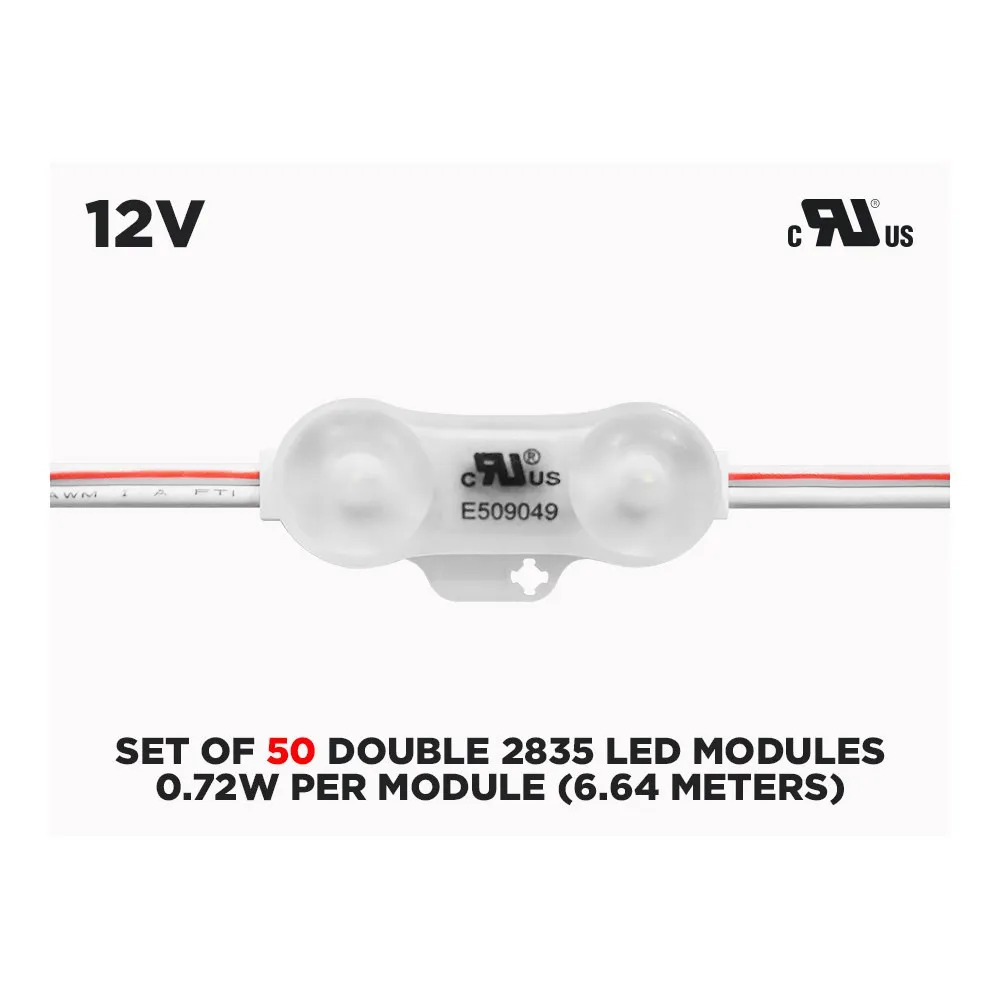

SET OF 50 DOUBLE 2835 LED SAMSUNG MODULES ( 0.72W PER MODULE )

Name: SET OF 50 DOUBLE 2835 LED SAMSUNG MODULES ( 0.72W PER MODULE )
Brand: LED MONTREAL
SKU: SAMMOD2-CW
Price: 52.97 CAD
Availability: InStock

SKU: SAMMOD2-CW

Brand: LED MONTREAL

Light up your sign, your channel letters or your light box with a steady, even glow that lasts: this set of 50 double 2835 LED Samsung modules from LED MONTREAL gives you a ready-to-run chain of injected, fully sealed LED modules linked by flexible wires. People look for these under many names — LED sign modules, 12V LED modules, backlight modules, module LED strings, or simply small LED light strips for signage — and they all describe the same workhorse: a chain of small rectangular pods, each holding two Samsung SMD 2835 chips, that you stick or screw inside a sign and wire to a 12V supply. They are made for illuminated advertising, single- or double-sided light boxes, backlit channel letters, lightweight logos, display cases and any flat cabinet where a continuous strip would be awkward but even light is a must.

Each module carries 2 Samsung SMD 2835 LEDs, draws 0.72W (1W recommended per module) and delivers 72 lm, running on 12V DC constant voltage. The lens spreads light at a wide 160° beam angle, so you get uniform illumination and far better application efficiency than bare LEDs — fewer hot spots, fewer dark bands between letters. Modules measure 43 x 15 x 11 mm with 90 mm of 18 AWG wire between them, and a maximum of 50 pieces can be run in a single row. Colour temperature is offered in 3000-3500K warm white or 6000-7000K cool white, and the SKU SAMMOD2-CW is the cool white version. They carry an iP68 rating, a UR (Underwriters Laboratories) certification and a working temperature range of -20 to 45 degrees, with a recommended sign depth of 6-15 cm.

These modules belong in sign shops, storefront windows, restaurant menu boards, gas station canopies, salon and boutique logos, real estate panels and trade-show displays — and because Canadian winters are hard on outdoor signage, the iP68 encapsulation and the -20 degree cold rating matter here. You can permanently install them outdoors when they sit inside an enclosed light box or channel letters. Mounting is quick: peel the included double-sided 3M tape or drive a screw through the module base. Pair the chain with any 12V DC constant-voltage power supply sized for your total load, plan your rows of 50 and you are ready to glow. Order your set of 50 double 2835 Samsung LED modules and give your sign the clean, even light it deserves.

Built to survive the job site and the weather
Each pod in this string is a robustly encapsulated LED module measuring 43 x 15 x 11 mm, moulded around two Samsung SMD 2835 chips and topped with an optical lens. The modules are joined by flexible 18 AWG wires with 90 mm between each unit, so you can bend the chain around the curves of a channel letter, follow the inside of a light box or step around a mounting stud. The full assembly is rated iP68, the highest level of sealing, which is why these 12V LED sign modules can live permanently outdoors inside an enclosed light box or letter can. The stated working temperature range is -20 to 45 degrees.

Light quality that fills the face of a sign
Two Samsung SMD 2835 LEDs per module produce 72 lm, and the lens spreads that output over a wide 160° beam angle. That wide spread is the whole point: it gives uniform illumination across the acrylic or vinyl face and delivers significantly better application efficiency than LEDs without lenses, so less light is trapped inside the cabinet. Colour temperature is available in 3000-3500K warm white for a soft, inviting look or 6000-7000K cool white for crisp, high-contrast graphics; this SKU is the cool white option. The recommended sign depth is 6-15 cm, which is the range where the beams overlap properly and you avoid visible dots or dark bands.

Technical specifications
SKU: SAMMOD2-CW
Brand: LED MONTREAL
LED type: Samsung SMD 2835
LED quantity per module: 2
Working voltage: 12V DC
Power: 0.72W per module
Recommended power: 1W per module
Luminous flux: 72 lm per module
Beam angle: 160°
Driving mode: constant voltage
Dimensions: 43 x 15 x 11 mm
Module length: 43 mm
Wire length between modules: 90 mm
Recommended depth: 6-15 cm
Wire gauge: 18 AWG
IP rating: iP68
Working temperature: -20 to 45 degrees
Certification: UR (Underwriters Laboratories)
Quantity: set of 50 modules

Wiring and installation
These are constant-voltage 12V DC modules, so they need a 12V DC power supply sized for the total wattage of the modules you connect, with headroom for a comfortable load. Respect the maximum of 50 modules in one row; if your project needs more, run additional rows fed in parallel from the supply rather than extending a single chain. Lay out your rows before you stick anything down, keeping the spacing consistent so the light stays even across the face. Fixing is simple: use the included double-sided 3M tape on a clean, dry surface, or screw the module base directly to the substrate when the sign will see vibration, heat or a long outdoor life. Feed the wire through grommets, keep connections inside the cabinet and give the supply its own ventilated space.

Where they earn their keep, and documentation
Sign makers use these backlight LED modules for storefront channel letters, double-sided blade signs, pylon cabinets, drive-thru menu boards, illuminated logos behind a reception desk, display cases, lightweight lettering in a boutique and trade-show panels. Contractors also reach for them when a flat cabinet or a tight cove makes a continuous LED strip hard to place. The complete technical PDF for this product is available in the Documentation tab of this page, with the full specification table for the set of 50 double 2835 Samsung LED modules — worth downloading before you calculate your rows and your power supply.
