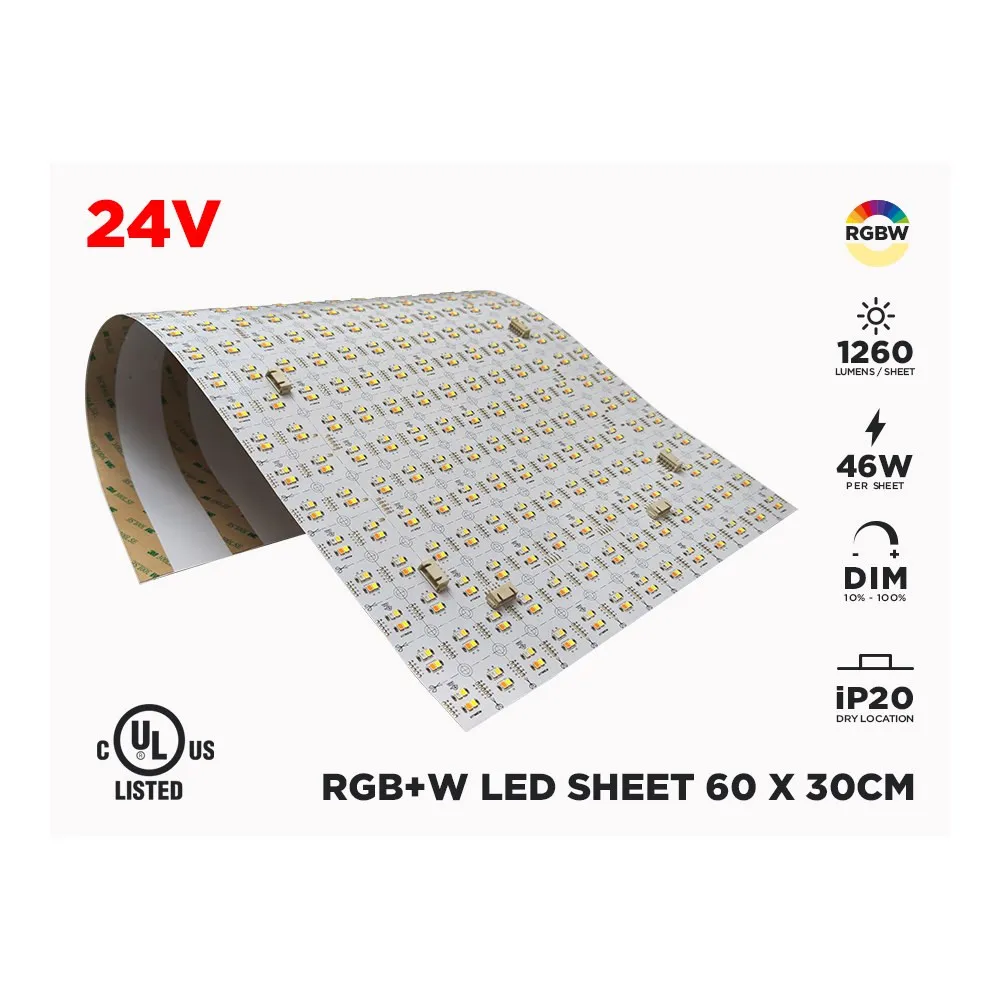

RGBW LED SHEET 60X30CM (46W PER SHEET)

Name: RGBW LED SHEET 60X30CM (46W PER SHEET)
Brand: LED MONTREAL
SKU: RGBWSHEET-6000
Price: 89.97 CAD
Availability: InStock

SKU: RGBWSHEET-6000

Brand: LED MONTREAL

Say goodbye to hot spots, shadow lines and bulky channels: the RGBW LED Sheet 60x30cm is a thin, flexible LED panel covered in a dense grid of chips that lights up like one smooth surface. People look for it under a lot of names — LED sheet, RGBW LED mat, colour-changing LED light strips in panel form, backlight sheet for signage — and it answers the same need every time: big, even, colour-changing light where there is almost no room to hide a fixture. Because it is cut from the same family as our indoor LED lighting and RGBW LED strip lights, it works with the same logic: stick it, power it, control it. Signage and lettering, backlit advertising displays, architectural coves, shelf and display backlighting, cabinetry, bar fronts, feature walls — anywhere you want a full wash of colour or a clean white glow instead of visible dots.

Each sheet measures 60.4 x 30.5 x 0.8 cm and packs 1248 LEDs per sheet using SMD 2835 chips, drawing 46 W per sheet on 24 V DC. Colour rendering is a true CRI 90+, so reds stay red and skin tones and printed graphics look right — a real difference on retail displays and photo walls. The dedicated white channel is available in 3000K, 4000K or 6000K, delivering 1210 lm at 3000K, 1230 lm at 4000K and 1260 lm at 6000K per metre at full intensity, while the RGB channels handle the colour work. The 120-degree beam angle spreads light fast for shallow cavities, the 2-ounce circuit board helps manage heat, and a 3M adhesive backing makes mounting straightforward. Sheets can be cut in segments of 25.16 mm x 23.46 mm to fit your shape, and dimming and colour changes are handled by an RGBW controller and remote control. Operating range: 40 C to -10 C. SKU RGBWSHEET-6000.

This sheet earns its place in boutiques and restaurants, reception desks, trade-show booths, home theatres, basement bars, kitchen bulkheads and games rooms — anywhere a Canadian renovation needs colour without a drop ceiling. Contractors like that it hides inside shallow light boxes and sign cabinets where a strip channel simply will not fit. Plan on a class 2 transformer rated at 48 W per sheet, plus an RGBW controller and remote; quick connectors are included, with 2 connectors to reach the controller (6 inches of wire) and 4 sheet-to-sheet jumpers. Download the technical PDF from the Documentation tab, then build your light box the easy way.

Built as one continuous surface
Instead of a single row of chips, the RGBW LED sheet arranges 1248 LEDs per sheet in a grid across a flexible board measuring 60.4 x 30.5 x 0.8 cm. That density is what kills the dotting effect you get when strips are mounted too close to a diffuser. The SMD 2835 chips each carry a distinct colour, so red, green, blue and white all reach full brightness rather than fighting for space on one package. The 2-ounce circuit board gives the sheet more copper to spread heat and current across its whole area, and the 3M adhesive backing lets you press it straight onto acrylic, aluminum or MDF inside a sign cabinet or light box.

Light quality and colour control
With CRI 90+, the white channel renders merchandise, artwork, printed vinyl and faces honestly — important when a display or a backlit menu has to look as good in person as it did on screen. The white is offered in 3000K, 4000K or 6000K, with a luminous flux per metre at full intensity of 1210 lm at 3000K, 1230 lm at 4000K and 1260 lm at 6000K. The RGB side handles saturated colour, scenes and fades, and the whole thing is dimmed and driven through an RGBW controller and remote control. The 120-degree beam angle means light opens up quickly, so you can keep the gap between the sheet and your diffuser shallow.

Technical specifications
SKU: RGBWSHEET-6000
Brand: CDNLUX
Voltage: 24V DC
Dimensions: 60.4 x 30.5 x 0.8 cm
Chip: SMD 2835
Circuit board: 2 ounces
CRI: 90+
White colour temperatures: 3000K, 4000K, 6000K
Luminous flux per metre at full intensity: 3000K: 1210 lm, 4000K: 1230 lm, 6000K: 1260 lm
LED density: 1248 LEDs/sheet
Beam angle: 120 degrees
Cut segments: 25.16 mm x 23.46 mm
Adhesive: 3M sticker
Power consumption: 46 W/sheet
Recommended transformer: 48 W/sheet, class 2 transformer required
Operating temperature: 40 C to -10 C
Dimming: RGBW controller and remote control

Wiring and installation
This is a low-voltage 24 V DC product, so every run has to come from a class 2 transformer sized at 48 W per sheet — multiply by the number of sheets in the project and choose your power supply accordingly. Signal passes through an RGBW controller placed between the transformer and the sheets. Quick connectors are included: 2 connectors with 6 inches of wire to reach the controller, and 4 sheet-to-sheet jumpers so panels can be chained side by side into a bigger lit surface. Need a custom shape? Cut along the marked segments of 25.16 mm x 23.46 mm only, clean and degrease the mounting surface before pressing the 3M adhesive down, and keep the sheet flat against its substrate for the best heat transfer. Respect the operating range of 40 C to -10 C and keep the assembly in a dry, indoor location.

Where it works and what comes with the page
Retail is the obvious home: backlit logos, channel letters, illuminated shelving, counter fronts and display cases in boutiques, pharmacies, dealerships and salons. At home, the same panel lights a bar front, a floating vanity toe-kick, a home cinema riser, a games room wall panel or a stair nosing detail behind frosted acrylic. Photographers and content studios use it as a soft, colour-tunable backdrop. Because installation depth is barely 0.8 cm, it slips into millwork and sign boxes that could never take a standard aluminum channel. The technical PDF for the RGBW LED sheet 60x30cm is available in the Documentation tab — download it to confirm dimensions, power figures and cut lines before you order your transformer and controller.
