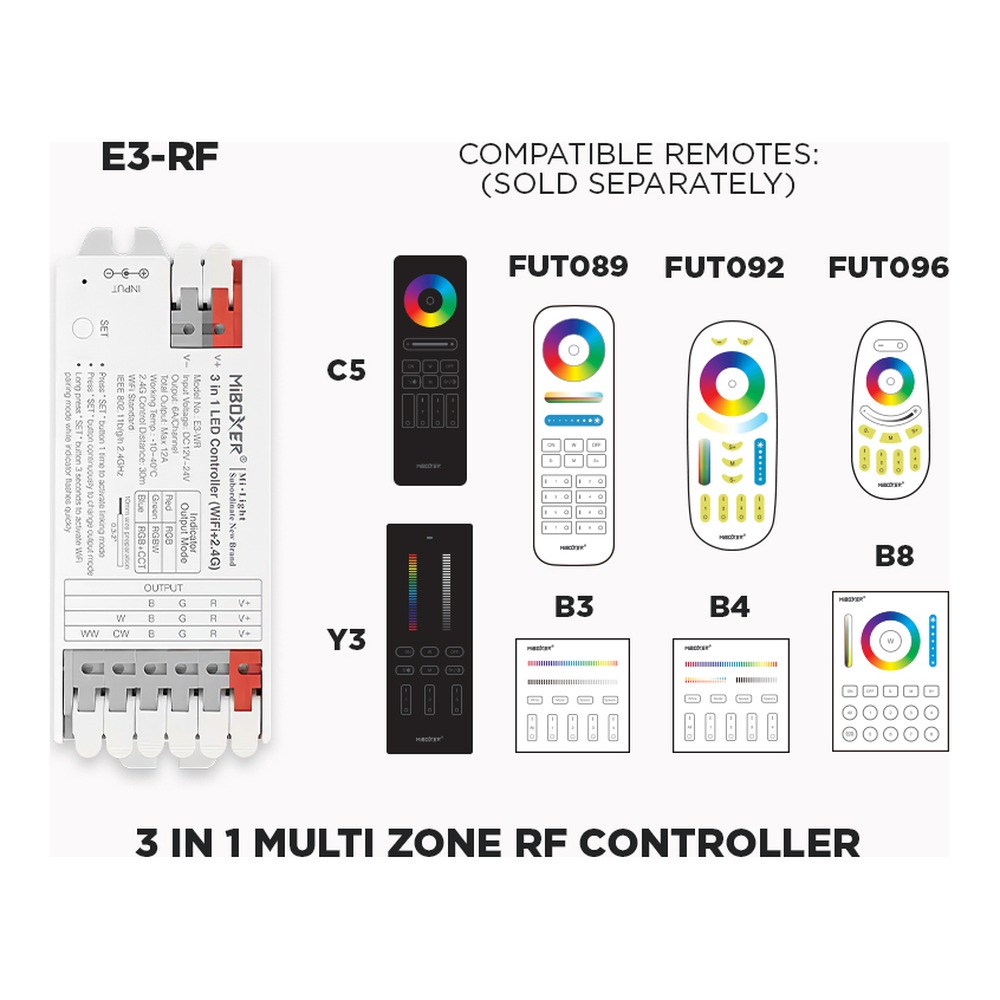

E3-RF 3 IN 1 RF LED CONTROLLER (RGB - RGB+W - RGB+CCT) 1 TO 8 ZONES SELF REPEATING

Name: E3-RF 3 IN 1 RF LED CONTROLLER (RGB - RGB+W - RGB+CCT) 1 TO 8 ZONES SELF REPEATING
Brand: LED MONTREAL
SKU: E3RF
Price: 27.97 CAD
Availability: InStock

SKU: E3RF

Brand: LED MONTREAL

Take full command of your colour-changing lighting with the E3-RF 3 in 1 RF LED controller from LED MONTREAL (SKU E3RF), a compact little brain that runs RGB, RGB+W and RGB+CCT LED strip lights from a single unit. People look for it under all sorts of names — RF LED controller, colour changing strip light controller, RGB receiver, multi-zone LED strip dimmer — and they all point to the same thing: one device that reads the signal from your remote and turns it into smooth colour, white tuning and dimming on your led strip lighting. Whether you are lighting a cove ceiling, a kitchen toe-kick, a basement bar, a retail display or a full colour-changing façade, this controller is the piece that makes the whole system obey you, zone by zone.

Built for real installations, the E3-RF accepts DC 12~24V input, so it drops into either a 12V or a 24V setup without any guesswork. It delivers 6A per channel with a total output of max 12A (4A at 24V or 5A at 12V to comply with Class 2 requirements), and uses a common anode output connection. The 2.4GHz RF link gives you a control distance of 30m and the unit is self repeating, so multiple controllers extend the signal through the room instead of fighting it — and you can run from 1 to 8 zones. It is rated iP20 for dry indoor locations, works from -10 to 40°C, and measures just 100.6mm x 40mm x 17.6mm so it hides inside a cabinet, a cove or a junction box. Wiring is tool-free: strip 10mm of conductor, insert, clip, done. Dual inputs — one DC barrel jack for plug-in power supplies and two clips for hardwired supplies — cover both ways of feeding the run.

Important: use it with a non-dimmable power supply. The controller handles all the dimming itself on the low-voltage side (12 or 24V), which is exactly why it behaves so smoothly. It shines in condos and renovated basements, under kitchen cabinets, in home theatres, gyms, restaurants, salons, boutiques and offices across Canada, where one remote can drive separate zones on separate floors. Ready to make your RGB LED strip project do what you want, when you want? Add the E3-RF to your setup and take control.

One controller, three types of LED strip
The E3-RF is a 3 in 1 receiver, which means it reads and drives RGB, RGB+W and RGB+CCT LED strip lights. Instead of stocking a different controller for every product, you keep one unit on the shelf and match it to whatever strip the project calls for: pure colour chasing for a games room, colour plus a dedicated white channel for a living room cove, or colour plus tunable white when the client wants warm relaxing light at night and crisp white for cleaning and working. The output connection is common anode, the standard wiring layout for this family of colour-changing strips, and the 3 in 1 architecture means the same unit can follow you from one job to the next.

RF control, zones and self repeating signal
Communication runs on 2.4GHz RF rather than infrared, so you do not need line of sight — the signal passes through cabinet doors, drywall and furniture, with a control distance of 30m. The system handles 1 to 8 zones, so a single remote can separate kitchen, island, dining area and hallway, or front window, shelving and counter in a boutique. Because the controller is self repeating, each additional unit in the installation helps relay the signal deeper into the building, which is a real advantage in long basements, open-plan commercial floors and multi-room residential jobs.

Technical specifications
Model No.: E3-RF
SKU: E3RF
Brand: LED MONTREAL
Compatibility: RGB + RGBW + RGBCCT
Input voltage: DC12~24V
Output: 6A / channel
Total output: Max 12A (4A at 24V or 5A at 12V to comply with Class 2 requirements)
RF: 2.4GHz
RF control distance: 30m
IP rating: iP20
Working temperature: -10~40°C
Output connection: Common anode
Dimensions: 100.6mm x 40mm x 17.6mm

Wiring and power supply
Installation was designed to be quick. The tool-free wiring system asks only that you strip 10mm of the conductor, insert it and clip it securely — no screwdriver, no loose terminal screws to chase later. Two inputs are provided: a DC barrel jack for plug-in power supplies and two clips for hardwired power supplies, so the same controller suits a plug-in desk or display application and a hardwired ceiling cove. Feed it with a non-dimmable power supply: the E3-RF performs the dimming itself on the low-voltage 12V or 24V side, so a dimmable driver is not required. Respect the output limits — 6A per channel and the Class 2 total output figures above — and split long runs across multiple controllers or additional power supplies when the load calls for it. The unit is iP20, so plan it for dry interior locations inside a cabinet, cove, ceiling chase or enclosure, and keep it within its -10~40°C working range.

Applications and documentation
Typical projects include kitchen under-cabinet and toe-kick accents, ceiling coves and tray ceilings, staircases, home theatres and basement bars, bedroom headboard lighting, as well as commercial work: restaurant and bar ambiance, retail shelving and window displays, salons, gyms, reception desks and event spaces where the colour needs to change with the mood. At only 100.6mm x 40mm x 17.6mm it tucks away almost anywhere, which keeps the finished job clean. The full technical spec sheet for the E3-RF is available in the Documentation tab of this page — consult it before wiring to confirm voltage, output limits and connection type for your own layout.

Technical Files
