Built in Canada from real extruded aluminumThe LUX4400 is an interior-grade
aluminum LED channel extruded from Alcoa 6063-T5, the alloy specifiers ask for when they want straight, stable lengths that machine and cut cleanly. Each piece arrives at 8 feet (2.44 m), long enough to cover most cabinet runs, cove details and shelf lines with fewer joints — and fewer joints means fewer visible seams in the finished light line. The U shape (surface) design is the workhorse of
LED strip lighting: an open channel that holds the tape straight, protects it from knocks and fingers during construction, and gives the installation a deliberate, architectural edge instead of a strip stuck to drywall.
Heat management that protects your stripAt 12.2 mm wide by 12.2 mm high, the LUX4400 is compact, but its enhanced height gives more interior volume around the tape for heat to move and dissipate through the aluminum body. That matters: LEDs are semiconductors, and the cooler they run, the better they hold their brightness and colour over the years. Never install high-output tape directly on wood, MDF or plastic — an
extruded aluminum profile like this one acts as a heat sink and is the single easiest thing you can do to protect your investment in quality
LED tape light.

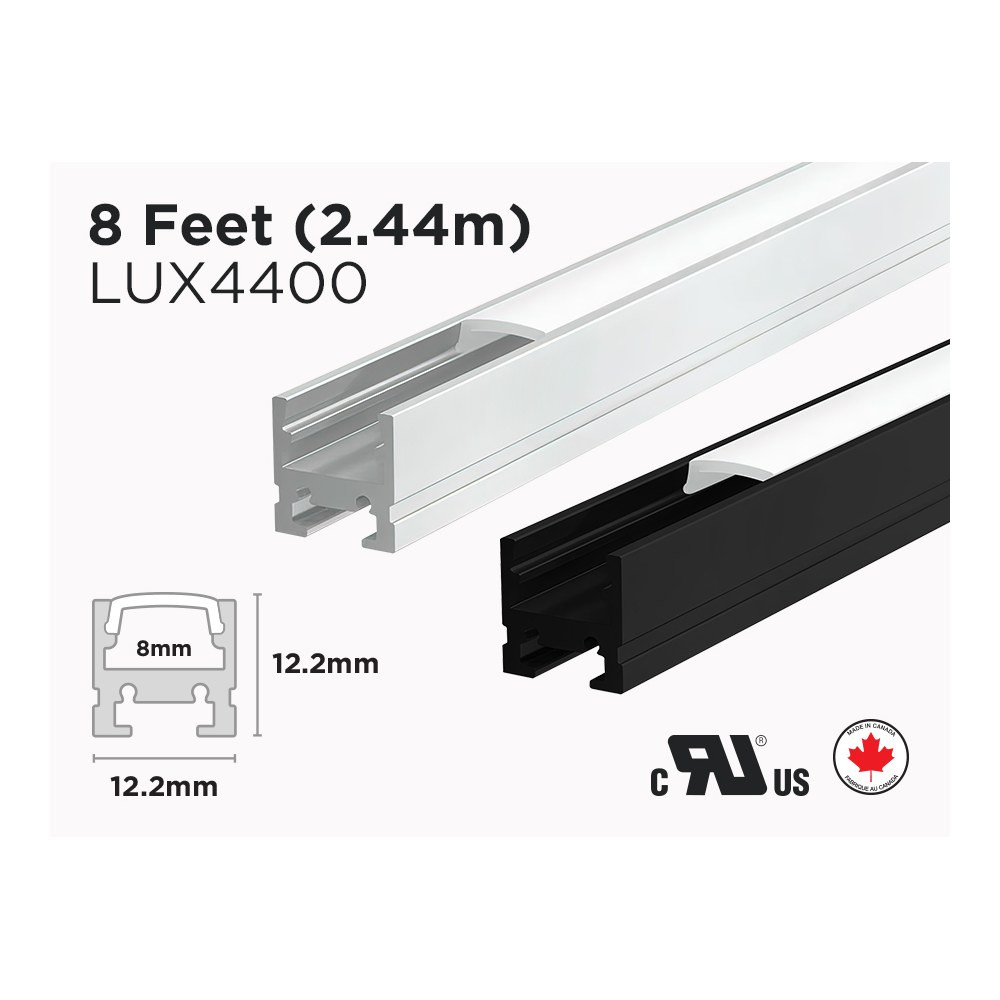

Technical specificationsModel: LUX4400
Type: U Shape (Surface)
Length: 8 Feet (2.44 m)
Width: 12.2 mm
Height: 12.2 mm
Interior width: 8 mm
Material: Alcoa 6063-T5 aluminum
Certification: cURus, conforms to UL standard 2108 for closet installations
Origin: Made in Canada
Compatibility and installationThe 8 mm interior width is matched to 8 mm COB tape, which is why the LUX4400 is the natural companion to the
COB8 24V IP20 8mm COB LED strip in white: the strip seats flat in the channel and delivers a continuous,
dotless line of light rather than a string of hot spots. Installation is straightforward surface mounting — position the channel, fasten it to the cabinet, ceiling, shelf or panel, clean the surface, then press the tape into the base. Cut the profile with a fine-tooth blade or a mitre saw for corners, keep your power feed at one end, and respect the strip manufacturer's maximum run length per feed so brightness stays even from end to end. Because it is a
UL 2108 closet-rated solution, it is a smart answer for wardrobes, pantries and linen closets where clearance rules apply.
Where it earns its keep — and what's in the Documentation tabThink kitchen upper and lower cabinets, floating shelves, bathroom vanity and mirror surrounds, basement and living room coves, stair treads, headboards, reception desks, retail display fixtures, bar fronts and the increasingly popular wood-slat feature walls where a slim light line runs between the panels. In offices and small businesses it replaces tired fluorescent under-shelf lighting with something quiet, modern and low energy. The technical PDF for the 8 feet interior aluminum U shape profile for LED strip (LUX4400) is available in the Documentation tab with the model, type, length, width and height — handy when you're building a millwork shop drawing or submitting to a designer. Measure your runs, add up your feet, and order the channel and the strip together so everything lines up on install day.
