10 FEET - 1.1 INCH WIDE ALUMINUM U SHAPE PROFILE FOR LED STRIP (LUX750)

Name: 10 FEET - 1.1 INCH WIDE ALUMINUM U SHAPE PROFILE FOR LED STRIP (LUX750)
Brand: LED MONTREAL
SKU: 10FLUX750
Price: 76.97 CAD
Availability: InStock

SKU: 10FLUX750

Brand: LED MONTREAL

Give your LED strips the finish they deserve with the 10 FEET - 1.1 INCH WIDE ALUMINUM U SHAPE PROFILE FOR LED STRIP (LUX750) from LED MONTREAL. Also called an aluminum extrusion, LED channel, extruded aluminum track or aluminum profile for LED strip, this surface-mount U shape channel turns a bare adhesive tape into a clean architectural line of light. It is the piece that hides the circuit board, protects the tape, spreads the beam and makes your LED strip lighting look like it was always part of the room — over kitchen cabinets, under a bulkhead, along a ceiling cove, on a stairwell wall or above a store display.

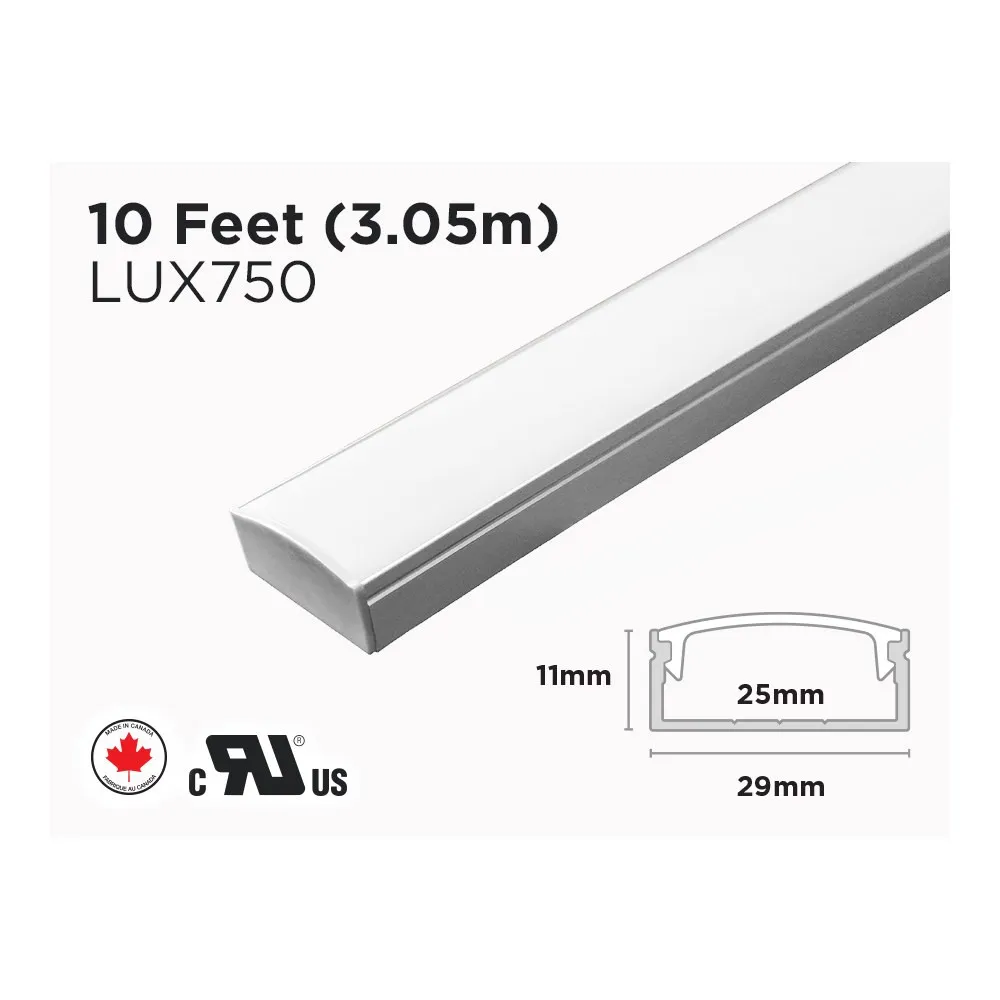

Model 10FLUX750 is a U Shape (Surface) profile measuring 10 feet (3.05 m) long, 29 mm wide and 11 mm high, with 25 mm of inside space — a generous channel that fits wide, high-output tapes instead of forcing you into a skinny cut. That extra width does two jobs: it gives your tape real heat dissipation through the aluminum body, which is exactly what high-output strips need to keep their brightness over time, and it gives the fixture a bold, deliberate look instead of a thin afterthought line. Two diffuser options are available, including the Opaline diffuser, which creates a continuous no-dot effect with strips of 120 LEDs per meter or more and completely hides the tape when the light is off. This LED profile is made in Canada.

Contractors reach for this 10-foot length on long runs — condo ceiling coves, restaurant bars, office reception walls, retail shelving, garage and workshop benches — because fewer joints mean fewer visible seams. Homeowners love it for living rooms, home theatres, kitchens and basements where the light line is part of the decor. It suits residential and commercial projects alike, and if your run is shorter or your vehicle is not, the 8 feet - 1.1 inch wide aluminum U shape profile for LED strip (LUX750) is the same family in a shorter cut. Please note this product is available at our service counter only — because of its size, it cannot be sent by mail. Plan your run, pick your diffuser and give your strip lighting a finished look.

Built to carry and protect your LED tape
The LUX750 is an extruded aluminum U shape channel designed for surface mounting: you fasten the body to the surface, drop the LED strip inside, then snap the diffuser on top. Aluminum is the material of choice for LED strip lights because it acts as a heatsink — the tape transfers its heat into the extrusion instead of cooking itself, and cooler LEDs hold their output and colour far longer. The channel also shields the circuit board from dust, fingers and accidental knocks, which matters a lot in kitchens, garages, workshops and commercial spaces where a bare adhesive tape would not survive long.

Technical specifications
Model: 10FLUX750
Type: U Shape (Surface)
Length: 10 Feet (3.05m)
Width: 29mm
Height: 11mm
Inside space: 25 mm
Brand: LED MONTREAL
Made in: Canada

Light quality and diffusers
With 25 mm of usable interior width, this aluminum extrusion accepts wide, high-output tapes and lets the beam open up instead of being pinched into a narrow slot. Two diffusers are offered so you can choose the look you want. The Opaline diffuser is the one to pick when you want a perfectly continuous line with no visible dots: paired with a strip of 120 LEDs per meter or more, it blends the individual diodes into one smooth glow, and when the light is off it hides the tape completely, so all anyone sees is a clean band of white. That is what separates a professional installation from a strip stuck to a shelf.

Installation and planning
Measure your run first and lay out your 10-foot (3.05 m) sections end to end; using the longest piece possible keeps the number of joints down and keeps the line looking seamless. Cut the extrusion to length with a fine-tooth blade or a mitre saw, deburr the edges, and remember to leave yourself an exit point for the power lead at the driver end. Because the body is 29 mm wide and 11 mm high, check your available reveal or shelf lip before ordering, especially inside cabinets or under a bulkhead where clearance is tight. Always respect your LED strip's own voltage and wiring instructions, and follow the Canadian Electrical Code and local requirements for the driver and connections.

Where it works and what goes with it
Cove and ceiling perimeter lighting, under-cabinet and over-cabinet runs in kitchens, bar fronts and back bars, retail shelving and display cases, reception desks, home theatre risers, stairwells, closets, workbenches and garage lighting — anywhere you want a continuous line rather than individual points. Need a shorter cut for a small kitchen island or a single shelf? The 8 feet - 1.1 inch wide aluminum U shape profile for LED strip (LUX750) is the same LUX750 design in a shorter length, so you can mix both on the same project and keep a consistent look. The technical PDF for SKU 10FLUX750 is available in the Documentation tab with the full dimensions for your shop drawings. Reminder: this length is available at our service counter only and cannot be shipped by mail.

Technical Files
