4" LUNA LED SQUARE GIMBAL RECESSED FIXTURE - RA4S-12G-DTW-90BN

Name: 4" LUNA LED SQUARE GIMBAL RECESSED FIXTURE - RA4S-12G-DTW-90BN
Brand: LITELINE
SKU: RA4S-12G-DTW-90BN
Price: 81.97 CAD
Availability: InStock

SKU: RA4S-12G-DTW-90BN

Brand: LITELINE

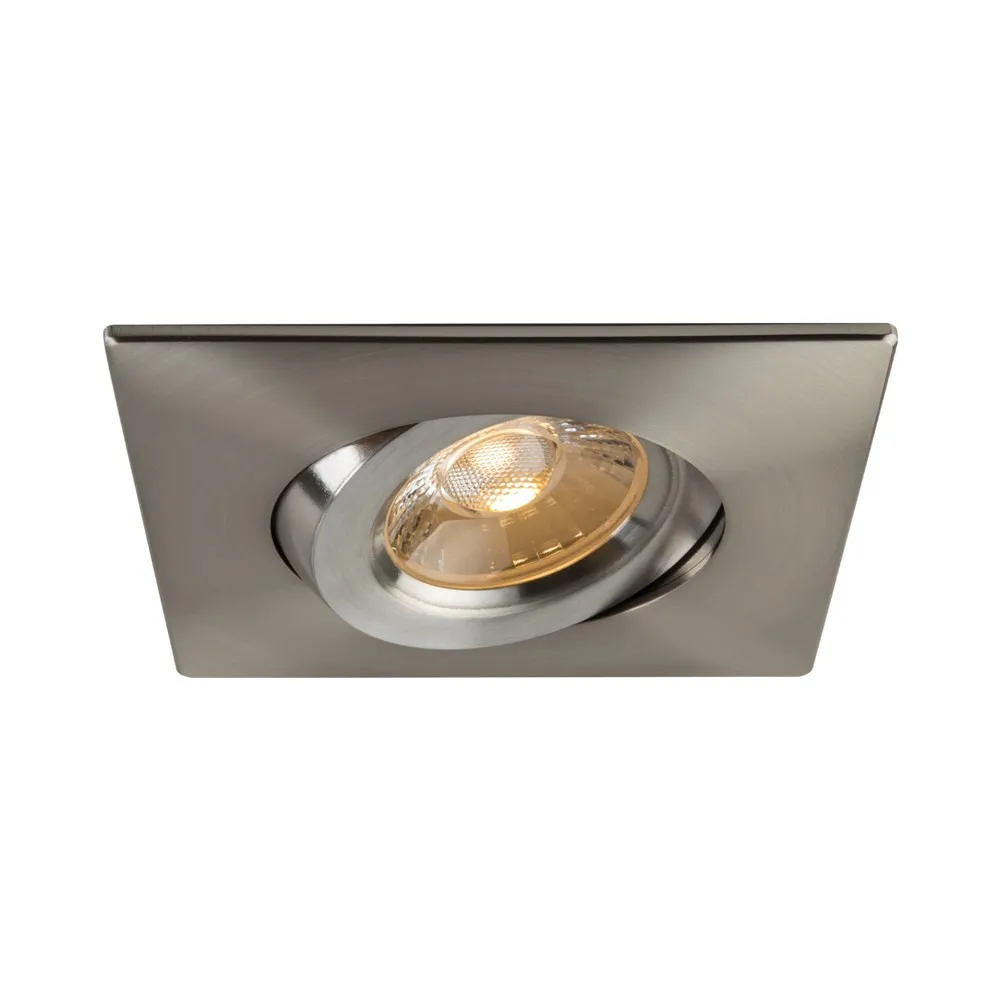

Give any room that clean, built-in glow you can actually aim exactly where you want it: the 4" LUNA LED Square Gimbal Recessed Fixture RA4S-12G-DTW-90BN is a square recessed light — what most people call a square pot light or square downlight — with a tilting gimbal that lets you point the beam at a feature wall, a piece of art, a kitchen island or a shower niche. The brushed nickel trim keeps the ceiling looking crisp and modern, while the adjustable head does the heavy lifting: no more fixed beams landing in the wrong spot. It's a retrofit-friendly LED recessed fixture built for both homes and businesses, and it drops into a single round hole, so you get a square look without cutting a square opening.

Inside the durable airtight aluminum body you'll find a 12 watt LED module producing up to 1035 lumens at 92 lumens per watt, with a typical CRI of 90 so skin tones, wood grain, paint colours and merchandise all look true. The warm 3000 K colour temperature suits living spaces and hospitality alike, and the lens delivers a 40° beam spread with a gimbal that tilts 20°. It dims smoothly from 100% down to 10% on standard TRIAC/ELV dimmers, runs on 100-135V AC 60Hz with a 300mA dimmable Class II electronic driver, and carries a 0.95 power factor. An anodized blue heat sink keeps the LED cool for a projected life of 70% at 50,000 hours, backed by a lifetime warranty. It's cETLus certified, Energy Star listed, LM79 and LM80 tested, suitable for wet locations and approved for direct contact with insulation, with an operating range of -20°C~40°C.

This is the kind of fixture that works everywhere in a Canadian home or storefront: kitchens, hallways, bedrooms, finished basements, covered porches and even showers thanks to the wet location rating, plus retail displays, offices, clinics and restaurants. The Ø 4 3⁄16" (106mm) hole cut and two spring-loaded clips make ceiling installs quick, and three quick connect push-in terminals speed up the wiring. Want the same fixture in another finish or a deeper look? Compare it with the 4" Luna LED square gimbal recessed fixture RA4S-12G-DTW-90BK, the 4" Luna LED square gimbal recessed fixture RA4S-12G-90BN or the regressed 4" Luna LED square regressed gimbal recessed fixture RA4S-12RG-90BN. Plan your layout and order your RA4S-12G-DTW-90BN today.

Built to last, built to aim
The LUNA™ square gimbal starts with a durable airtight aluminum body and an adjustable gimbal that tilts 20°, so you can wash a wall, highlight cabinetry or angle light away from a TV screen. An anodized blue heat sink sits behind the LED module to maximize airflow and keep junction temperatures in check — that's what protects colour consistency and lumen output over the years. The square brushed nickel trim (finish code BN) gives the architectural, flush look designers love, while the fixture itself measures 4 15⁄16" (125mm) across the trim, 3 3⁄8" (85mm) deep and 1 5⁄16" (34mm) at the profile, with a compact 2" (51mm) dimension noted on the drawing.

Light quality you can see
The 12 watt LED module maintains uniform intensity and produces up to 1035 lumens, a strong 92 lumens per watt. A typical CRI of 90 means colours are rendered honestly — critical in kitchens, bathrooms, boutiques and galleries where washed-out light ruins the effect. The 3000 K colour temperature lands in that comfortable warm-white zone that flatters wood, stone and warm paint palettes, and the lens shapes a controlled 40° beam spread for accenting rather than flooding. Because it's an LED recessed downlight, you get that output while drawing only 12W, a dramatic drop compared with old halogen pot lights.

Technical specifications
Application: Ceiling Recess Mount
Approved Location: Wet / Insulated Ceilings
Wattage: 12W
Lumens: 1035
Lumens per Watt: 92
CCT: 3000 K
CRI: 90
Beam Angle: 40°
Input: 100-135V AC, 60Hz
Dimming: Yes, 100%-10%
Dimming Tech: TRIAC/ELV
Power Factor: 0.95
Hole Cut: Ø 4 3⁄16" (106mm)
Class II: Yes
Certification: cETLus
Energy Star: Yes
LM79 / LM80: Yes
Projected Life: 70% @ 50,000 hrs
Operating Temperature: -20°C~40°C (-4°F~104°F)
Warranty: Lifetime

Wiring and installation
The extruded aluminum hardwire box houses a 300mA dimmable Class II electronic driver and connects to the fixture with an 18" (457mm) FT6 rated cable fitted with a DC 2.1 connector — approved for use in plenums and suspended ceilings. Three quick connect push-in terminals make wiring fast on site, and two spring-loaded clips let the fixture attach to virtually any ceiling material. Cut a Ø 4 3⁄16" (106mm) hole, tuck the driver box into the cavity, click, push and you're done. Since it's approved for direct contact with insulation and rated for wet locations, it's a safe pick for insulated attics, soffits, covered entries and shower ceilings. For dimming, pair it with industry standard TRIAC/ELV dimmers.

Where it works and what's documented
Think whole-home lighting plans: kitchen perimeters, hallway runs, stairwell accents, basement rec rooms and bathroom ceilings — plus commercial jobs like cafés, salons, dental offices and retail displays where aimable 3000 K accent light sells the space. Matching a whole project is easy across the family: see the 4" Luna LED square gimbal recessed fixture RA4S-12G-90WH, the 4" Luna LED square gimbal recessed fixture RA4S-12G-DTW-90WH or the 4" Luna LED square regressed gimbal recessed fixture RA4S-12RG-90WH for a deeper-set aperture. The full technical PDF spec sheet for RA4S-12G-DTW-90BN is available in the Documentation tab with dimensions, the ordering guide and the list of accessories (sold separately).
