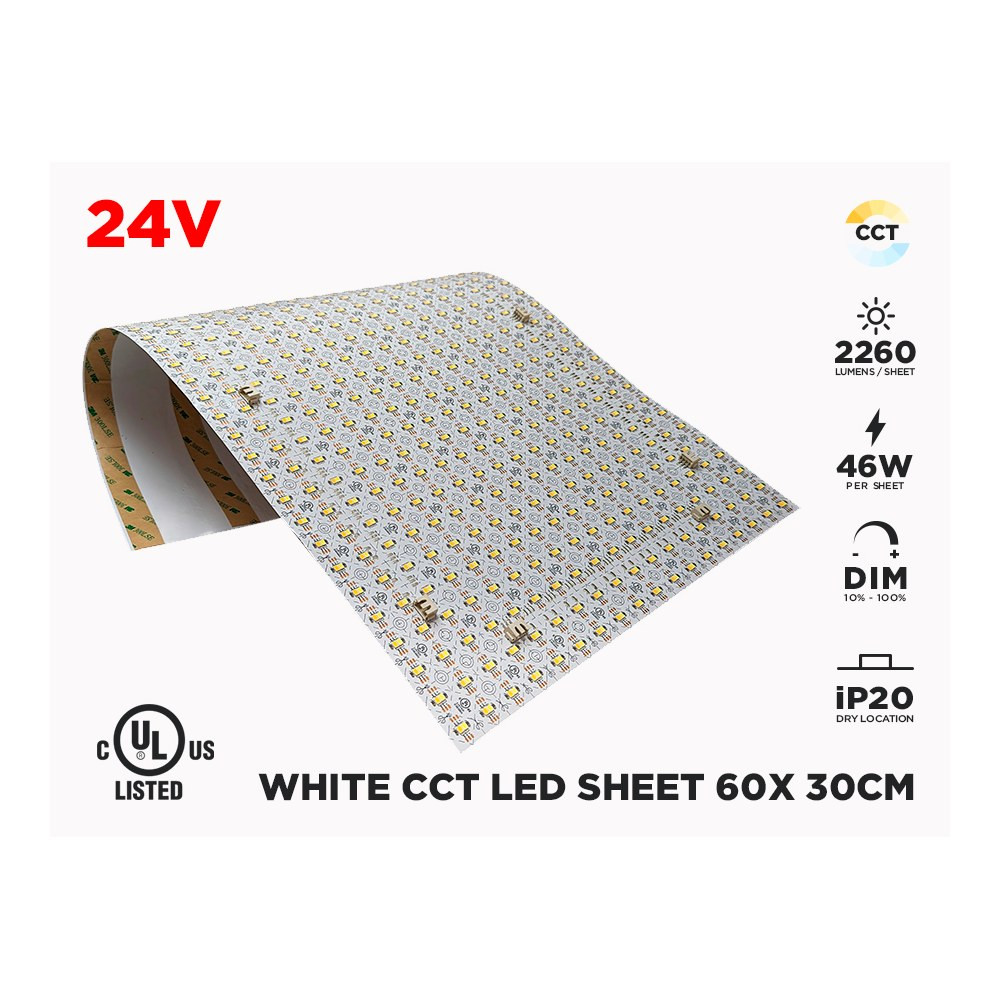

WARM WHITE TO COOL WHITE ADJUSTABLE LED SHEET 60X30CM (46W PER SHEET)

Name: WARM WHITE TO COOL WHITE ADJUSTABLE LED SHEET 60X30CM (46W PER SHEET)
Brand: LED MONTREAL
SKU: CCTSHEET
Price: 79.97 CAD
Availability: InStock

SKU: CCTSHEET

Brand: LED MONTREAL

Say goodbye to bulky fixtures and hello to a perfectly even wall of light. The Warm White to Cool White Adjustable LED Sheet 60x30cm from LED MONTREAL is a thin, flexible LED panel made of a dense grid of chips that lights up an entire surface without hot spots, dark bands or visible dots. People look for it under many names — LED sheet, CCT adjustable LED panel, flexible backlight sheet, or simply a giant LED light strip alternative — and it does what ordinary indoor LED strip lights cannot: it fills a whole plane with smooth, uniform brightness. It was made for signage, lightboxes, advertising displays, backlit menus, retail graphics and architectural lighting where installation depth is limited and every millimetre counts.

This sheet runs on 24V DC and draws 46W per sheet, with 1296 LEDs per sheet using SMD 2835 chips on a 2-ounce circuit board for solid current flow and heat management. The tunable white range covers 2700K to 6500K, so you glide from cozy warm white to crisp daylight with the included CCT adjustable controller and remote. Output is generous: 2030 lm at 2700K, 2100 lm at 3000K, 2190 lm at 4000K and 2260 lm at 6500K per metre at full intensity, all rendered with a CRI 90+ that keeps printed colours, fabrics and skin tones true. Measuring 60.4 x 30.2 x 0.8 cm with a 120-degree beam angle, it stays slim enough to slip into shallow cavities, and the 3M adhesive backing sticks it down in seconds. It can be cut to size in 16.77 mm x 16.77 mm segments, and quick connectors are included to link a sheet to the controller or to join two sheets together.

Homeowners use it for backlit mirrors, floating ceilings, coves, niches, toe-kicks and stair details; contractors and shop owners use it inside lightboxes, display cases, reception logos, restaurant menu boards and window graphics. Across Canada, tunable white is a real advantage — warm and cozy through long winter evenings, bright and neutral for daytime workspaces. Keep in mind it must be powered by a class 2 transformer rated for 48W per sheet, and operating temperature runs from 40 C to -10 C. Order the CCTSHEET LED sheet and give your next project a flawless, wall-to-wall glow.

A different kind of LED lighting
Where a standard LED tape lights a line, this sheet lights a surface. Its 1296 LEDs per sheet are arranged in a tight grid on a flexible board, so the light leaves the sheet as one continuous plane instead of a row of visible points. That is exactly what backlighting demands: put it behind an acrylic or fabric face and you get an even glow edge to edge, even when the gap between the sheet and the diffuser is very shallow. At only 0.8 cm thick, the flexible LED panel tucks into slim lightboxes, false ceilings, cabinet backs and display cases that could never fit a conventional fixture.

Light quality and tunable white
The SMD 2835 chips deliver two distinct whites that mix on command, giving you the full 2700K to 6500K range from a warm, welcoming tone to a bright, crisp daylight. A CRI 90+ rating means reds stay red and printed artwork looks like the proof, which matters enormously for retail signage, art niches, makeup mirrors and merchandise displays. The 120-degree beam angle spreads light widely for short-distance backlighting, and luminous flux per metre at full intensity reaches 2030 lm at 2700K, 2100 lm at 3000K, 2190 lm at 4000K and 2260 lm at 6500K. Colour temperature and intensity are managed through the included CCT adjustable controller and remote control.

Technical specifications
SKU: CCTSHEET
Brand: LED MONTREAL
Voltage: 24V DC
Dimensions: 60.4 x 30.2 x 0.8 cm
Chip: SMD 2835
Circuit board: 2 ounces
CRI: 90+
Colour temperature: 2700K to 6500K
Luminous flux/m at full intensity: 2700K: 2030 lm, 3000K: 2100 lm, 4000K: 2190 lm, 6500K: 2260 lm
LED density: 1296 LEDs/sheet
Beam angle: 120 degrees
Cutting segments: 16.77 mm x 16.77 mm
Adhesive: 3M sticker
Power consumption: 46W/sheet
Recommended transformer: 48W/sheet, must be powered by a class 2 transformer
Operating temperature: 40 C to -10 C
Dimmable: CCT adjustable controller and remote control
Heat dissipation: recommended but not necessary

Installation and electrical notes
Plan the layout first, then cut: the sheet is designed to be trimmed in 16.77 mm x 16.77 mm segments, which lets you shape it around a logo, a circular sign face or an irregular niche without wasting material. Peel the 3M backing and press it onto a clean, dry, flat surface; the quick connectors included make it simple to link the sheet to the controller or to bridge two sheets in a larger layout. Power comes from a class 2 transformer sized for 48W per sheet at 24V DC — size your driver for the total number of sheets in the run and keep wire runs short to avoid voltage drop. Mounting on an aluminum surface or profile for heat dissipation is recommended but not necessary, and the operating range of 40 C to -10 C covers typical indoor conditions.

Where it shines and what comes with it
Think illuminated storefront signs and channel letters, backlit bar counters, translucent stone or onyx panels, restaurant menu boards, trade show booths, reception desk logos, backlit bathroom mirrors, cove and soffit details, closet and pantry interiors, and photo or product shooting tables where even, high-CRI light is non-negotiable. In renovation work it is a lifesaver whenever the ceiling or millwork cavity is too shallow for a recessed fixture. The full technical PDF for the Warm White to Cool White Adjustable LED Sheet is available in the Documentation tab of this page, with every dimension, electrical value and cutting detail you need before you order your CCT adjustable LED sheet and its transformer.
