LUTRON PICO REMOTE FOR CASETA WIRELESS DIMMERS – WHITE

Name: LUTRON PICO REMOTE FOR CASETA WIRELESS DIMMERS – WHITE
Brand: LEDCO
SKU: LCDIM-CASET-PICO
Price: 33.97 CAD
Availability: InStock

SKU: LCDIM-CASET-PICO

Brand: LEDCO

Add a second switch anywhere you want one — without opening a single wall. The Pico wireless control (SKU LCDIM-CASET-PICO) is the battery-powered remote for Caséta wireless dimmers and switches, the little white keypad people search for as a dimmer switch with remote, a 3 way switch remote or simply a remote for smart dimmers. It talks straight to your compatible wireless dimmer, so you create a virtual three-way or four-way arrangement at the top of the stairs, at the far end of a hallway, beside the bed or on the coffee table — no fishing cable through finished drywall, no travellers, no drilling into a plaster ceiling.

Everything about it is deliberately simple. Buttons for on, off, raise and lower make it obvious for family, guests and staff, and a favourite level can be recalled with one press, so the room comes back exactly the way you like it. Paired with a compatible dimmer, the dimming is smooth and flicker-free from bright task light down to a soft evening glow. It runs on 3 V from one included CR2032 battery with a 10 year battery life (based on a 1 year shelf life, an average of 10 button presses per day and an ambient temperature of 86 °F / 30 °C), and communicates by radio frequency at 431 MHz to 437 MHz with a range of 30 ft (9 m) through walls and 60 ft (18 m) line-of-sight. The control measures 2.6 in (66 mm) by 1.28 in (33 mm) by 0.33 in (8 mm), is cULus, FCC Certified (U.S.A.) and IC Certified (Canada), and is built for indoor use from 32 °F to 140 °F (0 °C to 60 °C).

Use it as a handheld remote, clip it to a wall bracket so it reads like a standard switch, or drop it into a tabletop pedestal beside the sofa (faceplate adapter kit, car visor clip and table top pedestal sold separately). It's a favourite in Québec and Ontario renovations where the switch ended up on the wrong side of the door, and just as useful in offices, clinics and retail floors. It is made to control Caséta LED dimmer 150W, the Caséta 6A 3-way wireless switch and the Caséta starter kit. Add your extra control point today.

Compatible with
Works with:
Dimmer: LCDIM-CASET-DIMMER, LCDIM-CASET-SWITCH, LCDIM-CASET-STARTKIT

What it is and how it works
The Pico wireless control is a flexible, battery-operated device that lets you control compatible wireless load-control devices from anywhere in the space — no external power and no communication wiring. That single sentence is what makes it so popular in retrofits: instead of running a traveller wire for a three-way, you mount a remote where you wish the switch had been. It communicates using radio frequency (RF) at 431 MHz to 437 MHz, and thousands of system addresses prevent interference between neighbouring systems, so your neighbour's remote never touches your lights.

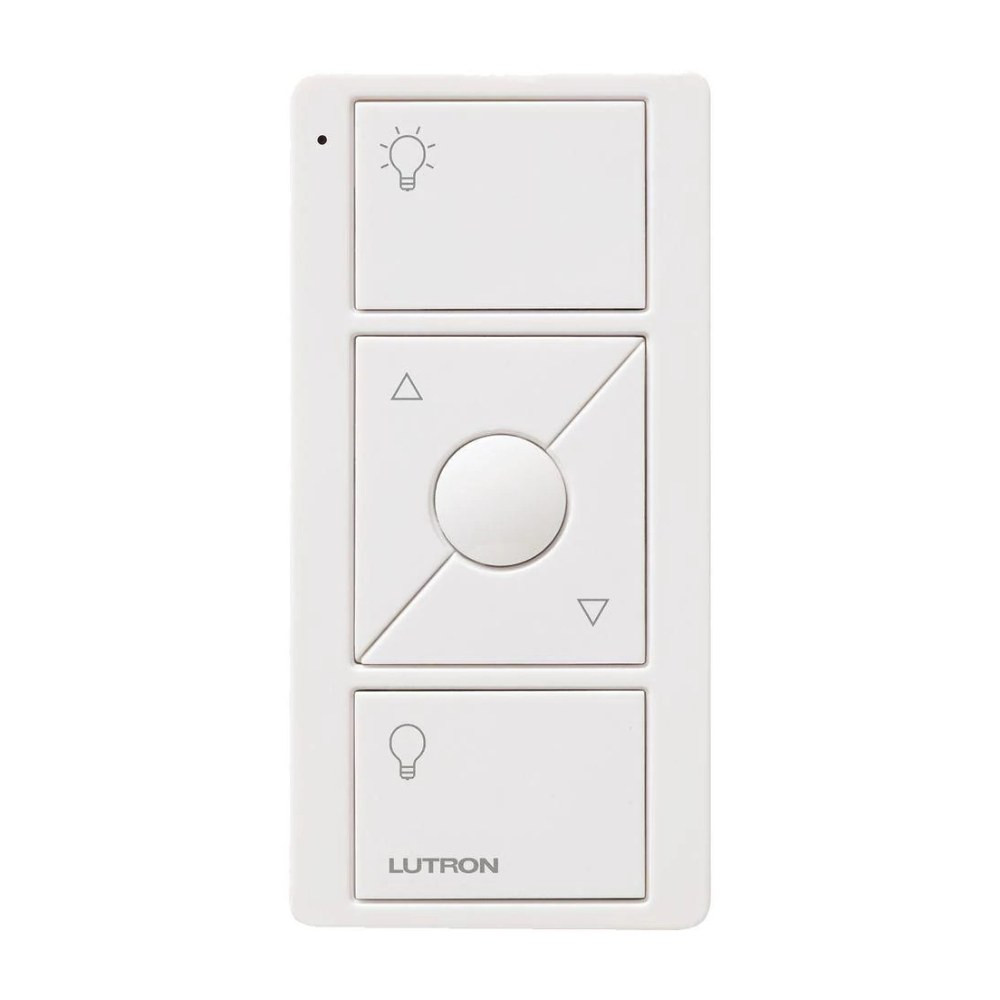

Buttons and operation
Configurations include 2 Button Controls (2B) and 2 Button Controls with Raise/Lower (2BRL). On a lights model, the ON button brightens lights to full intensity, RAISE increases intensity, LOWER decreases intensity and OFF dims the lights off — intuitive enough that nobody needs a manual. Button marking options are also offered for appliances, screens and shades, and the control can be assigned to blinds, curtains or lighting devices within its range. In GRAFIK Eye QS wireless applications it can even be configured as a scene or zone control.

Technical specifications
SKU: LCDIM-CASET-PICO
Operating voltage: 3 V
Battery: (1) CR2032 included
Battery life: 10 years (1 year shelf life, 10 button presses per day, 86 °F / 30 °C ambient)
RF frequency: 431 MHz to 437 MHz
Range: 30 ft (9 m) through walls, 60 ft (18 m) line-of-sight
Dimensions: 2.6 in (66 mm) x 1.28 in (33 mm) x 0.33 in (8 mm)
Ambient operating temperature: 32 °F to 140 °F (0 °C to 60 °C)
Humidity: maximum 90% non-condensing
Use: indoor use only
Approvals: cULus, FCC Certified (U.S.A.), IC Certified (Canada), COFETEL (Mexico), SUTEL (Costa Rica), Anatel (Brazil); quality systems registered to ISO 9001:2015
Finishes offered: Gloss and Satin Colors

Compatibility and mounting
Beyond Caséta Wireless controls, the Pico wireless control provides control for Maestro Wireless controls, PowPak modules, RadioRA 2 systems, GRAFIK Eye QS wireless systems, HomeWorks QS wireless systems, Sivoia QS wireless systems, Serena RF remote control shades, and Energi Savr Node, Quantum and myRoom systems through a QS sensor module (QSM). It reconfigures easily as a handheld remote, a wall-mount control with or without faceplate (faceplate adapter kit sold separately), a car visor control (clip sold separately) or a table top control (pedestal sold separately). One important installation note: all RF devices should be mounted on nonmetallic surfaces for proper performance — if you must mount to metal, the PICO-MOUNT-1-XX-CPN6774 is required. Pair the remote with its dimmer first, then test from the far corner of the room.

Where it pays off, and the paperwork
Think open-concept living rooms where the only switch is by the front door, a two-storey stairwell, a primary bedroom, a basement rec room, or a clinic waiting area where reception needs to drop the light level without walking across the floor. Contractors use it to deliver a three-way or four-way feel in a finished home in minutes. Build the system around the Caséta LED dimmer 150W, the Caséta 6A 3-way wireless switch, or start with the Caséta starter kit; for a wired-only room, a classic Diva LED dimmer 150W remains a solid choice. The full technical spec sheet is available in the Documentation tab for your submittals and job files. Limited warranty applies.
