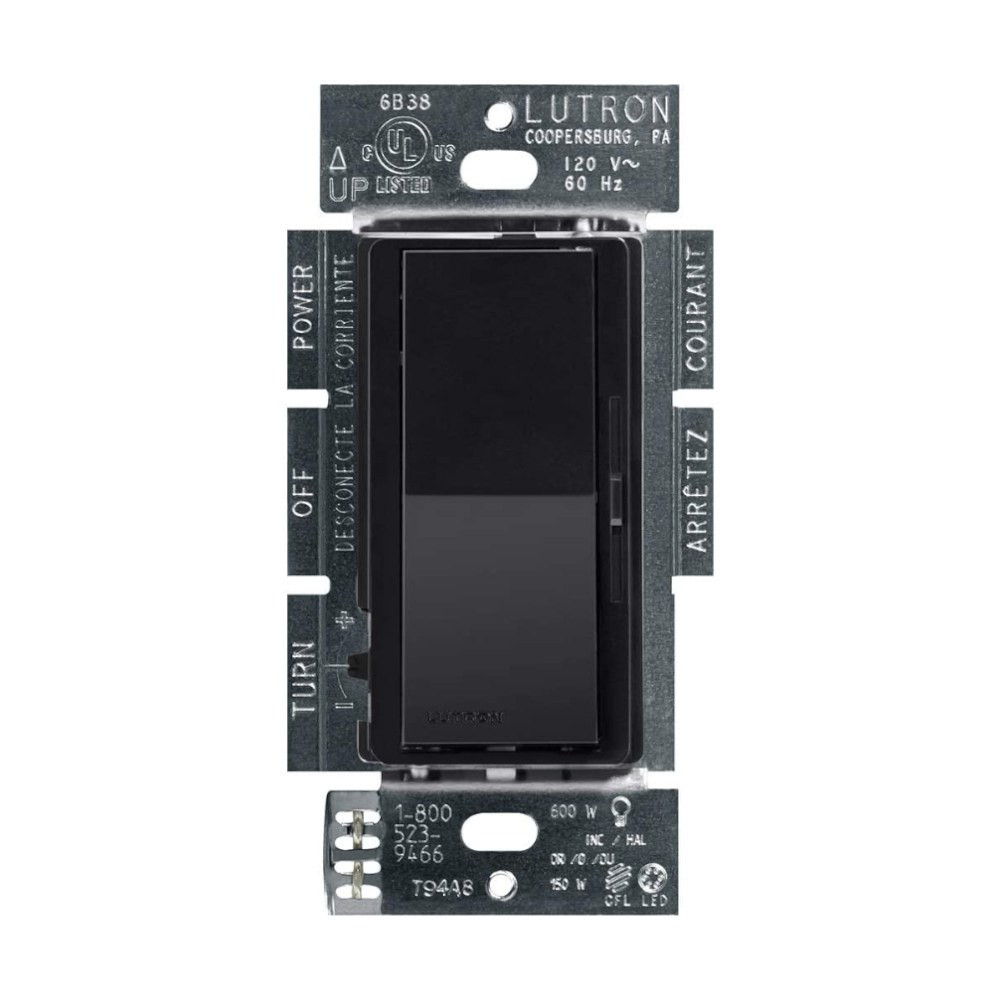

LUTRON DIVA LED DIMMER - 150W - LCDIM-LUDIVBK-120V

Name: LUTRON DIVA LED DIMMER - 150W - LCDIM-LUDIVBK-120V
Brand: LEDCO
SKU: LCDIM-LUDIVBK-120V
Price: 46.97 CAD
Availability: InStock

SKU: LCDIM-LUDIVBK-120V

Brand: LEDCO

Tired of lights that flicker, buzz or refuse to dim below half? Meet the Diva LED+ dimmer, the LED dimmer switch built for the bulbs and fixtures you actually buy today. Known on the job site as a paddle dimmer, a slide dimmer or simply a light dimmer switch, this wallbox control (SKU LCDIM-LUDIVBK-120V) pairs a large rocker paddle with a discreet captive linear slider along the side: press the paddle to switch the lights on at your preset level and off, nudge the slider when you want brighter or softer. It is made to dim LED, CFL, halogen and incandescent bulbs, so one control handles a whole mix of rooms, from a pot light layout in the basement to a chandelier in the dining room.

The numbers are straightforward. This is a 120 V~ 60 Hz control rated for 150 W of dimmable LED or CFL, or 600 W of incandescent or halogen, or 250 W of Lutron LTEA Hi-lume 1% forward-phase LED driver (maximum 6 drivers). A low-end adjustment lets you tune the bottom of the dimming range to the bulbs you installed, so you get a real fade instead of a drop-out, and power-failure memory brings your level back after an outage. It measures 4.69 in (119 mm) by 2.75 in (70 mm), sits in a standard designer wallplate opening and needs a U.S. wallbox 2 in (64 mm) deep minimum. It is UL Listed to US and Canadian safety requirements (UL1472 / CSA C22.2 184.1), NOM approved, 100% factory tested, includes a mechanical air-gap switch to disconnect load power, and is backed by a 1 Year Limited Warranty.

It belongs anywhere you want control without complication: living rooms, bedrooms, hallways and kitchens in a renovation, plus offices, clinics, salons and restaurants that want daytime levels dialled down. Single pole or 3-way wiring is supported (for 3-way and 4-way switching, use Claro switches or other mechanical switches), it is for indoor use only and operates from 0 °C to 40 °C, which suits Canadian homes year-round. Prefer a rocker-style face? Compare it with the Lutron Skylark LED dimmer 150W, or go wireless with the Lutron Caseta LED dimmer 150W. Add it to your order and finally get the smooth, quiet dimming your LEDs were supposed to give you.

Built for today's light sources
Older dimmers were designed around incandescent and halogen filaments, which is exactly why they misbehave with modern drivers: flicker, hum, dead zones at the bottom of the slider. The Diva LED+ uses advanced dimming technology for dimmable LED, CFL, incandescent and halogen bulbs, and it is UL Listed to control dimmable LEDs, dimmable compact fluorescent lamps (CFL) with integrated ballast, the Lutron LTEA Hi-lume 1% forward-phase LED driver, halogen and incandescent loads. Formerly sold as the C•L, it keeps the same idea: one wallbox dimmer that follows your fixtures instead of fighting them.

Feel and finish
The large paddle switch reads like a normal switch — guests never have to hunt for the control — while the captive linear slider stays put on the side of the device and sets the light level. Because it drops into a standard designer wallplate opening, it lines up cleanly beside your other devices, and coordinating Claro and Stainless Steel wallplates are available separately. Each unit is 100% factory tested, electrostatic discharge tested, and built with precise colour matching so multi-gang walls look consistent.

Technical specifications
SKU: LCDIM-LUDIVBK-120V
Type: Diva LED+ dimmer, wallbox control
Voltage: 120 V~ 60 Hz
LED / CFL rating: 150 W dimmable
Incandescent / halogen rating: 600 W
Lutron LTEA Hi-lume 1% forward-phase LED driver: 250 W (maximum 6 drivers)
Switching: Single pole / 3-way
Dimensions: 4.69 in (119 mm) x 2.75 in (70 mm) x 0.30 in (7.6 mm); 2.94 in (75 mm) and 1.31 in (33 mm)
Wallbox: U.S. wallbox 2 in (64 mm) deep minimum
Operating temperature: 32 °F to 104 °F (0 °C to 40 °C), indoor use only
Approvals: UL Listed to US and Canadian safety requirements UL1472 / CSA C22.2 184.1, NOM
Features: low-end adjustment, power-failure memory, captive linear slider, mechanical air-gap switch
Warranty: 1 Year Limited Warranty

Installation and compatibility
Wiring is familiar territory for any electrician or confident DIYer: the unit fits a standard wall box and connects like a conventional switch, with a mechanical air-gap switch to disconnect load power during service. For 3-way and 4-way switching, pair it with Claro switches or other mechanical switches at the companion locations. Two habits save callbacks: confirm every bulb is marked or rated DIMMABLE, since only dimmable LEDs and CFLs may be used, and set the low-end adjustment after installation so the lamps fade smoothly instead of cutting out. Note that some dimmable LEDs and CFLs require a minimum number of bulbs for proper operation — keep that in mind on a small two-lamp vanity circuit.

Where it earns its keep, and what's in the documents
In a house, it turns a bright kitchen into evening lighting, tames a bedroom pot light layout and softens a basement family room for movie night. In light-commercial work — offices, clinics, salons, restaurants — it gives staff a simple way to drop levels during quiet hours and trim energy use. Building out a whole wall of controls? Look at the Lutron Diva LED dimmer 150W in another finish, the Lutron Skylark LED dimmer 150W, or step up to app and remote control with the Lutron Caseta starter kit and its Pico remote. The full technical spec sheet for LCDIM-LUDIVBK-120V is in the Documentation tab, with ratings, dimensions and approvals for your submittal package.
