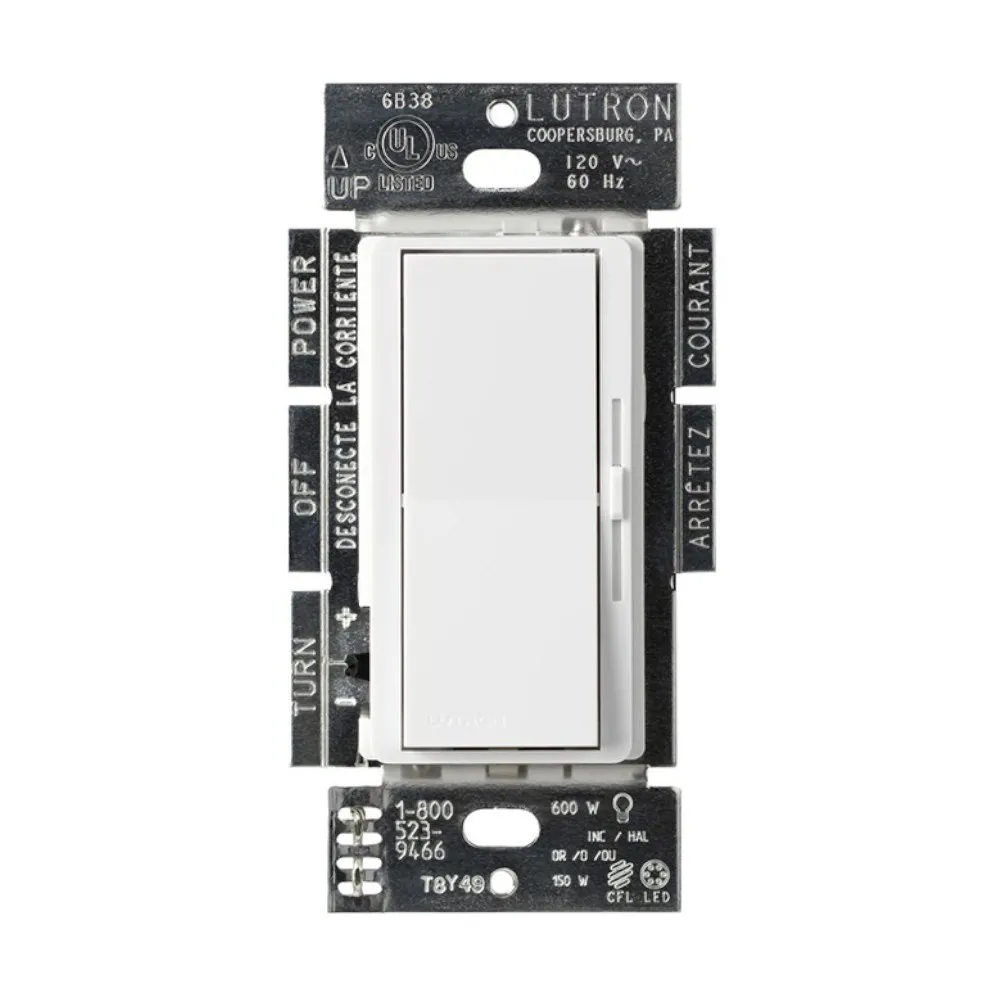

LUTRON DIVA LED DIMMER - 150W

Name: LUTRON DIVA LED DIMMER - 150W
Brand: LEDCO
SKU: LCDIM-LUDIV-120V
Price: 41.97 CAD
Availability: InStock

SKU: LCDIM-LUDIV-120V

Brand: LEDCO

Tired of lights that flicker, buzz or jump from bright to off with nothing in between? The Lutron Diva LED+ dimmer is the wall control that finally makes dimming feel smooth again. Known by shoppers as the Diva dimmer switch, the paddle-and-slider LED dimmer switch or simply a wall dimmer, it pairs a large rocker paddle with a captive linear slider: tap the paddle to turn your lights on at the level you last chose, and glide the slider to fine-tune the mood. It is built for today's mixed lighting loads, so you can dim recessed pot lights, LED lamps, CFLs, halogen and incandescent bulbs from one familiar device (SKU LCDIM-LUDIV-120V).

This is a 120 V~ 60 Hz control rated for 150 W of dimmable LED or CFL, or 600 W of incandescent or halogen, or 250 W of Lutron LTEA Hi-lume 1% forward-phase LED driver (maximum 6 drivers) — enough range for a whole room of fixtures on one switch. LED+ technology delivers superior dimming performance, and the low-end adjustment lets you set exactly how low your bulbs can go before they drop out, so the lights always strike reliably at the bottom of the slider. Power-failure memory brings your level back after an outage, a mechanical air-gap switch disconnects load power for service, and every unit is 100% factory tested. It is UL Listed to US and Canadian safety requirements (UL1472 / CSA C22.2 184.1), NOM certified, and covered by a 1 Year Limited Warranty. Dimensions: 4.69 in (119 mm) x 2.75 in (70 mm), 0.30 in (7.6 mm) faceplate depth.

Put it in the living room, kitchen, dining room, bedroom or basement rec room, and in restaurants, boutiques, clinics and offices where the light needs to change with the hour. It works as a single pole dimmer or in 3-way applications when paired with a mechanical companion switch — a real advantage for Canadian hallways, stairwells and open-plan spaces with two entrances. Indoor use only, operating from 32 °F to 104 °F (0 °C to 40 °C), in a wallbox at least 2 in (64 mm) deep. Coordinating Claro and Stainless Steel wallplates are sold separately. Prefer a dark finish or another style? Compare the Lutron Diva LED dimmer in black, the Lutron Skylark LED dimmer, or go wireless with the Lutron Caseta LED dimmer. Add it to your order and get the light level right, every time.

Built around a paddle and a slider
The Diva LED+ keeps the control simple: a large paddle switch turns the lights on to your selected level and off again, while a captive linear-slide dimmer sets that level. Because the slider is captive, it stays put and never falls out of alignment, and the whole assembly is sized for a standard designer wallplate opening — the same opening as your other decorator devices. Lutron's precise color matching means the dimmer blends with the rest of the devices on the wall, and each unit is electrostatic discharge tested and 100% factory tested before it leaves the line. The Diva LED+ was formerly sold as the C•L model, so if a drawing or an old dimmer switch in your panel schedule calls for C•L, this is its replacement.

Light quality and load types
LED+ includes advanced dimming technology developed specifically for the behaviour of modern drivers and ballasts, which is why it handles dimmable LED, CFL, halogen and incandescent sources from the same control. It is UL Listed to control dimmable LEDs, dimmable compact fluorescent lamps (CFL) with integrated ballast, the Lutron LTEA Hi-lume 1% forward-phase LED driver, halogen and incandescent bulbs. Only bulbs marked or rated as DIMMABLE may be used on LED or CFL circuits, and some dimmable LEDs and CFLs require a minimum number of bulbs for proper operation — check the lamp manufacturer's data before you finalize a small load. Mixing bulb technologies on one circuit is best avoided, since it can affect low-end performance; when you must, follow the multigang and mixed bulb type ratings in the spec sheet.

Technical specifications
SKU: LCDIM-LUDIV-120V
Voltage: 120 V~ 60 Hz
Dimmable LED / CFL load: 150 W
Incandescent / halogen load: 600 W
Lutron LTEA Hi-lume 1% forward-phase LED driver: 250 W (maximum 6 drivers)
Switching: single pole / 3-way
Dimensions: 4.69 in (119 mm) x 2.75 in (70 mm) x 0.30 in (7.6 mm)
Wallbox: 2 in (64 mm) deep minimum
Operating temperature: 32 °F to 104 °F (0 °C to 40 °C), indoor use only
Approvals: UL Listed to US and Canadian safety requirements UL1472 / CSA C22.2 184.1, NOM
Warranty: 1 Year Limited Warranty

Installation and set-up
The unit mounts in a standard single-gang wallbox at least 2 in (64 mm) deep and finishes with a designer-opening wallplate; coordinating Claro and Stainless Steel wallplates are available separately. Kill the breaker before you touch a conductor, leave a little slack in the wires so heat can escape behind the device, and keep the connected load within the printed rating. For 3-way and 4-way switching, use Claro switches or other mechanical switches at the companion locations — a common set-up for stairwells, long hallways and rooms with two doors. Once powered, take one minute to set the low-end adjustment: run the slider to the bottom, trim until the lamps light reliably every time, and you have flicker-free starts for good. Power-failure memory restores your level after an outage, and the mechanical air-gap switch lets you disconnect load power for lamp changes.

Where it works and what's in the box of documents
This wall dimmer is a natural fit over dimmable recessed pot lights in a kitchen or basement, over a dining room chandelier, in a bedroom on bedside-level lighting, in a boutique fitting room or a restaurant dining area where the level changes from lunch to dinner. Contractors use it as the standard-issue dimmer on renovation jobs because it covers LED, halogen and incandescent loads without switching product lines mid-project. Complementary choices in the catalogue include the Diva LED dimmer in black for dark device schemes, the Skylark LED dimmer for a slide-style control, and the Caseta starter kit if another room needs app and remote control. The full technical PDF (LCDIM-LUDIV-120V Spec Sheet) is in the Documentation tab, with the dimensions, ratings tables and the complete list of colour and finish codes.
