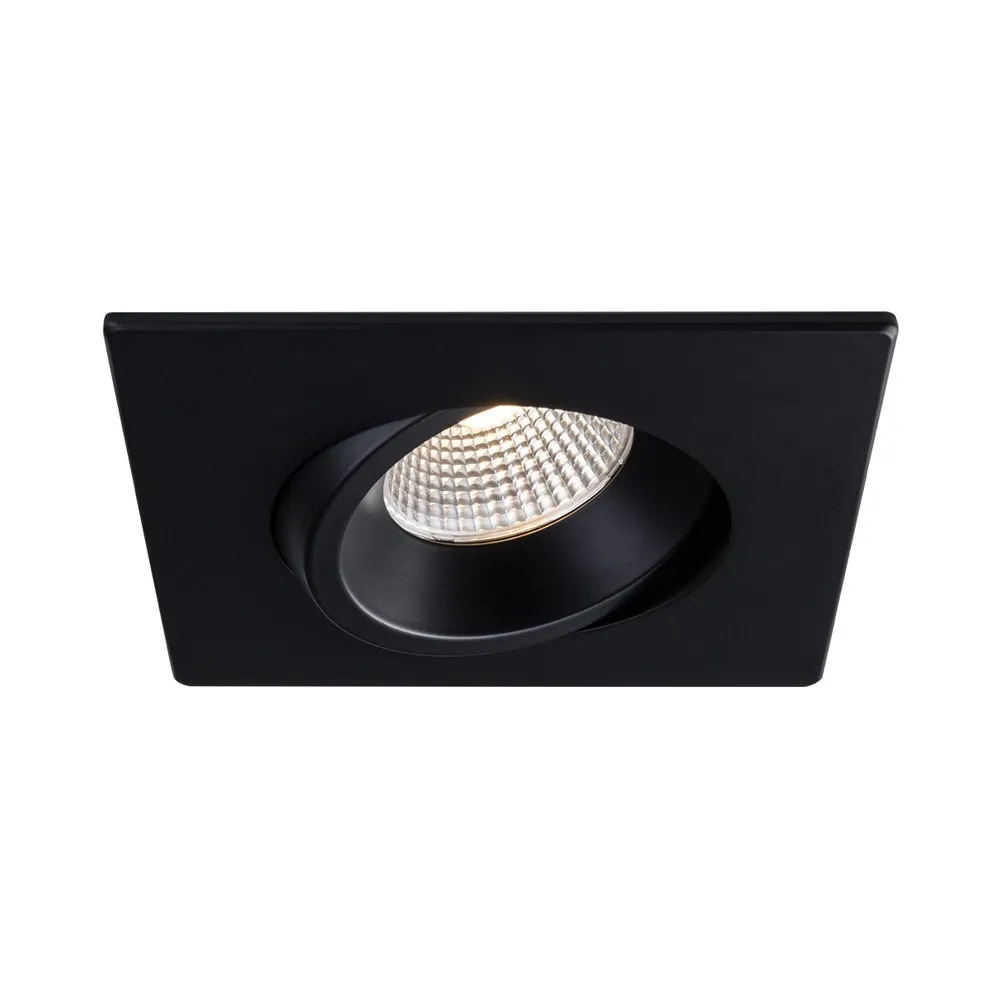

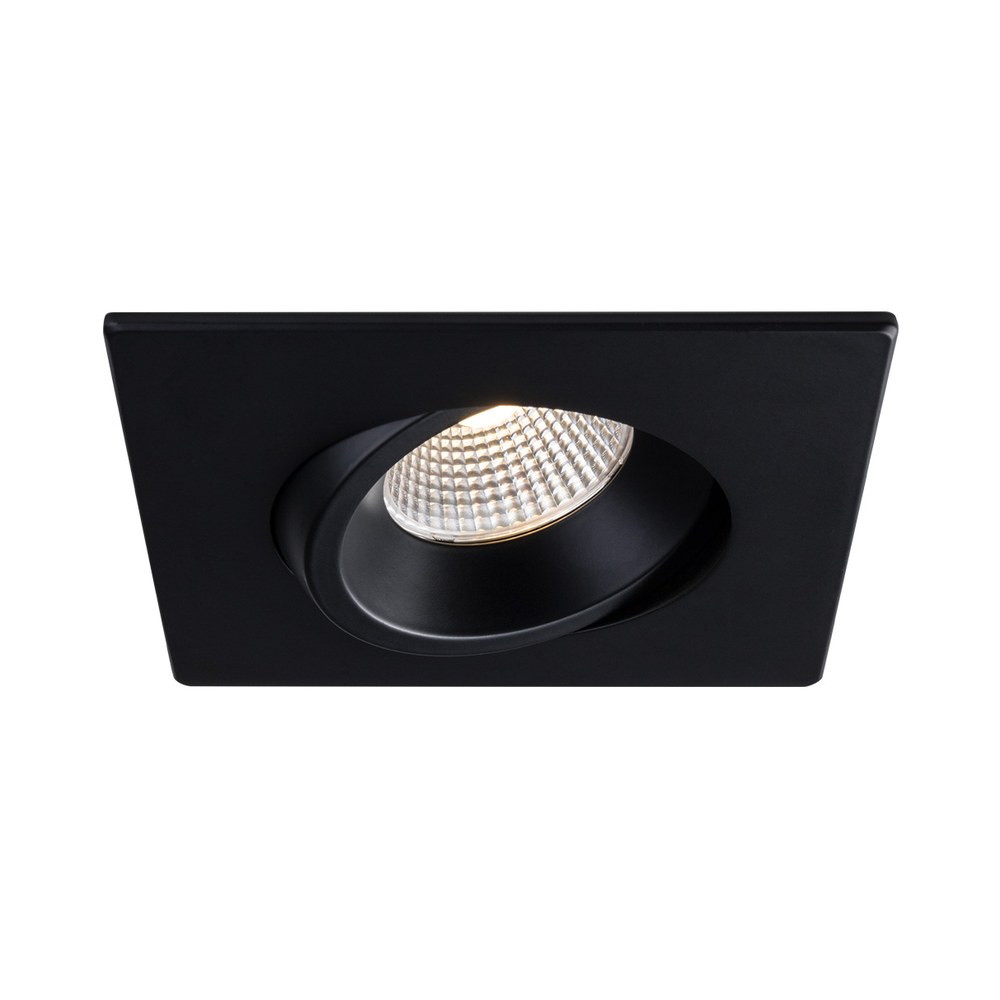

4" LUNA LED SQUARE REGRESSED GIMBAL RECESSED FIXTURE - RA4S-12RG-90BK

Name: 4" LUNA LED SQUARE REGRESSED GIMBAL RECESSED FIXTURE - RA4S-12RG-90BK
Brand: LITELINE
SKU: RA4S-12RG-90BK
Price: 81.97 CAD
Availability: InStock

SKU: RA4S-12RG-90BK

Brand: LITELINE

Say goodbye to glare and hello to clean, directional light: the LUNA 4" LED square regressed gimbal recessed fixture (SKU RA4S-12RG-90BK) from LITELINE is the kind of square downlight renovators and contractors keep coming back to. Call it a square pot light, a recessed gimbal downlight, an adjustable LED recessed fixture or simply a 4-inch recessed downlight — this is the one that lets you aim the beam exactly where it matters. The gimbal sits deep inside the housing, so the LED source stays tucked out of your line of sight while the light lands on artwork, a stone feature wall, a kitchen island or a hallway runner. Part of the LUNA Designer Series, it was built for both commercial and residential spaces, with a crisp black square trim that disappears into dark ceilings or plays as a graphic accent on white drywall.

The numbers back up the looks. This fixture delivers up to 1140 lumens at up to 102 lumens per watt, with a 12 watt (300 mA) dimmable Class II electronic LED driver running on 100-135V AC, 50/60 Hz. The on-fixture colour selectable switch gives you five colour temperatures — 2700 K, 3000 K, 3500 K, 4000 K and 5000 K — so one box covers warm living rooms and cooler work areas (1015, 1070, 1115, 1140 and 1115 lumens respectively). A typical CRI of 96 makes skin tones, wood grain and paint colours look true, while the 38° beam spread keeps the light tight and intentional. Dimming runs from 100% down to 10% with standard forward-phase / reverse-phase and TRIAC/ELV dimmers. The airtight aluminum body with anodized blue heat sink is cETLus certified, Energy Star, rated for wet locations and approved for direct contact with insulation (tested with insulation up to R60), with a projected life of 70% at 50,000 hours and a lifetime warranty.

It fits a Ø 4 1/4" (108 mm) hole, measures 4 15/16" (125 mm) square at 3 3/8" (85 mm) deep, and mounts in seconds with two spring-loaded clips into virtually any ceiling material. That makes it a natural for kitchens, basements, covered porches, bathrooms and showers, retail displays, restaurants and offices across Canada — anywhere an éclairage LED encastré commercial or residential ceiling needs punch without glare. Need other finishes or a matching look across a project? See the 4" LUNA square regressed gimbal recessed fixture in white, the brushed nickel version, or step up to the dim-to-warm black model. Add it to your cart and light your project the way you pictured it.

Built to last, built to install fast
The RA4S-12RG-90BK is built around a durable airtight aluminum body with an adjustable regressed gimbal and an anodized blue heat sink that keeps airflow moving around the LED source — the simplest way to protect light output over the long haul. Two spring-loaded clips hold it into virtually any ceiling material, and the square black trim sits flush for that clean, architectural line. The extruded aluminum hardwire box uses three "Quick connect" push-in terminals for fast wiring, and an 18" (457 mm) FT6 rated cable with a DC 2.1 connector links the driver to the fixture — approved for use in plenums and suspended ceilings.

Light quality you can actually see
This LED module maintains uniform intensity and produces up to 1140 lumens with a typical CRI of 96, which is where this fixture separates itself from ordinary pot lights: colours stay honest, whites stay clean, and merchandise or finishes look like they should. The on-fixture switch flips between five selectable colour temperatures — 2700 K (1015 lumens), 3000 K (1070), 3500 K (1115), 4000 K (1140) and 5000 K (1115) — so you can standardize one SKU across a whole job and fine-tune room by room. The lens delivers a 38° beam spread, and the gimbal tilts 20° in each direction for precise aiming on art, millwork or a feature wall.

Technical specifications
Application: Ceiling Recess Mount
Approved location: Wet / Insulated Ceilings
Beam angle: 38°
CCT (colour selectable): 2700 K / 3000 K / 3500 K / 4000 K / 5000 K
Certification: cETLus
Class II: Yes
Colour: BK
CRI: 96
Dimming: Yes, 100%-10%, forward/reverse-phase, TRIAC/ELV
Energy Star: Yes
Hole cut: Ø 4 1/4" (108 mm)
Input: 100-135V AC, 50/60 Hz
Lumens: Up to 1140
Lumens per watt: Up to 102
Power factor: 0.9
Projected life: 70% @ 50,000 hrs
Wattage: 12 watt (300 mA) driver
Dimensions: 4 15/16" (125 mm) x 4 3/16" (106 mm) x 3 3/8" (85 mm)
Operating temperature: -20°C~40°C (-4°F~104°F)
Warranty: Lifetime

Electrical, dimming and ceiling conditions
The 12 watt (300 mA) dimmable Class II electronic LED driver accepts 100-135V AC and dims smoothly from 100% to 10% on industry-standard forward-phase / reverse-phase and TRIAC/ELV dimmers. The fixture is airtight, suitable for wet locations and approved for direct contact with insulation — it has been tested with insulation up to R60, which matters in Canadian attics and cathedral ceilings. In spray foam and loose fill applications, a VBE vapour barrier extender is recommended. Accessories such as vapour barrier extenders, pre-mounting plates and new construction mounting kits are sold separately; ask us and we'll match the right one to your ceiling.

Where it works and what's in the Documentation tab
Use it over kitchen islands and countertops, in basements and hallways, in bathrooms and covered porches thanks to the wet location rating, and in retail, boutique, café and office ceilings where a low-glare square recessed downlight keeps the ceiling plane quiet. Mix finishes across a project with the white regressed gimbal version or the brushed nickel regressed gimbal version, choose the flush LUNA square gimbal fixture in white where you don't need the deep regress, or go smart with the LUNA 4" OnCloud RGBTW. The full technical spec sheet (RA4S-12RG-90BK) is available in the Documentation tab for dimensions, photometrics and ordering details.
