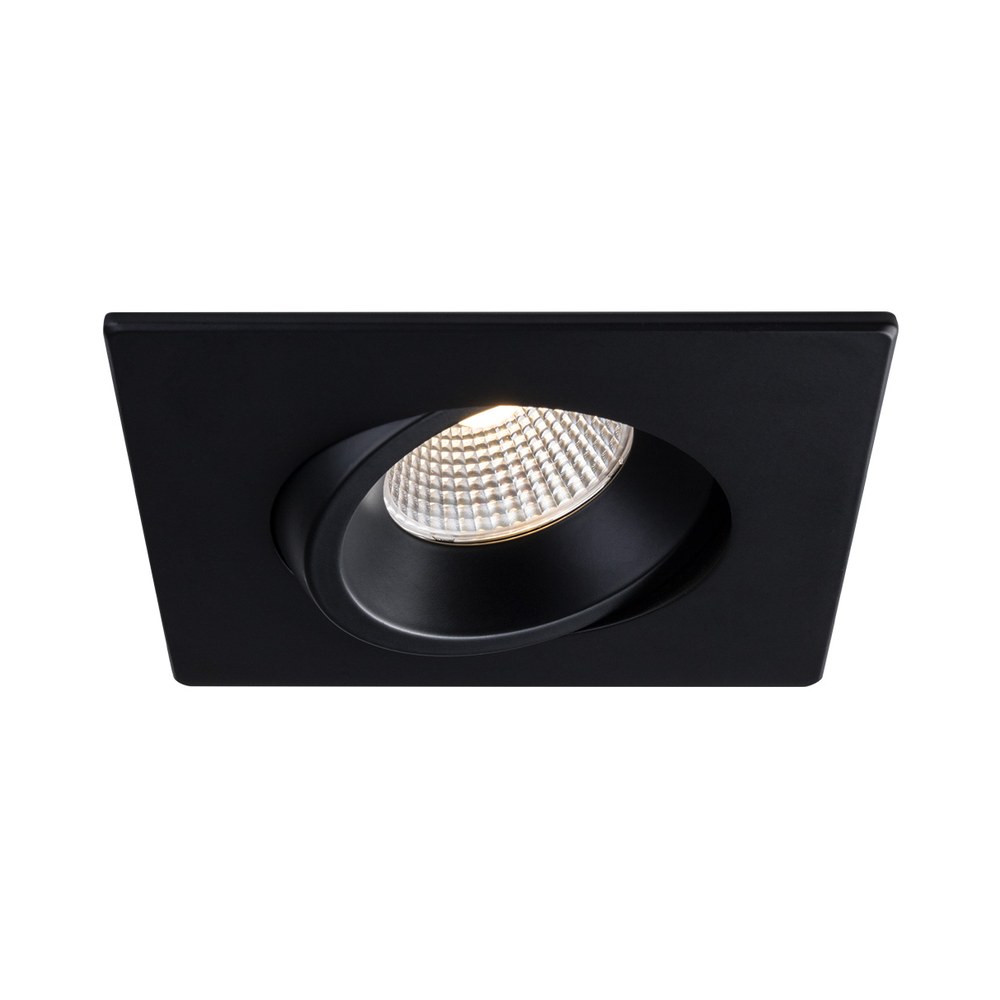

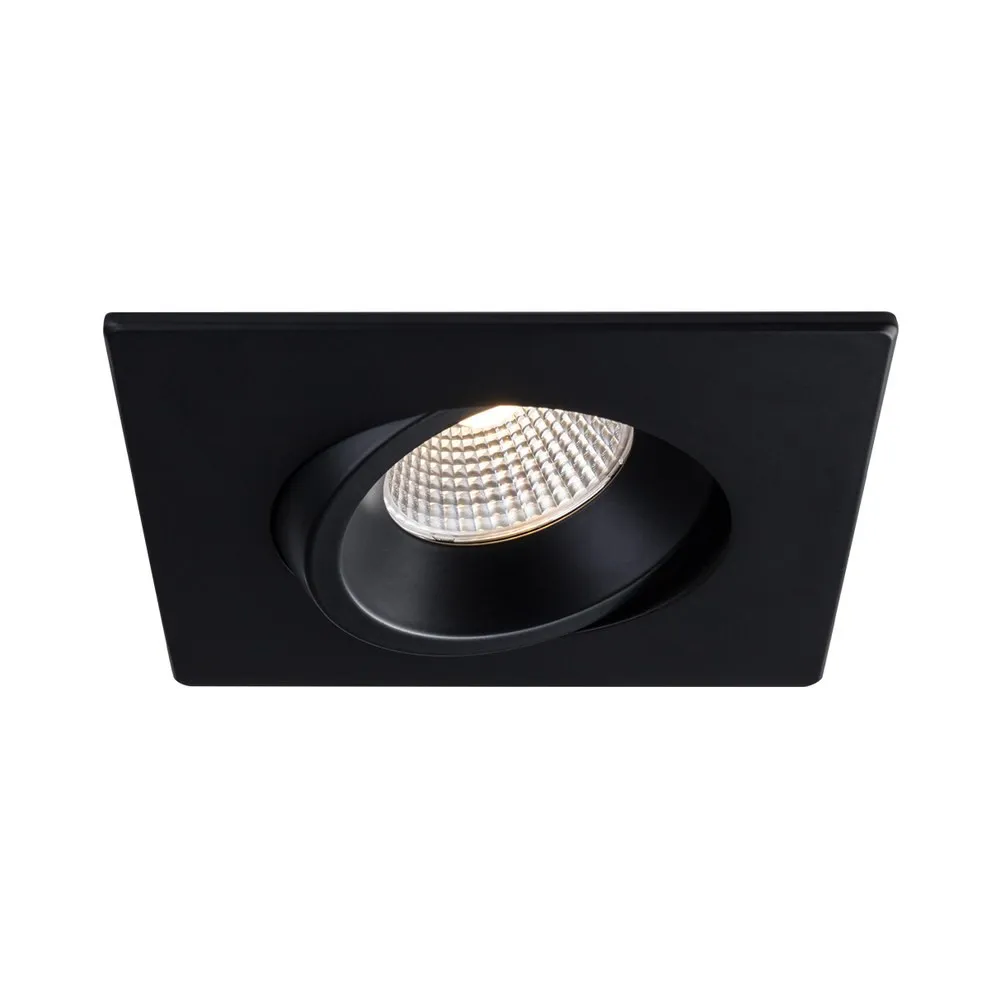

4" LUNA LED SQUARE REGRESSED GIMBAL RECESSED FIXTURE - RA4S-12RG-DTW90BK

Name: 4" LUNA LED SQUARE REGRESSED GIMBAL RECESSED FIXTURE - RA4S-12RG-DTW90BK
Brand: LITELINE
SKU: RA4S-12RG-DTW90BK
Price: 81.97 CAD
Availability: InStock

SKU: RA4S-12RG-DTW90BK

Brand: LITELINE

Say goodbye to glare and hello to clean, directional light: the 4" LUNA LED Square Regressed Gimbal Recessed Fixture (SKU RA4S-12RG-DTW90BK) by LITELINE is the square recessed downlight — what many people simply call a pot light or square downlight — that finally lets you aim your light exactly where you want it. The gimbal sits deep inside the housing, so the LED source stays tucked away from your eyes while the beam does the work on artwork, a fireplace wall, a kitchen island or a hallway runner. Black trim keeps it discreet against dark ceilings and gives a modern, architectural look on white ones. Whether you're renovating a condo, finishing a basement or lighting a boutique, this is the kind of fixture that makes a ceiling look designed instead of just lit.

Under the hood, it's built to perform. The LED module delivers up to 1140 lumens at a typical CRI of 96, so skin tones, wood grain and paint colours look true. An on-fixture colour selectable switch gives you five colour temperatures — 2700 K, 3000 K, 3500 K, 4000 K and 5000 K — chosen right at installation, with lumen output of 1015 at 2700 K, 1070 at 3000 K, 1115 at 3500 K, 1140 at 4000 K and 1115 at 5000 K. The 12 watt (300 mA) dimmable Class II driver runs on 100-135V AC, 50/60 Hz, reaching up to 102 lumens per watt with a 0.9 power factor. Dimming goes from 100% to 10% with forward-phase / reverse-phase and TRIAC/ELV dimmers. The airtight aluminum body includes an anodized blue heat sink, a 38° beam spread, a Ø 4¼" (108 mm) hole cut, cETLus certification, Energy Star, a projected life of 70% @ 50,000 hrs and a lifetime warranty.

Suitable for wet locations and approved for direct contact with insulation, it's a natural fit for showers, covered porches, kitchens, bathrooms, retail floors, offices and restaurants — and a smart choice in Canadian insulated ceilings, having been tested with insulation up to R60. Two spring-loaded clips attach it to any ceiling material and three quick-connect push-in terminals make wiring fast, with an 18" FT6 cable approved for plenums and suspended ceilings. Matching this black finish with other rooms is easy: see the same fixture in 4" LUNA square regressed gimbal in white or brushed nickel. Order yours and give your ceiling the low-glare finish it deserves.

Built like a contractor's fixture, styled like a designer's
The LUNA Designer Series was developed to be flexible, low-glare and genuinely good looking. This 4" square version uses a durable airtight aluminum body with an adjustable regressed gimbal, plus an anodized blue heat sink that maximizes airflow around the LED light source — the kind of thermal management that keeps output and colour stable year after year. Because the optic is set back inside the housing, you get sharp, directional light without the hot spot glaring back at you from across the room, and the black trim visually disappears into the ceiling opening.

Light quality and colour selection
The LED module maintains uniform intensity and produces up to 1140 lumens with a typical CRI of 96, which is exactly what you want over a kitchen counter, a display case or a feature wall. The on-fixture colour selectable switch lets you pick 2700 K, 3000 K, 3500 K, 4000 K or 5000 K on site, so one box of fixtures can serve a warm living room and a crisp workshop in the same job. Output by setting: 1015 lumens at 2700 K, 1070 at 3000 K, 1115 at 3500 K, 1140 at 4000 K and 1115 at 5000 K. The lens delivers a 38° beam spread, tight enough to accent, wide enough for general downlighting.

Technical specifications
Model: RA4S-12RG-DTW90BK
Application: Ceiling Recess Mount
Approved location: Wet / Insulated Ceilings
Beam angle: 38°
CCT (colour selectable): 2700 K / 3000 K / 3500 K / 4000 K / 5000 K
CRI: 96
Wattage: 12W
Lumens: up to 1140
Lumens per watt: up to 102
Input: 100-135V AC, 50/60 Hz
Power factor: 0.9
Dimming: 100%-10%, forward/reverse-phase, TRIAC/ELV
Hole cut: Ø 4¼" (108 mm)
Operating temperature: -20°C~40°C (-4°F~104°F)
Certification: cETLus, Energy Star, Class II
Projected life: 70% @ 50,000 hrs
Colour: BK (Black)
Warranty: Lifetime

Wiring and installation
The extruded aluminum hardwire box houses a 12 watt (300 mA) dimmable Class II electronic LED driver and connects to the fixture with an 18" FT6 rated cable fitted with a DC 2.1 connector, approved for use in plenums and suspended ceilings. Three quick connect push-in terminals make the wiring step quick and tidy, and two spring loaded clips let the housing grip any ceiling material — drywall, plaster or a suspended tile. It's airtight, suitable for insulated ceilings, approved for direct contact with insulation and tested with insulation up to R60. In spray foam and loose fill applications, a VBE vapour barrier extender is recommended; a Liteline vapour barrier extender, pre-mounting plate or new construction mounting kit can be ordered as separate accessories. Operating range is -20°C~40°C (-4°F~104°F), and dimming performance is best with industry standard forward-phase / reverse-phase and TRIAC/ELV dimmers.

Where it works and what pairs with it
Think bathroom and shower ceilings (it's rated for wet locations), covered entries, kitchens, hallways, staircases, basements, offices, clinics, boutiques and restaurant dining rooms — anywhere a square recessed downlight needs to aim light without shouting. For mixed-finish jobs, the same fixture is offered as 4" LUNA square regressed gimbal white and brushed nickel. Prefer a flush gimbal instead of a regressed one? Look at the 4" LUNA square gimbal in black, or go app-controlled with the LUNA 4" OnCloud RGBTW. The full technical spec sheet is available in the Documentation tab for dimensions, ordering details and dimmer notes.
