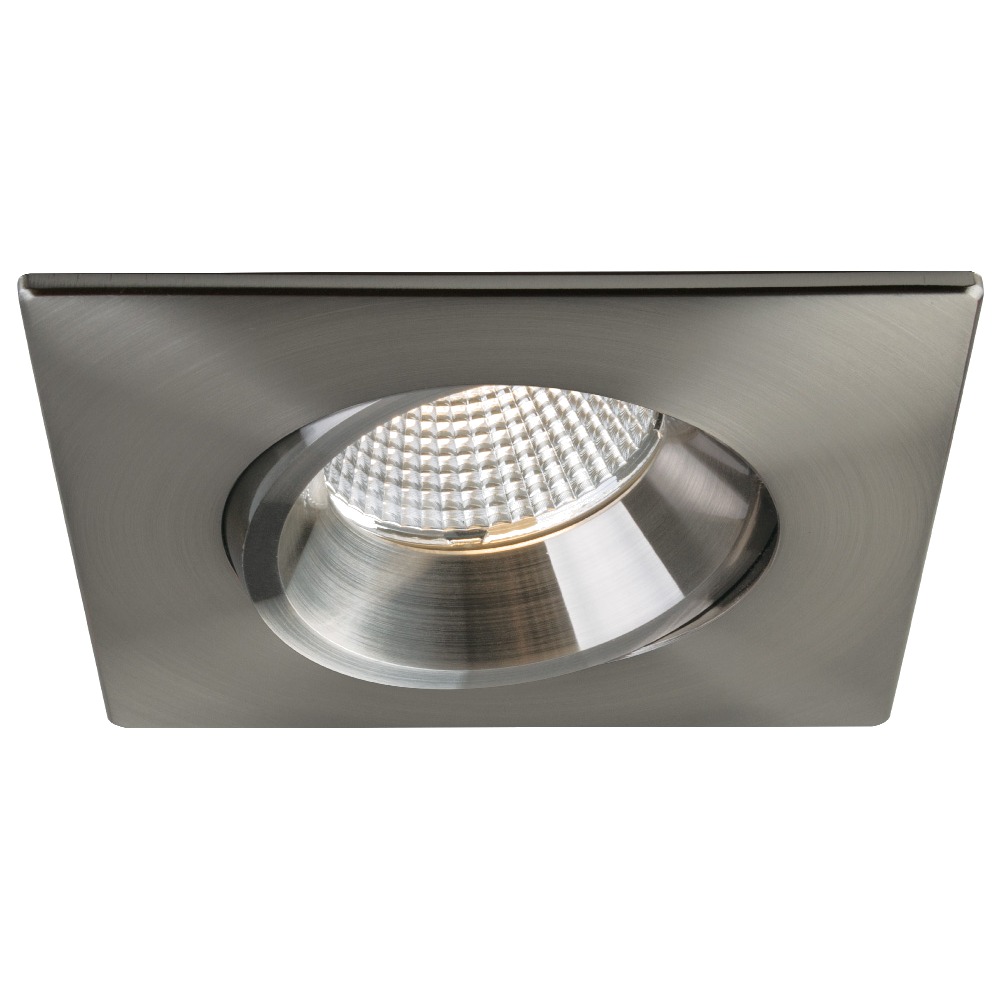

4" LUNA LED SQUARE REGRESSED GIMBAL RECESSED FIXTURE - RA4S-12RG-DTW90BN

Name: 4" LUNA LED SQUARE REGRESSED GIMBAL RECESSED FIXTURE - RA4S-12RG-DTW90BN
Brand: LITELINE
SKU: RA4S-12RG-DTW90BN
Price: 86.97 CAD
Availability: InStock

SKU: RA4S-12RG-DTW90BN

Brand: LITELINE

Bright, discreet and endlessly adjustable — the 4" LUNA LED Square Regressed Gimbal Recessed Fixture (SKU RA4S-12RG-DTW90BN) is the kind of square downlight you install once and stop thinking about. People search for it as a pot light, a square recessed light, a 4 inch LED gimbal downlight or simply a directional recessed fixture, and it answers to all of those names. Its regressed optic pushes the LED deep into the housing so you see light, not a glare bomb, while the adjustable gimbal lets you aim the beam exactly where it counts: a stone feature wall, a kitchen island, artwork in a hallway, or a row of merchandise in a boutique. In a brushed nickel trim, it reads as a clean architectural detail on the ceiling rather than a piece of hardware.

From LITELINE's LUNA Designer Series, this fixture delivers up to 1140 lumens at 9W / 12W, reaching up to 102 lumens per watt, with a typical CRI of 96 that makes wood grain, paint colours and skin tones look right. An on-fixture colour selectable switch gives you five colour temperatures — 2700 K, 3000 K, 3500 K, 4000 K and 5000 K — so one box covers warm living rooms and crisp work areas alike (1015 lm at 2700 K, 1070 lm at 3000 K, 1115 lm at 3500 K, 1140 lm at 4000 K, 1115 lm at 5000 K). The 38° beam spread keeps light controlled and directional. Input is 100-135V AC, 50/60 Hz, with 100%-10% dimming on standard forward-phase / reverse-phase and TRIAC/ELV dimmers. The durable airtight aluminum body with anodized blue heat sink, cETLus certification, Energy Star listing, wet location and insulated ceiling approval, 0.9 power factor, projected life of 70% @ 50,000 hrs and a lifetime warranty round out the package.

It fits a Ø 4 1/4" (108 mm) hole cut and mounts with two spring loaded clips into virtually any ceiling material, which makes it just as easy in a Québec basement renovation as in a retail fit-up or a covered porch soffit. Tested with insulation up to R60 and rated for wet locations, it handles bathrooms, showers, exterior soffits and cold-climate attics where airtight matters. Need the same look in another finish? See the 4" LUNA LED square regressed gimbal recessed fixture in white or the black version. Plan your layout and order your LUNA fixtures today.

Built to disappear into the ceiling
The RA4S-12RG-DTW90BN is built around a durable airtight aluminum body with an adjustable regressed gimbal, paired with an anodized blue heat sink that maximizes airflow around the LED light source. That thermal design is what protects the diodes over the long haul and supports the projected life of 70% @ 50,000 hrs. The square brushed nickel trim measures 4 3/16" (106 mm) across and 1 5/16" (34 mm) deep at the trim, with an overall fixture depth of 3 3/8" (85 mm) and a 4 15/16" (125 mm) hardwire box, so it tucks neatly into shallow joist bays. The gimbal tilts 20° each way for precise aiming after the drywall is up.

Light quality you can actually see
The LED module maintains uniform intensity and produces up to 1140 lumens with a typical CRI of 96 — high-fidelity colour that flatters finishes, food and faces. The on-fixture colour selectable switch steps through 2700 K, 3000 K, 3500 K, 4000 K and 5000 K, with output of 1015, 1070, 1115, 1140 and 1115 lumens respectively. The lens delivers a controlled 38° beam spread, and because the optic is regressed, the source sits out of your direct line of sight for a low-glare ceiling.

Technical specifications
SKU: RA4S-12RG-DTW90BN
Application: Ceiling Recess Mount
Approved location: Wet / Insulated Ceilings
Wattage: 9W / 12W
Lumens: Up to 1140
Lumens per watt: Up to 102
CCT: 2700 K / 3000 K / 3500 K / 4000 K / 5000 K (colour selectable)
CRI: 96
Beam angle: 38°
Input: 100-135V AC, 50/60 Hz
Dimming: 100%-10%, forward/reverse-phase, TRIAC/ELV
Hole cut: Ø 4 1/4" (108 mm)
Power factor: 0.9
Operating temperature: -20°C~40°C (-4°F~104°F)
Class II: Yes
Certification: cETLus
Energy Star: Yes
Projected life: 70% @ 50,000 hrs
Warranty: Lifetime
Colour: Brushed Nickel

Wiring and installation
An extruded aluminum hardwire box houses the dimmable class II electronic LED driver (12 watt at 300 mA or 9 watt at 210 mA) with 100-135V AC input. Three "Quick connect" push-in terminals make wiring fast, and an 18" FT6 rated cable with a DC 2.1 connector links driver to fixture — approved for use in plenums and suspended ceilings. Two spring loaded clips grip any ceiling material, the fixture is airtight, approved for direct contact with insulation and tested with insulation up to R60. In spray foam and loose fill applications, a VBE vapour barrier extender is recommended. Accessories such as the P-4020 pre-mounting plate, P-4020NC new construction plate and P-NCMK-1 new construction mounting kit are designed for 4" LUNA LED fixtures and are sold separately.

Where it works and what's in the Documentation tab
Think kitchens and hallways where you want punchy but comfortable light, bathrooms and shower ceilings thanks to the wet location rating, covered entries and soffits through a Canadian winter, plus offices, clinics, showrooms and restaurants where square recessed downlights line up into clean architectural rows. Mix finishes across a project with the 4" LUNA square regressed gimbal in brushed nickel, keep a flush look with the 4" LUNA square gimbal recessed fixture, or add app control with the LUNA 4" OnCloud RGBTW. The full technical PDF spec sheet is available in the Documentation tab for your submittals and permit packages.
