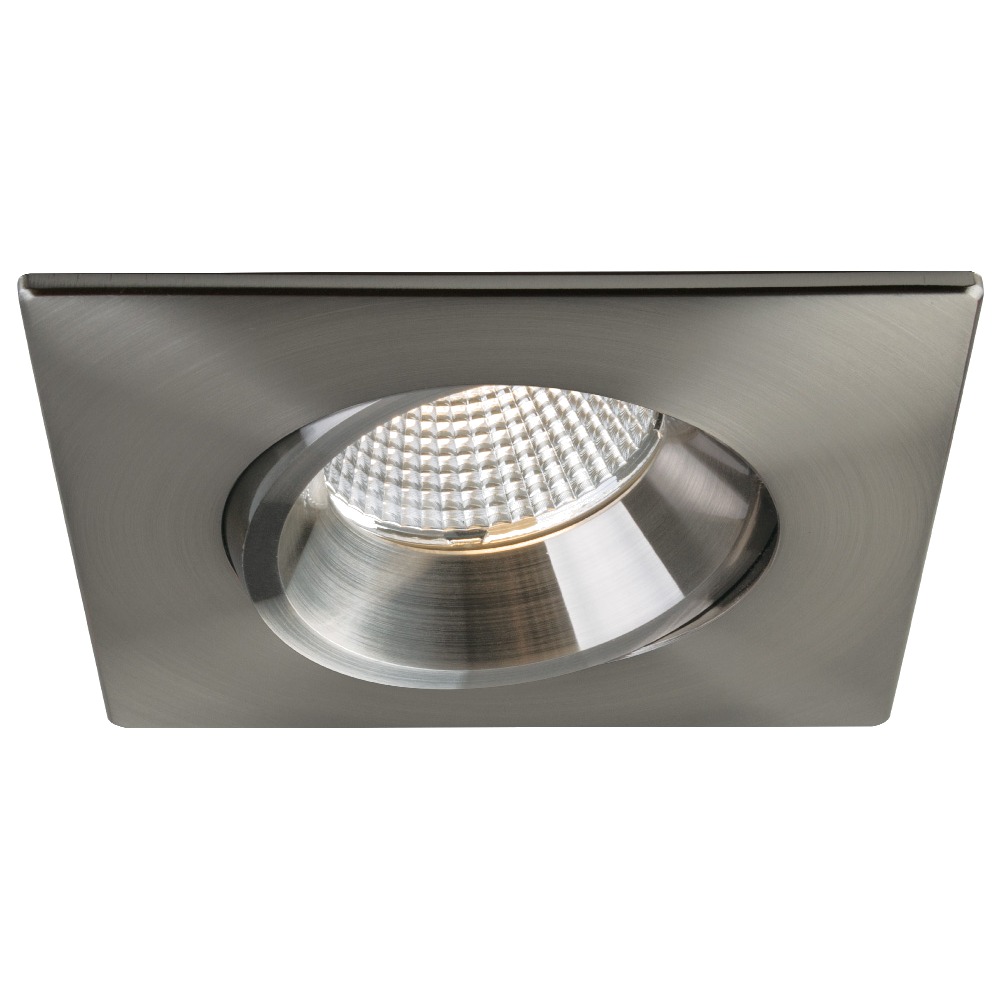

4" LUNA LED SQUARE REGRESSED GIMBAL RECESSED FIXTURE - RA4S-12RG-90BN

Name: 4" LUNA LED SQUARE REGRESSED GIMBAL RECESSED FIXTURE - RA4S-12RG-90BN
Brand: LITELINE
SKU: RA4S-12RG-90BN
Price: 86.97 CAD
Availability: InStock

SKU: RA4S-12RG-90BN

Brand: LITELINE

Some recessed lights shout; this one whispers and lets the room do the talking. The 4" LUNA LED Square Regressed Gimbal Recessed Fixture (SKU RA4S-12RG-90BN) is a square LED pot light with a tilting, deep-set gimbal — the kind of square downlight people go looking for when they want clean ceilings, low glare and light aimed exactly where it should go. Call it a recessed downlight, a directional pot light or an adjustable square gimbal fixture: it is the same thing, the LUNA Designer Series from LITELINE, finished here in Brushed Nickel. It works beautifully as general ceiling lighting, as a wall-wash over cabinetry, art or a fireplace, or as task lighting over an island, a reception desk or a display table.

Behind that small trim is a serious little engine. The LED module delivers up to 1140 lumens with a typical CRI of 96, so skin tones, wood grain, paint and merchandise finally look like themselves. An on-fixture colour selectable switch gives you five colour temperatures — 2700 K, 3000 K, 3500 K, 4000 K and 5000 K — and each one is matched to a real output (1015, 1070, 1115, 1140 and 1115 lumens). The dimmable Class II driver runs on 100-135V AC, 50/60Hz, draws 9W (210mA) or 12W (300mA) and reaches up to 102 lumens per watt with a 0.9 power factor. Dimming goes from 100% down to 10% with standard forward-phase / reverse-phase and TRIAC/ELV dimmers. The body is durable airtight aluminum with an anodized blue heat sink, the beam angle is 38°, the hole cut is Ø 4 1/4" (108 mm), it is cETLus certified, ENERGY STAR listed, rated for wet locations and for direct contact with insulation, operates from -20°C to 40°C, is rated 70% @ 50,000 hrs and carries a Lifetime warranty.

That combination makes it a natural in Canadian homes and businesses: kitchens, hallways, bedrooms, finished basements, bathrooms and covered porches (wet location rated), plus boutiques, clinics, offices and restaurants. Airtight construction and approval for insulated ceilings tested with insulation up to R60 matter a lot in our climate, and a vapour barrier extender is recommended in spray foam and loose fill applications. Mounting is quick — two spring loaded clips grab any ceiling material, and three Quick Connect push-in terminals speed up the wiring. Want the same fixture in another look? See the 4" LUNA LED square regressed gimbal recessed fixture in white, the black version, or the dim-to-warm RA4S-12RG-DTW90BN. Add it to your project list and light your ceiling the smart way.

Built to disappear into the ceiling
The LUNA Designer Series was evolved to be a flexible, low-glare and aesthetically pleasing luminaire, and the regressed gimbal version is the proof. The durable airtight aluminum body houses an adjustable regressed gimbal, so the light source sits deep inside the trim instead of staring back at you. An anodized blue heat sink maximizes airflow around the LED light source, which is what keeps output and colour stable year after year. The Brushed Nickel trim (BN) suits stainless appliances, modern hardware and warm neutral interiors, and the square aperture lines up cleanly with cabinetry, beams and tile joints — a detail designers notice immediately in a row of square LED pot lights.

Light quality and colour selection
This general application fixture produces up to 1140 lumens from a module that maintains uniform intensity, with a typical CRI of 96 — a level of colour rendering usually reserved for galleries and showrooms. The on-fixture colour selectable switch lets you pick between five colour temperatures on site: 2700 K (1015 lumens), 3000 K (1070), 3500 K (1115), 4000 K (1140) and 5000 K (1115). Warm for a living room, neutral for a kitchen, cool for a workshop or a retail display — one SKU covers all of it, which means fewer returns and no guessing at the specification stage. The lens delivers a controlled 38° beam spread, and the tilting gimbal lets you aim it 20° to either side for accent and wall-wash work.

Technical specifications
Application: Ceiling Recess Mount
Approved location: Wet / Insulated Ceilings
Wattage: 9W / 12W
Lumens: Up to 1140
Lumens per watt: Up to 102
CCT (colour selectable): 2700 K / 3000 K / 3500 K / 4000 K / 5000 K
CRI: 96
Beam angle: 38°
Input: 100-135V AC, 50/60Hz
Dimming: 100%-10%, forward/reverse-phase, TRIAC/ELV
Power factor: 0.9
Hole cut: Ø 4 1/4" (108 mm)
Operating temperature: -20°C~40°C (-4°F~104°F)
Class II: Yes
Certification: cETLus
ENERGY STAR: Yes
Projected life: 70% @ 50,000 hrs
Warranty: Lifetime
Finish: Brushed Nickel (BN)

Wiring and installation
The extruded aluminum hardwire box carries a dimmable Class II electronic LED driver — 12 watt (300mA) or 9 watt (210mA) — with 100-135V AC input, and an 18" FT6 rated cable with a DC 2.1 connector links driver and fixture, approved for use in plenums and suspended ceilings. Three Quick Connect push-in terminals make the wiring fast on a long run of downlights, and two spring loaded clips let the fixture attach to any ceiling material. It is airtight, approved for direct contact with insulation and tested with insulation up to R60; a vapour barrier extender is recommended in spray foam and loose fill applications, and accessories such as pre-mounting plates, new construction plates and mounting kits are sold separately. It is compatible with industry standard forward-phase / reverse-phase and TRIAC/ELV dimmers — a smart Wi-Fi dimmer is one way to control a room of them.

Where it works, and the paperwork
Think kitchen ceilings and islands, hallways, stairwells, primary bedrooms, basements, bathrooms and covered entries thanks to the wet location rating, then boutiques, dental and medical clinics, offices, hotel corridors and restaurants where a low-glare regressed aperture keeps ceilings calm. The full spec sheet PDF for RA4S-12RG-90BN is in the Documentation tab with dimensions, the lumen table per CCT and the complete ordering guide. Matching the rest of your ceiling is easy: compare the 4" LUNA LED square gimbal recessed fixture for a flush gimbal look, the dim-to-warm RA4S-12RG-DTW90BK, or the colour-changing LUNA 4" OnCloud RGBTW for accent zones.
