LL SERIES FOR LIGHT RESIDENTIAL APPLICATIONS - TK6008-BN

Name: LL SERIES FOR LIGHT RESIDENTIAL APPLICATIONS - TK6008-BN
Brand: LITELINE
SKU: TK6008-BN
Price: 92.97 CAD
Availability: InStock

SKU: TK6008-BN

Brand: LITELINE

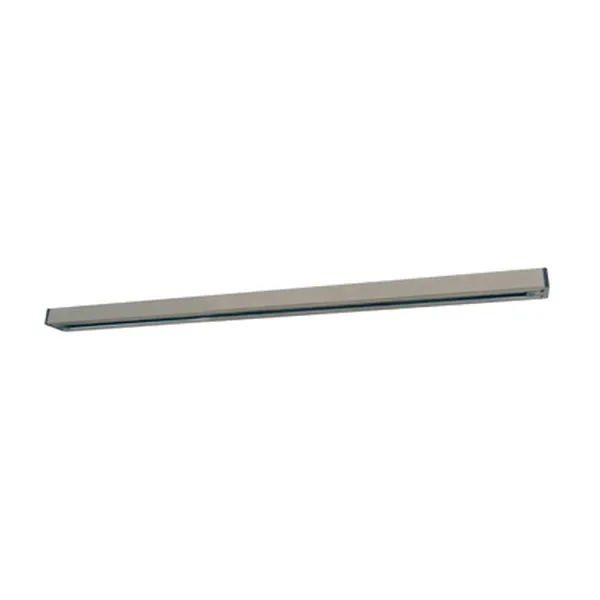

Give your room the freedom to point light exactly where you want it. The LITELINE LL Series track rail TK6008-BN is an 8-foot single-circuit track lighting section in a warm Brushed Nickel finish — the backbone people are really looking for when they search for track light heads, track rails or a lighting rail for a kitchen, a shop or a hallway. It is the channel that carries the power; you simply clip on your favourite heads, spots or pendants and slide them along the rail until the light lands where it should. Homeowners renovating a kitchen, contractors wiring a new condo, and small business owners lighting a boutique or a salon all use this kind of track section because it replaces a row of fixed fixtures with one clean, adjustable line of light.

Built to last, this rail is an extruded aluminum track with 1⁄32" die cast aluminum construction and 3⁄64" PVC insulators holding 12 gauge flat conductor wiring. The flat, solid integral conductors are rated 20 amps, and the system electrical rating is 20A, 120V, 60Hz — a true single-circuit track built for standard household and light commercial power. Copper electrical conductors stay concealed inside an insulating thermoplastic low-profile cross-section, and a polarity groove runs along the face of the track to show exactly where the grounding conductor sits, so orientation is never a guessing game. The Brushed Nickel extrusion measures 96" (2438mm) long with a slim 1 3⁄8" (35mm) profile and only ¾" (21mm) of projection, so it reads as a discreet line on the ceiling rather than a bulky channel.

This 8-ft track rail shines over kitchen islands and countertops, along a hallway of framed photos, in a basement workshop, or across a retail counter, a café or an office reception in any Canadian town. Sections join end to end with Liteline track connectors, and the Liteline track system is compatible with all Liteline track accessories and connectors — feeds, end caps, connectors and suspension rods are sold separately. Prefer another look? The same 8-foot rail is offered as LL Series track TK6008-BK in black, TK6008-SL in silver and TK6008-WH in white. Plan your run, add your heads, and light your space your way.

Solid extruded construction
The TK60 series is an extruded aluminum track designed for light residential and commercial projects, and the TK6008-BN version wraps that strength in a soft Brushed Nickel finish that blends with stainless appliances, nickel hardware and modern trim. The extrusion uses 1⁄32" die cast aluminum construction with 3⁄64" PVC insulators holding 12 gauge flat conductor wiring, which keeps the track rail rigid over its full 96" (2438mm) span. The low-profile cross-section — 1 3⁄8" (35mm) wide and ¾" (21mm) deep — hugs the ceiling, an important detail in basements, condos and older homes where every inch of headroom counts.

Electrical design and safety
This is a single-circuit 120V track lighting system: a single hot and neutral conductor, each rated 20 amps per branch circuit. The copper electrical conductors are concealed inside an insulating thermoplastic low-profile rack cross-section, and the flat, solid integral conductors are rated at 20 amps for dependable contact with every head you clip on. A polarity groove on the face of the track marks the location of the grounding conductor, so heads and connectors always go in the right way. Track lighting is a single-circuit electrical distribution system designed to supply power to lighting units in flexible ways — one feed, many fixtures, endless positions.

Technical specifications
Model: TK6008-BN
Series: LL Series (TK60 track sections)
Length: 96" (2438mm)
Profile: 1 3⁄8" (35mm) x ¾" (21mm)
Finish: BN — Brushed Nickel
Circuit: 1-circuit track
System electrical rating: 20A, 120V, 60Hz
Conductors: 12 gauge flat copper conductors, rated 20 Amps per branch circuit
Construction: 1⁄32" die cast aluminum extrusion with 3⁄64" PVC insulators

Accessories and compatibility
The Liteline track system is compatible with all Liteline track accessories and connectors, and accessories are sold separately. Power can arrive through the CA6106 live-end conduit feed (7⁄8" knockout) for top or end feed, the CF6108 center feed with canopy cover that taps a junction box anywhere along the run, the LE6110 live-end, the LE6111 live-end with canopy, or the WE6110 wired-end that feeds the track from a receptacle. Sections are joined with the IC6101 I-connector at 180°, the LC6102 L-connector at 90°, the TC6103 T-connector for three sections at 90°, the XC6104 X-connector for four sections at 90°, or the FC6105 flexible connector for varying angles. Finish the run with the TK6000-END end cap, and suspend the rail with the TDR62 hollow stem rod kit (ceiling canopy, mounting brackets and hardware included), the RODR62 rod to suspend track from the ceiling, or the RODF62 rod for track fixtures.

Where to use it and documentation
Run one 8-ft section over a kitchen island to wash the counter with adjustable heads, use an L-connector to turn the corner into a dining nook, or hang a suspended run over a retail display, a gallery wall, a hair salon station or a home office. It also works well in garages and hobby rooms where you want directional light exactly where the work happens. Same length, other finishes: TK6008-BK black track, TK6008-SL silver track and TK6008-WH white track. The TK6008-BN spec sheet, with the technical drawings, the ordering guide and the full accessory list, is available in the Documentation tab.
