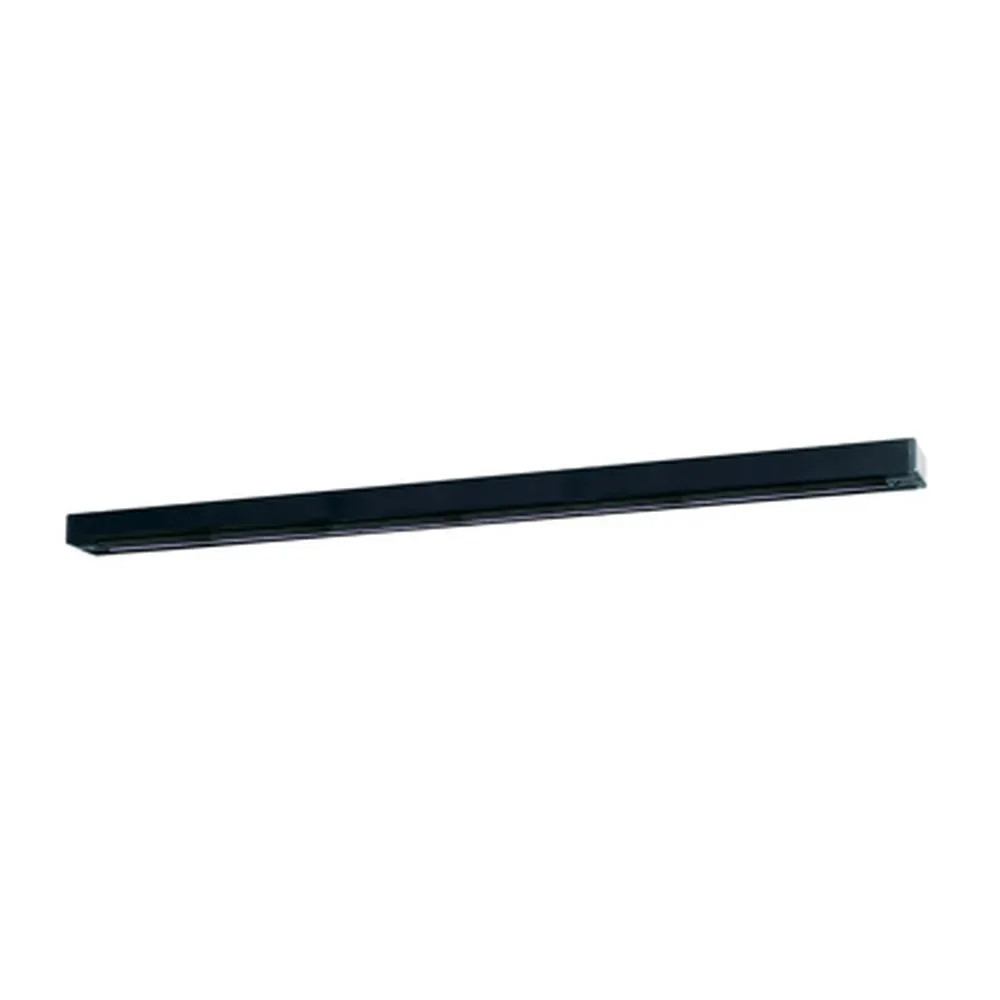

LL SERIES FOR LIGHT RESIDENTIAL APPLICATIONS - TK6006-SL

Name: LL SERIES FOR LIGHT RESIDENTIAL APPLICATIONS - TK6006-SL
Brand: LITELINE
SKU: TK6006-SL
Price: 65.97 CAD
Availability: InStock

SKU: TK6006-SL

Brand: LITELINE

Give your room the freedom to aim light exactly where you want it. The TK6006-SL is a 6-foot track rail from the LITELINE LL Series, built for light residential applications and small commercial projects. Shoppers look for it as a track lighting rail, a track section, a lighting rail or simply "track light bar" — it is the backbone that carries power along the ceiling so your track heads can slide, pivot and point wherever the furniture, the artwork or the counter ends up. Mount it over a kitchen island, along a hallway, above a retail display or across a basement workshop, then add heads, connectors and feeds to build the exact layout your space needs.

This is an extruded aluminum track in a clean silver finish (the SL suffix), finished with a 1⁄32" die-cast aluminum construction and 3⁄64" PVC insulators that hold flat 12-gauge conductor wiring. The system is a single-circuit 120V track rated 20A, 120V, 60Hz, with solid integral copper conductors concealed in a low-profile insulating thermoplastic cross-section — no bulky housing, just a slim rail measuring ¾" (21mm) by 1 3⁄8" (35mm) and 72" (1829mm) long. A polarity groove runs along the face of the track to show exactly where the grounding conductor sits, so orientation during installation is never guesswork. Sections can be joined together with any of the compatible track connectors to create straight runs, corners or full perimeter layouts.

It shines in condos, open-concept living rooms, rental units, offices, boutiques, salons and galleries — anywhere Canadian homeowners and contractors need adjustable, re-aimable lighting without cutting a dozen holes in the ceiling. The TK6006-SL is compatible with all LITELINE track accessories and connectors: live-ends, center feeds, end caps, I, L, T and X connectors, flexible connectors and suspension rod kits. Prefer another look? The same 6-ft rail is offered as LL Series track TK6006-BK in black, LL Series track TK6006-BN in brushed nickel and LL Series track TK6006-WH in white. Plan your run, add your heads, and light your space your way.

Solid extruded construction
The LL Series track is built from extruded aluminum with a 1⁄32" die-cast aluminum body, so the rail stays straight over long spans and holds its shape when heads are slid and repositioned again and again. Inside, 3⁄64" PVC insulators hold flat 12-gauge conductor wiring in place, and the copper electrical conductors are concealed in an insulating thermoplastic low-profile cross-section. The result is a discreet track rail only ¾" (21mm) tall and 1 3⁄8" (35mm) wide that reads as a clean architectural line on the ceiling rather than a piece of hardware. The silver finish of the TK6006-SL blends easily with stainless appliances, aluminum window frames and modern grey or white ceilings.

Electrical and installation details
This is a single-circuit track designed for 120V applications, with a system electrical rating of 20A, 120V, 60Hz. Single hot and neutral conductors are rated for 20 amps per branch circuit, which leaves comfortable room for a full row of modern LED track heads on one run. A polarity groove on the face of the track indicates the location of the grounding conductor, a small detail that saves time and prevents mistakes when several sections are installed end to end. Track lighting is a single-circuit electrical distribution system designed to supply power to lighting units in flexible ways, so the rail can be surface-mounted to the ceiling or suspended with a stem rod kit where the ceiling is high, sloped or finished in concrete.

Technical specifications
Model: TK6006-SL
Series: LL Series track sections (TK60)
Length: 72" (1829mm)
Profile: ¾" (21mm) x 1 3⁄8" (35mm)
System electrical rating: 20A, 120V, 60Hz
Circuit: 1-circuit, 120V
Construction: extruded aluminum, 1⁄32" die-cast aluminum
Insulators: 3⁄64" PVC
Conductors: flat 12-gauge, solid integral copper
Finish: Silver (SL)

Accessories and compatibility
The LITELINE track system is compatible with all LITELINE track accessories and connectors, and sections can be joined together using any of the compatible connectors. Feed options include the CA6106 live-end conduit feed (with 7⁄8" knockout) for top or end feed, the CF6108 center feed with canopy cover that powers the track anywhere along its length from a junction box, the LE6110 live-end, the LE6111 live-end with canopy and the WE6110 wired-end that powers the track from a receptacle. To shape a run, use the IC6101 I-connector at 180°, the LC6102 L-connector at 90°, the TC6103 T-connector for three sections at 90°, the XC6104 X-connector for four sections at 90°, or the FC6105 flexible connector for varying angles. Finish the run with the TK6000-END end cap, and suspend it with the TDR62 hollow stem rod kit (ceiling canopy, mounting brackets and hardware included), the RODR62 rod to suspend track from the ceiling or the RODF62 rod for track fixtures. Accessories are sold separately.

Where it works and documentation
Think kitchen islands and peninsulas, dining nooks, stairwells, home offices, finished basements, art walls, boutique displays, café counters, salon stations and small showrooms. One 6-ft run can replace several fixed fixtures while letting you re-aim the light after a renovation or a new layout — a real advantage in Canadian condos and older homes where ceiling boxes rarely sit where you need them. If your project needs more coverage, join this section to another using an I-connector, or match it with the same rail in another finish such as TK6006-WH white track or TK6006-BK black track. Prefer a ready-made starting point? Have a look at the Liteline track kit TK6006-BK-KIT. The full spec sheet, with technical drawings, the ordering guide and the accessory list, is available in the Documentation tab.

Technical Files
