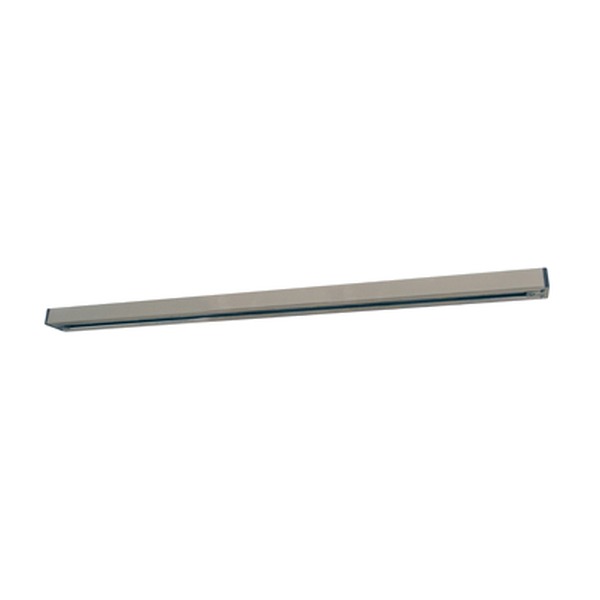

LL SERIES FOR LIGHT RESIDENTIAL APPLICATIONS - TK6006-BN

Name: LL SERIES FOR LIGHT RESIDENTIAL APPLICATIONS - TK6006-BN
Brand: LITELINE
SKU: TK6006-BN
Price: 65.97 CAD
Availability: InStock

SKU: TK6006-BN

Brand: LITELINE

Give your room the freedom to point light exactly where you want it. The LITELINE LL Series track TK6006-BN is a 6-foot track rail in a warm Brushed Nickel finish, the backbone of any track lighting system for light residential applications. Also called a track section, lighting rail, mounting rail or simply "the bar" that track heads clip onto, it turns one ceiling outlet into a whole row of adjustable light. Slide your heads along the rail, aim them at the island, the artwork, the reading chair or the shelving, and change the whole look of a space without moving a single junction box.

This is extruded aluminum track with flat, solid integral conductors rated 20A, 120V, 60Hz. Construction is 1/32" die cast aluminum with 3/64" PVC insulators holding 12 gauge flat conductor wiring, and a polarity groove on the face of the track shows exactly where the grounding conductor sits, so orientation is never a guessing game. It is a single circuit track for 120V applications: single hot and neutral conductors rated for 20 amps per branch circuit, with copper electrical conductors concealed in an insulating thermoplastic low profile cross-section. The TK6006 measures 72" (1829 mm) long with a slim 1 3/8" (35 mm) wide by 3/4" (21 mm) tall profile that hugs the ceiling. Finish code BN is Brushed Nickel, one of four finishes in the family.

Track shines in kitchens over an island or counter, in open-concept living and dining rooms, in hallways and basements, and in retail boutiques, galleries, salons, cafés and small offices where displays move around with the seasons. Because these sections join together with any of the compatible LITELINE track connectors, you can build straight runs, L shapes, T shapes and X layouts to match a Canadian condo, a renovated bungalow or a storefront. Prefer another finish for the same 6-foot length? See the LL Series track TK6006-BK, the LL Series track TK6006-SL or the LL Series track TK6006-WH. Add TK6006-BN to your project and start aiming light where it actually matters.

Built to last, built to disappear
The LL Series section is extruded aluminum track with flat, solid integral conductors, a design that keeps the track rail stiff over long runs while staying visually quiet on the ceiling. The extrusion is 1/32" die cast aluminum, fitted with 3/64" PVC insulators that hold 12 gauge flat conductor wiring in place. A polarity groove runs along the face of the track to indicate the location of the grounding conductor, which makes head orientation and feed placement obvious during installation. The Brushed Nickel finish of TK6006-BN plays well with stainless appliances, brushed cabinet hardware and modern trims, and it hides fingerprints better than glossier finishes in busy kitchens and boutiques.

Electrical and single-circuit design
This is a single circuit 120V track lighting system: one hot and one neutral conductor, rated for 20 amps per branch circuit, with copper electrical conductors concealed inside an insulating thermoplastic low profile rack cross-section. Track lighting is a single circuit electrical distribution system designed to supply power to lighting units in flexible ways, so every head you clip on draws from the same circuit and switches together. Plan your load against the 20A rating and the rest is simple: LED track light heads draw so little that a full 6-foot run rarely comes close to the limit, which is exactly why homeowners replace old halogen cans and fixed fixtures with track and use far less energy for the same punch of light.

Technical specifications
Model: TK6006-BN
Series: LL Series, TK60 track sections
Length: 72" (1829 mm)
Profile: 1 3/8" (35 mm) wide x 3/4" (21 mm) high
System electrical rating: 20A, 120V, 60Hz
Circuit: 1-circuit track
Conductors: 12 gauge flat copper conductors, 3/64" PVC insulators
Extrusion: 1/32" die cast aluminum
Finish: BN, Brushed Nickel

Installation and accessories that fit
Sections can be joined together using any of the compatible track connectors, and the Liteline track system is compatible with all Liteline track accessories and connectors. Feed power with the LE6110 live-end (no canopy), the LE6111 live-end with canopy from a junction box, the WE6110 wired-end from a receptacle, the CA6106 live-end conduit feed with 7/8" knockout for top or end feed, or the CF6108 center feed with canopy cover to power the track anywhere along its length. Shape the layout with the IC6101 I-connector at 180°, the LC6102 L-connector at 90°, the TC6103 T-connector for three sections, the XC6104 X-connector for four sections, or the FC6105 flexible connector for varying angles. Close the run with the TK6000-END end cap. To drop the track below a high or sloped ceiling, use the TDR62 hollow stem rod kit for track suspension, which includes ceiling canopy, mounting brackets and hardware, plus RODR62 rods to suspend track and RODF62 rods for track fixtures. Accessories are sold separately.

Where to use it, and what to read
A 6-foot run is a sweet spot: long enough to cover a kitchen island or a gallery wall, short enough for a hallway, a home office, a basement stair landing or a small retail display. Boutiques and cafés love it because the heads reposition in seconds when the merchandising changes; homeowners love it in open-concept rooms where one feed lights the dining table and the artwork at once. Need the same 6-foot section in a different look, or a ready-to-go bundle? Compare the LL Series track TK6006-WH and the track kit TK6006-WH-KIT, or the darker track kit TK6006-BK-KIT. The full technical PDF, the TK6006-BN spec sheet, is in the Documentation tab with the technical drawings, the ordering guide and the complete accessory list.
