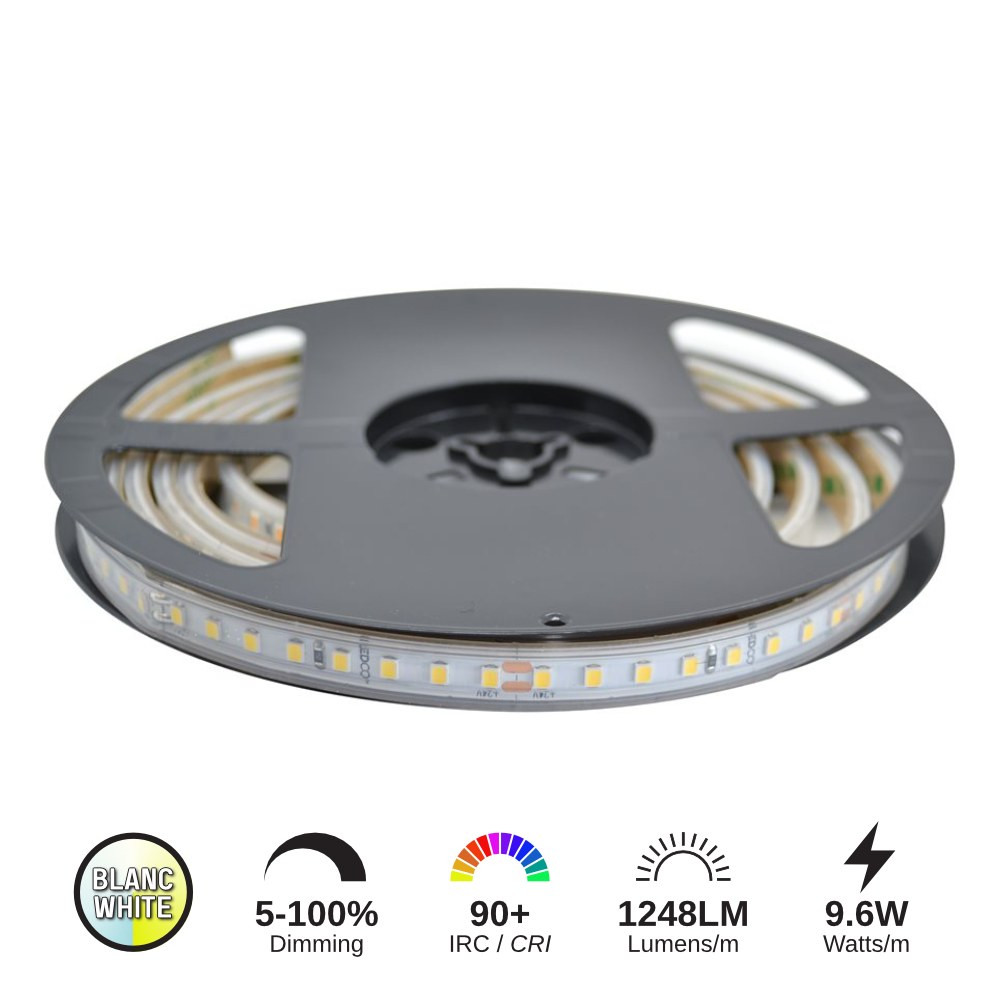

LED STRIP 9.6W/M - LCLS24V-48W-50K-IP66-30M

Name: LED STRIP 9.6W/M - LCLS24V-48W-50K-IP66-30M
Brand: LEDCO
SKU: LCLS24V-48W-50K-IP66-30M
Price: 514.97 CAD
Availability: InStock

SKU: LCLS24V-48W-50K-IP66-30M

Brand: LEDCO

Some rooms just need a clean, even line of light — and that's exactly what this LED strip delivers. Known by plenty of names — LED strip lights, LED light strips, LED tape, strip lighting or simply "strip lights" — this 24V roll is the tool renovators, contractors and business owners reach for when they want light without seeing the fixture. Tuck it under kitchen cabinets, inside a cove or a drop ceiling, along a staircase, behind a floating vanity mirror, inside display cases and shelving, or run it as a continuous LED ceiling light strip to wash a hallway from end to end. It replaces bulky fluorescent tubes and puck lights with one slim, flexible line you can cut to size, and it works just as well as discreet indoor LED lighting as it does for accent and task light in a shop or office.

The numbers behind the glow are just as convincing. It draws 9.6W per meter (±10%) from a 24V DC supply, with 128 LEDs per meter using Epistar 2835 SMD chips and an efficiency of 130 lm/W — dense enough that the dots blend into a smooth line instead of a row of hot spots. The CRI of 90+ keeps wood grain, paint, skin tones and merchandise looking honest, while the crisp 5000K colour temperature brings a bright, daylight-like feel to work zones. Add a 120° beam angle, an 8 mm PCB with a heavy 3oz copper layer, IP66 protection, a cut size of every 62.5 mm (8 LEDs), a maximum run of 10 m per feed, full dimmable capability, UL listing and a rated life of 50,000+ hours. This is SKU LCLS24V-48W-50K-IP66-30M.

From a Montréal condo kitchen to a Calgary retail counter, this strip earns its keep: under-cabinet task light, cove lighting in a living room, garage and workshop benches, basement renos, reception desks, salons, bakery display cases and gym mirrors. Because it runs on low voltage, you'll need a 24V DC driver sized to your total run, and an aluminum channel is the pro move for heat management and a finished look. Prefer a warmer glow for the same layout? The same 9.6W/M platform is offered in LED strip 24V 9.6W/M 3000K IP22 and LED strip 24V 9.6W/M 4000K IP22. Roll out your line of light and start your project today.

Built for long, even runs
This LED tape light is built on an 8 mm wide PCB with a 3oz copper thickness — a detail installers appreciate, because heavier copper moves heat away from the diodes and helps keep brightness and colour stable over a long run. With 128 LEDs per meter, the Epistar 2835 SMD chips sit close enough together to read as one continuous line once you drop the strip into a diffused aluminum channel. The strip is cuttable every 62.5 mm (8 LEDs), so you can tailor each section to a cabinet, a shelf or a stair nosing instead of forcing your layout to fit a fixed fixture length.

Light quality that flatters everything
A CRI of 90+ is what separates a proper architectural strip from a generic roll: colours stay true, whites stay clean, and finishes, food and products look the way they should under the light. The 5000K colour temperature is a bright, daylight-leaning white — ideal for kitchens, workbenches, garages, laundry rooms, display cases and commercial spaces where crispness and visibility matter. The 120° beam angle spreads light wide, which is exactly what you want for cove lighting and under-cabinet work surfaces, and an efficiency of 130 lm/W means you get that output without loading up your circuit.

Technical specifications
Product code: LCLS24V-48W-50K-IP66-30M
Chip: Epistar 2835 SMD
LEDs per meter: 128 pcs
Power: 9.6W/M ±10%
Efficiency: 130 LM/W
CRI: 90+
Colour temperature: 5000K
Beam angle: 120º
Voltage: 24V DC
Dimmable: Yes
PCB width: 8 mm
PCB thickness: 3oz
Max length: 10 m
Cut size: 62.5 mm (8 LEDS)
Protection rating: IP66
UL: Yes
Lifespan: 50,000+ hours

Wiring, dimming and installation
This is a 24V DC low-voltage product, so it must be powered by a 24V DC driver or power supply rated for the total wattage of your run — count 9.6W for every meter installed, then leave yourself headroom. Respect the 10 m maximum run per feed; for longer installations, run separate home runs back to the driver rather than daisy-chaining past that limit, which prevents the voltage drop that makes the far end look dim. The strip is dimmable, so pair the driver with a compatible low-voltage dimming control for cove, bedroom or restaurant scenes. Its IP66 rating means the strip is protected against dust and water jets, a real advantage in kitchens, bathrooms, covered exteriors and anywhere splashes, cleaning or humidity are part of daily life. Clean the surface before sticking it down, and use an aluminum extrusion with a frosted lens for heat dissipation, dot-free diffusion and a tidy finished edge.

Applications, family and documentation
Think under-cabinet task lighting in a kitchen, a continuous cove around a living-room ceiling, backlit bathroom mirrors, toe-kick and stair lighting, closet and pantry shelving, garage workbenches, retail shelving, bakery and jewellery display cases, reception desks, salon stations and office soffits. Need a different look from the same 24V family? Consider the lower-output LED strip 4.8W/M 24V 3000K IP66 for soft accent lines, the punchier LED strip 19.2W/M 24V 3000K IP66 for high ceilings and deep coves, the colour-changing LED strip 14.4W/M 24V RGB IP66 for feature walls and bars, or the warm version of this exact model, LED strip 9.6W/M 24V 3000K IP66. The full technical PDF spec sheet for this product is available in the Documentation tab — download it for your submittals, permits and installation planning.

Technical Files
