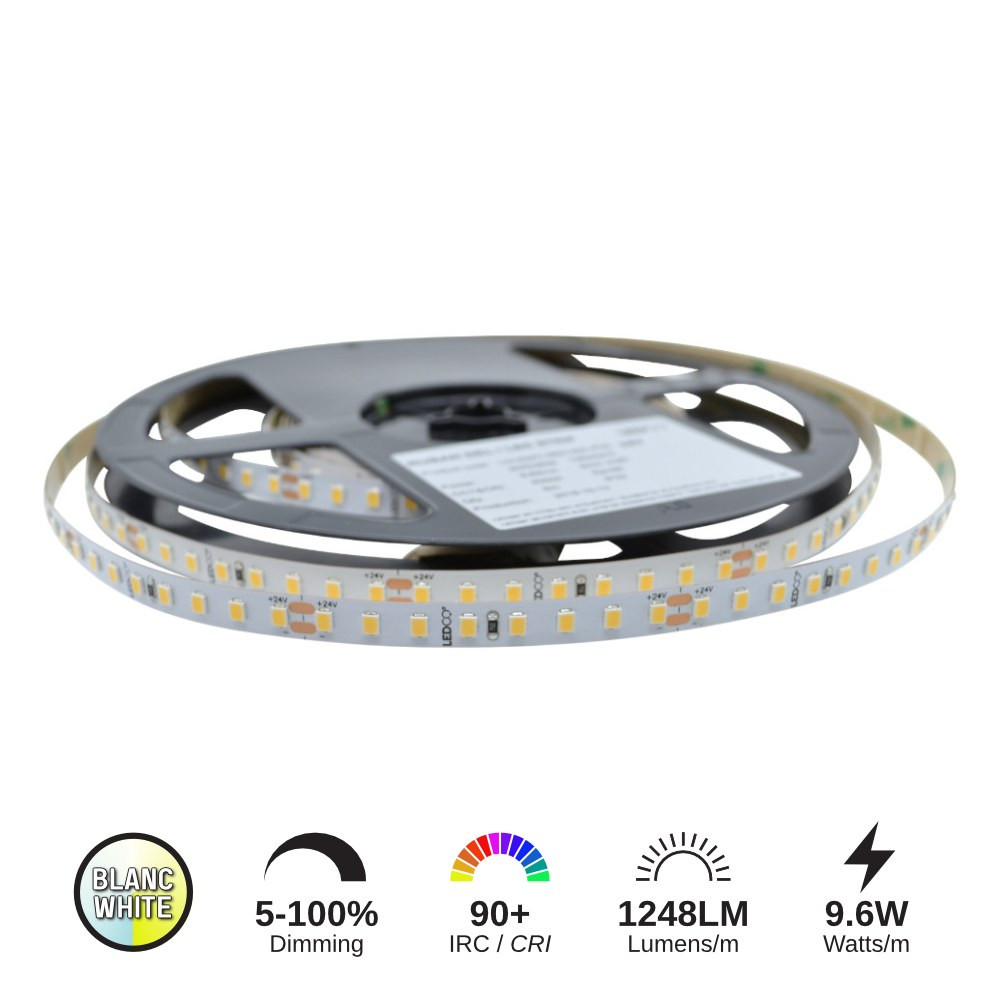

LED STRIP 9.6W/M - LCLS24V-48W-50K-IP22-30M

Name: LED STRIP 9.6W/M - LCLS24V-48W-50K-IP22-30M
Brand: LEDCO
SKU: LCLS24V-48W-50K-IP22-30M
Price: 403.97 CAD
Availability: InStock

SKU: LCLS24V-48W-50K-IP22-30M

Brand: LEDCO

Turn a plain ceiling cove, a shelf or a kitchen cabinet into a clean line of light with this 24V LED strip in a crisp 5000K daylight white. Known on jobsites and in searches as LED strip lights, LED light strips, LED tape, strip lighting or simply ribbon lighting, this flexible roll is the go-to trick for indoor LED lighting that you see the effect of, not the source. It hides in coves and valances, under upper cabinets, inside closets and pantries, along staircases, behind mirrors and headboards, under bar counters and reception desks, or straight into an aluminum channel for a finished LED ceiling light strip look. Model LCLS24V-48W-50K-IP22-30M.

Under the silicone-free top you get Epistar 2835 SMD chips, 128 LEDs per meter for a smooth, dot-free line, and a real 9.6W/m draw (±10%) at 130 lm/W — bright output without cooking your budget. The CRI 90+ rendering keeps wood grain, paint, food and skin tones looking true, which is exactly why designers spec it over cheap tape. Other real specs: 24V DC low voltage, 120º beam angle, fully dimmable, 8 mm PCB width with a generous 3 oz copper thickness for better heat management, cut points every 62.5 mm (8 LEDs), maximum run of 10 m per feed, IP22 protection for dry indoor use, UL listed and rated for 50,000+ hours of life.

This 5000K version is the one to pick when you want a bright, clean, modern white: garages and workshops, laundry rooms, home offices, walk-in closets, salons, clinics, bakery and deli display cases, retail shelving, showrooms and basement renovations across Canada. Need a warmer mood instead? The identical strip is offered in LED strip 24V 9.6W/m IP22 2700K, 3000K, 3500K and 4000K. For damp or splash-prone areas, look at the 9.6W/m IP66 version. Roll it out, cut to size, plug it into a 24V driver and enjoy the glow.

Built for clean, continuous light
This flexible LED tape uses Epistar 2835 SMD chips packed at 128 pcs per meter on an 8 mm wide PCB. That high LED density is what gives you a smooth line instead of the dotted, scalloped look of low-count strips — especially valuable when the strip sits close to a wall or inside a shallow cove. The circuit board uses a 3 oz copper thickness, which helps move heat away from the diodes and keeps light output stable over the long run. The whole thing is rated for 50,000+ hours, so a properly installed run keeps working long after the renovation dust has settled.

Light quality you can actually see
At CRI 90+, colours stay honest: cabinet finishes, backsplash tile, merchandise, produce and artwork all read the way they should. The 5000K colour temperature delivers a bright daylight white that feels crisp and awake — ideal for task areas, workshops, display cases and anywhere you want maximum visual clarity. With 130 lm/W efficiency and a 120º beam angle, the light spreads wide and even, and the strip is fully dimmable when paired with a compatible 24V dimming driver or controller.

Technical specifications
Product code: LCLS24V-48W-50K-IP22-30M
Chip: Epistar 2835 SMD
LEDs per meter: 128 pcs
Power: 9.6W/m ±10%
Efficacy: 130 lm/W
CRI: 90+
Colour temperature: 5000K
Beam angle: 120º
Voltage: 24V DC
Dimmable: Yes
PCB width: 8 mm
PCB thickness: 3 oz
Max length: 10 m
Cut size: 62.5 mm (8 LEDs)
Protection rating: IP22
UL: Yes
Lifespan: 50,000+ hours

Wiring and installation
Because it runs on 24V DC low voltage, this strip needs a 24V constant-voltage driver sized for the total load — count 9.6W per meter and add headroom. Respect the 10 m maximum run per feed; for longer installations, run separate home runs back to the driver rather than daisy-chaining, so the far end stays as bright as the first meter. Cut only on the marked cut points every 62.5 mm (every 8 LEDs), and mind the polarity when you solder or use a clip-on connector. The IP22 rating means dry indoor locations only — coves, cabinets, closets, ceilings and furniture, not exteriors or wet areas. Mounting the tape inside an aluminum profile with a diffuser (a very common request: "profilé aluminium pour LED strip") improves heat dissipation, hides the diodes and gives a finished architectural look.

Applications, family and documentation
Think under-cabinet task lighting in a kitchen, a perimeter cove in a living room or basement ceiling, toe-kick and stair accents, closet and pantry shelving, bar fronts, reception desks, retail gondolas and display cases, plus back-of-house and workshop lighting where 5000K really pays off. The same platform is available in 2700K, 3000K, 3500K and 4000K; for a lower-output run choose the 4.8W/m 24V strip, and for colour-changing projects the 14.4W/m RGB strip IP22. The full technical PDF spec sheet is available in the Documentation tab for your electrician, your designer or your permit file.
