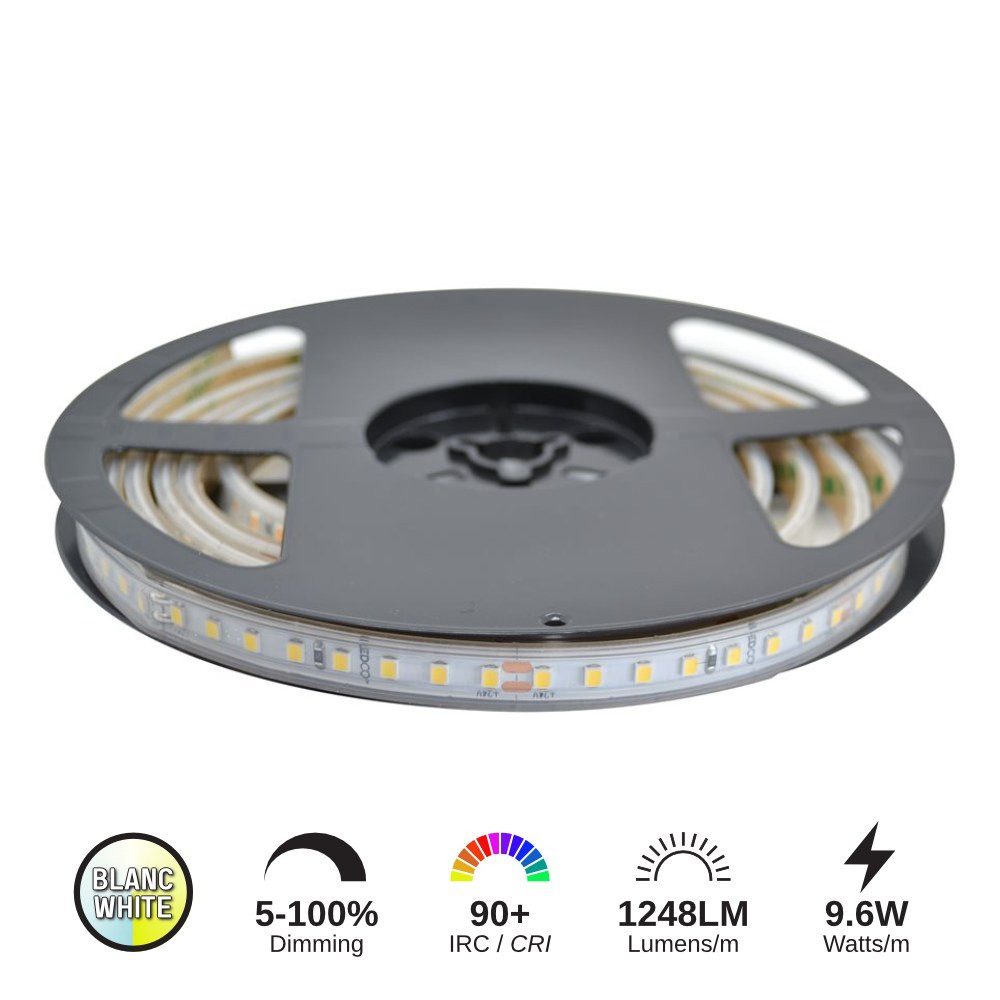

LED STRIP 9.6W/M - LCLS24V-48W-35K-IP66-30M

Name: LED STRIP 9.6W/M - LCLS24V-48W-35K-IP66-30M
Brand: LEDCO
SKU: LCLS24V-48W-35K-IP66-30M
Price: 514.97 CAD
Availability: InStock

SKU: LCLS24V-48W-35K-IP66-30M

Brand: LEDCO

Turn a plain ceiling cove, a dark counter or a shadowy shelf into the best-looking part of the room with this LED strip — the same product people search for as LED strip lights, LED light strips, LED lighting strips or simply strip lights. Sold as a continuous roll of flexible LED tape on an 8 mm circuit board, it hides inside coves, under cabinets, behind headboards, along stair nosings and inside display cases, then throws a smooth, even wash of light with no visible fixture. It is the go-to solution for indoor LED lighting accents, LED ceiling light strip details, toe-kick glow, closet and pantry lighting, retail shelving and backlit signage. SKU LCLS24V-48W-35K-IP66-30M.

Under the silicone you get Epistar 2835 SMD chips, 128 LEDs per meter and a real 9.6W/M draw at 24V DC, with an efficiency of 130 LM/W — plenty of punch for task lighting, soft enough for mood work. The 3500K colour temperature lands right between warm and neutral, a flattering white that keeps wood, quartz and paint looking true, helped along by a CRI 90+ rating that most budget tape simply cannot match. The 120º beam angle spreads light quickly so you see a line of light, not a row of dots. It is dimmable, UL listed, rated IP66 against dust and water jets, and built on a 3oz PCB for better heat management and a lifespan of 50 000+ hours. Cut it to size every 62.5mm (8 LEDs) at the marked points; maximum run is 10m per feed.

Kitchens, bathrooms, basements, home theatres, walk-in closets, bars, cafés, salons, clinics, offices and retail displays all benefit from a clean line of ruban LED-style accent light, and the IP66 construction is a real advantage in Canadian homes where humidity, splashes and cold garages or three-season rooms are part of life. Pair it with the matching colour temperatures of the same family if you need a different mood: LED strip 24V 9.6W/M IP22 3000K for a warmer room, LED strip 24V 9.6W/M IP22 4000K for a crisper workspace, or step up to LED strip 19.2W/M 24V IP66 when you need more output. Roll it out, power it up and see the difference.

Built to last, built to bend
This LED tape light is made around an 8mm wide printed circuit board with a 3oz copper layer — the thicker copper pulls heat away from the diodes, which is exactly what keeps brightness and colour stable over long runs and through years of daily use. On top sit Epistar 2835 SMD chips, 128 pcs per meter, spaced tightly enough that inside a diffused channel you read a continuous line of light rather than a string of hot spots. The IP66 protection code seals the strip against dust and water jets, so it handles bathrooms, kitchens, basements and utility spaces without drama, and the flexible body follows coves, curves and cabinet returns with ease.

Light quality you can actually see
Colour rendering is where cheap tape gives itself away. With a CRI 90+ rating, this strip shows skin tones, wood grain, fabrics and food the way they really are — a must in kitchens, bathroom vanities, closets, retail displays and any space where people judge colour. The 3500K output is a soft neutral white: warmer than an office, cleaner than a candle, and very forgiving in mixed-material rooms. At 130 LM/W and 9.6W/M, you get a generous, efficient wash from a 120º beam angle that fills a cove or under-cabinet space quickly.

Technical specifications
SKU: LCLS24V-48W-35K-IP66-30M
Chip: Epistar 2835 SMD
LEDs per meter: 128pcs
Power: 9.6W/M ±10%
Efficiency: 130 LM/W
CRI: 90+
Colour temperature: 3500K
Beam angle: 120º
Voltage: 24V DC
Dimmable: Yes
PCB width: 8mm
PCB thickness: 3oz.
Max length: 10m
Cut size: 62.5mm (8 LEDS)
Protection rating: IP66
UL: Yes
Lifespan: 50 000+ hours

Wiring, dimming and installation
The strip runs on 24V DC, so it needs a constant-voltage 24V driver or power supply sized to the total wattage of your run — remember the load is 9.6W/M, so add up your meters before choosing. Respect the 10m maximum length per feed; for longer installs, run separate home runs back to the supply instead of daisy-chaining, and you will avoid the voltage drop that makes the far end look dim. Cut only on the marked cut points every 62.5mm (8 LEDS), then solder or use a compatible connector. Because it is dimmable, pair it with a 24V dimmable driver and a compatible control for scene-setting in bedrooms, dining rooms and hospitality spaces. An aluminum profile with a diffuser — a popular search on its own — protects the tape, spreads the light and gives the installation a finished, built-in look.

Applications, family and documentation
Think under-cabinet task light over a kitchen counter, cove lighting around a living room ceiling, a glowing line under a floating vanity, stair and hallway guidance, backlit bar shelving, display cases in a boutique, or accent light in a clinic waiting room. The same platform is available in other colour temperatures and outputs so a whole project stays consistent: LED strip 24V 9.6W/M IP22 2700K, LED strip 24V 9.6W/M IP22 5000K, the lower-output LED strip 4.8W/M 24V IP66 for subtle accents, or the colour-changing LED strip 14.4W/M 24V RGB IP66. The full technical PDF spec sheet for this model is in the Documentation tab — download it for your submittals, your electrician or your permit file.
