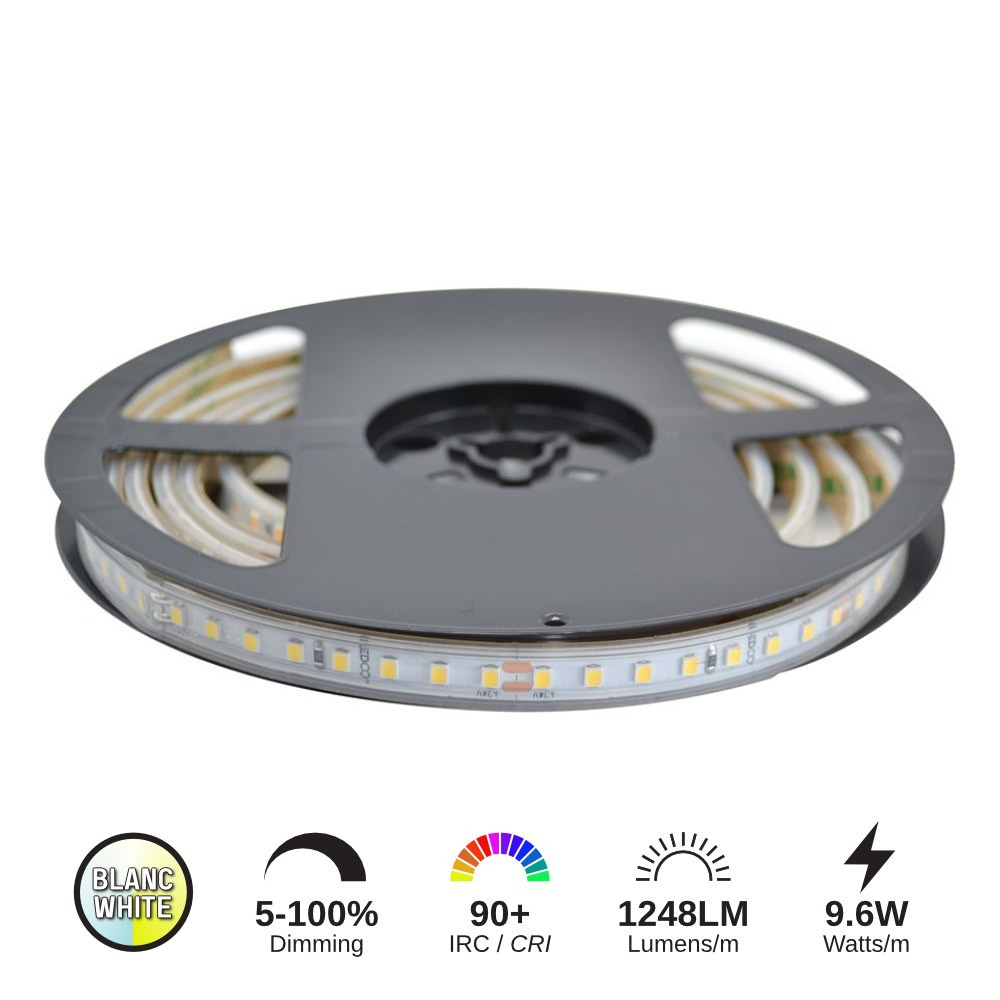

LED STRIP 9.6W/M - LCLS24V-48W-40K-IP66-30M

Name: LED STRIP 9.6W/M - LCLS24V-48W-40K-IP66-30M
Brand: LEDCO
SKU: LCLS24V-48W-40K-IP66-30M
Price: 514.97 CAD
Availability: InStock

SKU: LCLS24V-48W-40K-IP66-30M

Brand: LEDCO

Give any room a clean, continuous line of light with this LED strip rated at 9.6W/M in a crisp 4000K neutral white. Whether you call them LED strip lights, LED light strips, LED strip lighting or simply tape light, this is the flexible ribbon that hides in a cove, under a cabinet or inside an aluminum channel and turns a plain surface into a glowing architectural detail. It is sold as a 30 m spool (SKU LCLS24V-48W-40K-IP66-30M), so you have plenty of length for a full kitchen, a staircase, a long corridor or several rooms in the same project, with no visible fixture and no glare in the eye.

Under the silicone you get Epistar 2835 SMD chips, 128 LEDs per meter for a dense, dot-free line of light, and an efficiency of 130 LM/W that keeps energy use low. The CRI 90+ rendering makes wood grain, paint, food and fabrics look true, while the 120º beam spreads light evenly instead of throwing a hot spot. It runs on 24V DC, it is dimmable, the PCB is 8 mm wide with 3 oz. copper for stable colour over long runs, and it can be cut every 62.5 mm (8 LEDs) to fit your exact measurement. Maximum run per feed is 10 m. UL listed, rated IP66 and built for 50 000+ hours of life.

This strip is at home in kitchens, under upper cabinets and over islands, in bathroom vanities, in bedroom coves and headboards, in closets, basements, staircases and home theatres, and just as much in commercial projects: retail shelving, display cases, reception desks, restaurants, clinics and office ceilings. The IP66 rating also makes it a smart pick for damp Canadian spots like a covered porch soffit, a garage or a laundry room. It needs a 24V DC driver sized to your total run, and it looks its best inside an aluminum profile with a diffuser. Prefer a warmer look? The same strip is offered in LED strip 24V 9.6W/M IP22 (27K) and LED strip 24V 9.6W/M IP22 (30K). Measure your run, pick your driver and order your spool today.

Built for long, even runs
This LED tape light uses Epistar 2835 SMD chips at a density of 128 LEDs per meter, which is what kills the "string of dots" effect you get with cheaper strips. The PCB is 8 mm wide, so it slips easily into most standard aluminum channels, and it is built with 3 oz. copper — heavier copper moves heat away from the diodes and limits the voltage drop that makes the far end of a long run look dimmer and warmer than the start. The strip is supplied on a 30 m spool and can be cut every 62.5 mm, at each 8-LED mark, so you can follow a cabinet, a cove or a stair stringer to the millimetre.

Light quality you can trust
At 4000K, the light is a clean neutral white — bright and modern without the blue edge of a daylight tone, which is why it works so well over kitchen counters, in bathrooms, in workshops and in retail. The CRI 90+ rating means colours stay honest: white paint reads white, wood stays warm, merchandise and food look the way they should. With 130 LM/W and a 120º beam angle, output is both efficient and wide, filling a cove or a toe-kick with soft, even light instead of harsh streaks.

Technical specifications
SKU: LCLS24V-48W-40K-IP66-30M
Chip: Epistar 2835 SMD
LEDs per meter: 128 pcs
Power: 9.6W/M ±10%
Efficacy: 130 LM/W
CRI: 90+
Colour temperature: 4000K
Beam angle: 120º
Voltage: 24V DC
Dimmable: Yes
PCB width: 8 mm
PCB thickness: 3 oz.
Max length: 10 m
Cut size: 62.5 mm (8 LEDS)
Protection rating: IP66
UL: Yes
Lifespan: 50 000+ hours
Spool length: 30 m

Wiring, dimming and installation
The strip runs on 24V DC, so it needs a low-voltage LED driver sized for the total wattage of your run (9.6 W per meter, plus headroom). Respect the 10 m maximum length per feed: for longer layouts, run separate home runs back to the driver rather than splicing one long line end to end. The strip is dimmable, so pair it with a compatible dimming driver or an inline low-voltage dimmer for mood control in a living room, a bedroom or a restaurant dining room. Clean the mounting surface before sticking the tape, keep it straight, and mount it in an aluminum profile with a frosted diffuser whenever the strip will be seen — the channel hides the diodes, protects the tape and helps with heat management.

Where to use it and what pairs with it
Think under-cabinet and above-cabinet lighting, island overhangs, pantry and closet shelving, bathroom mirror surrounds, ceiling coves, stair nosings, basement bulkheads, bar fronts, retail gondolas, display cases, reception logos and office soffits. The IP66 construction adds peace of mind in damp areas such as garages, laundry rooms and covered exterior soffits. Need a different look in the same family? Compare the lower-output LED strip 4.8W/M 24V IP66, the brighter LED strip 19.2W/M 24V IP66, or the colour-changing LED strip 14.4W/M 24V RGB IP66 for accent work. A technical spec sheet is available in the Documentation tab for exact values, wiring notes and the full colour temperature line-up.
