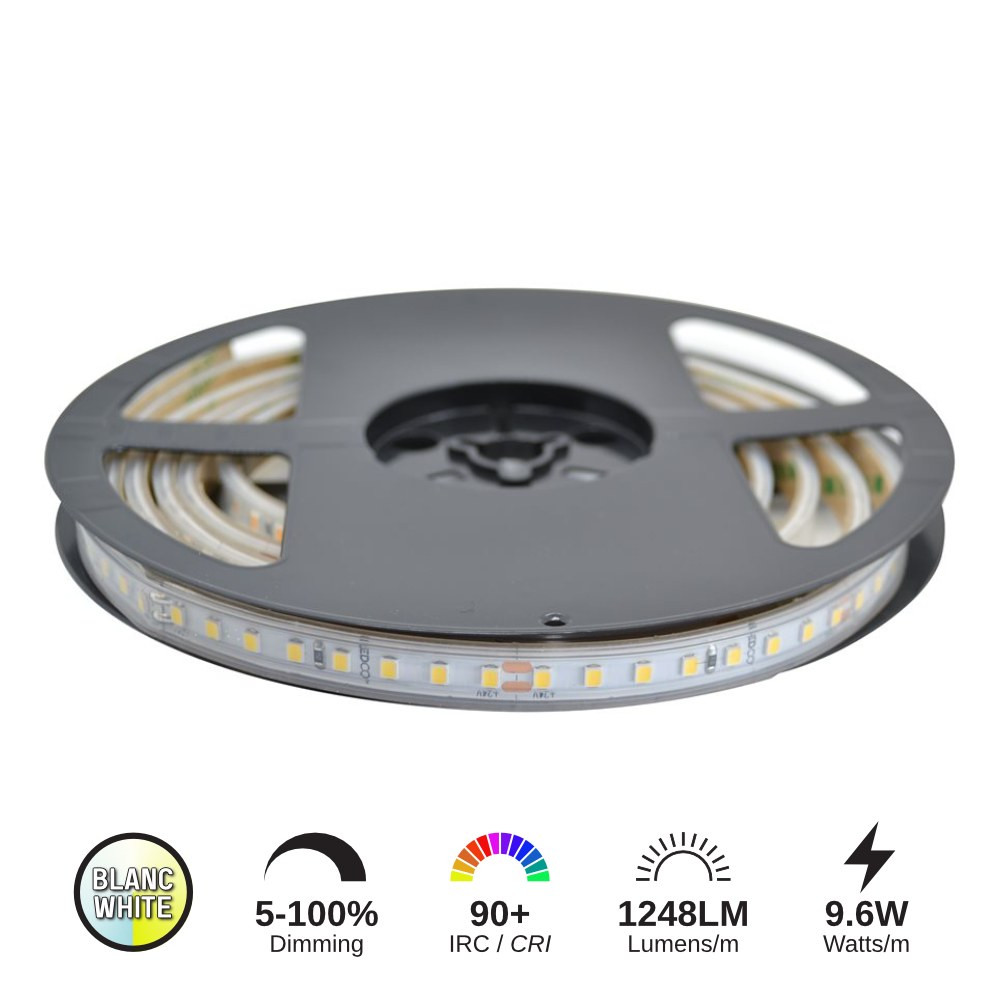

LED STRIP 9.6W/M - LCLS24V-48W-30K-IP66-30M

Name: LED STRIP 9.6W/M - LCLS24V-48W-30K-IP66-30M
Brand: LEDCO
SKU: LCLS24V-48W-30K-IP66-30M
Price: 514.97 CAD
Availability: InStock

SKU: LCLS24V-48W-30K-IP66-30M

Brand: LEDCO

Turn a plain ceiling cove, a stair nosing or a run of kitchen cabinets into a soft, continuous line of light with this 24V LED strip. Known by shoppers as LED strip lights, LED light strips, LED strip lighting, LED lighting strips or simply strip lights, this flexible tape is the go-to solution for indirect indoor LED lighting — cove and crown moulding, under-cabinet task light, toe-kick glow, closet and pantry shelving, backlit mirrors, display cases, reception desks and LED ceiling light strip details. It comes in a warm 3000K white that flatters wood, stone and paint, and it hides inside an aluminum profile so all anyone sees is the light itself, never the diodes. SKU LCLS24V-48W-30K-IP66-30M.

Under the silicone you get Epistar 2835 SMD chips, 128 LEDs per meter for a dense, dot-free line, and a real output of 9.6W/m at 130 lm/W — bright enough to actually work under, not just decorate. The CRI 90+ rendering keeps countertops, fabrics and skin tones looking true, while the 120º beam spreads evenly with no hot spots. It runs on safe 24V DC, is fully dimmable, measures 8 mm wide on a 3 oz PCB, and can be cut every 62.5 mm (8 LEDs) to fit your exact opening. Maximum run is 10 m per feed. It is UL listed, rated IP66 and delivers a 50 000+ hour lifespan.

Contractors use it for condo kitchens and basement renovations across Canada; designers use it for hotel corridors, restaurant bars, boutique shelving and clinic reception walls; homeowners use it in garages, laundry rooms and home theatres. Because it needs a 24V DC driver, plan your power supply and your run lengths before you buy the tape. Want a different mood? The same 9.6W/m tape is offered in LED strip 24V 9.6W/m IP22 (27K) and LED strip 24V 9.6W/m IP22 (40K), or step up to the LED strip 19.2W/m 24V 96W 30K IP66 when you need more punch. Add it to your cart and light the line.

Built to run long and stay quiet
This LED tape light is built on an 8 mm wide flexible PCB with a 3 oz copper thickness — heavier copper spreads heat better along the run, which is exactly what keeps colour and output stable over years of daily use. The Epistar 2835 SMD chips are laid out at 128 LEDs per meter, a tight spacing that erases the "dotted" look when the strip is mounted close to a surface or behind a lens. The IP66 protection means the tape is coated, so it shrugs off dust, splashes and the humidity you get in bathrooms, kitchens and basements.

Light quality you can trust on a countertop
Colour rendering is where cheap tape falls apart. With a CRI 90+, this strip shows real wood grain, accurate paint colours and natural skin tones — critical over a vanity, a bar or a retail display. The 3000K warm white sits in that comfortable residential range that pairs well with brass, walnut and warm whites, while the 120º beam angle washes surfaces evenly. At 130 lm/W, you get usable task light from a strip that draws only 9.6W/m, a big drop compared to halogen or incandescent accent lighting.

Technical specifications
Chip: Epistar 2835 SMD
LEDs per meter: 128 pcs
Power: 9.6W/m ±10%
Efficacy: 130 lm/W
CRI: 90+
Colour temperature: 3000K
Beam angle: 120º
Voltage: 24V DC
Dimmable: Yes
PCB width: 8 mm
PCB thickness: 3 oz
Max length: 10 m
Cut size: 62.5 mm (8 LEDs)
UL: Yes
Protection rating: IP66
Lifespan: 50 000+ hours
SKU: LCLS24V-48W-30K-IP66-30M

Wiring, dimming and installation
The strip runs on 24V DC, so it needs a low-voltage driver sized for your total load: multiply 9.6W by the number of meters you are installing, then leave headroom on the power supply. Respect the 10 m maximum run per feed — for longer installations, feed separate sections from the driver rather than chaining one endless line, which prevents the voltage drop that makes the far end look dim. Cuts are made only on the marked points every 62.5 mm (8 LEDs), and the tape is dimmable through a compatible low-voltage dimming system. Mounting in an aluminum LED profile with a diffuser is strongly recommended: it protects the tape, manages heat and gives that clean linear line instead of visible diodes.

Where it works and what goes with it
Think under-cabinet task lighting, cove and ceiling perimeter details, floating shelves, stair and handrail lighting, closets, bar backsplashes, retail displays, office reception logos and hotel corridors. For colour-changing zones, look at the LED strip 14.4W/m 24V 72W RGB IP66; for a softer, lower-output accent line, the LED strip 4.8W/m 24V 24W 30K IP66 uses the same 24V platform; and if you prefer a cooler, crisper white, the LED strip 24V 9.6W/m IP22 (50K) is the same family. The full technical PDF spec sheet is available in the Documentation tab for your submittals and permit packages.
