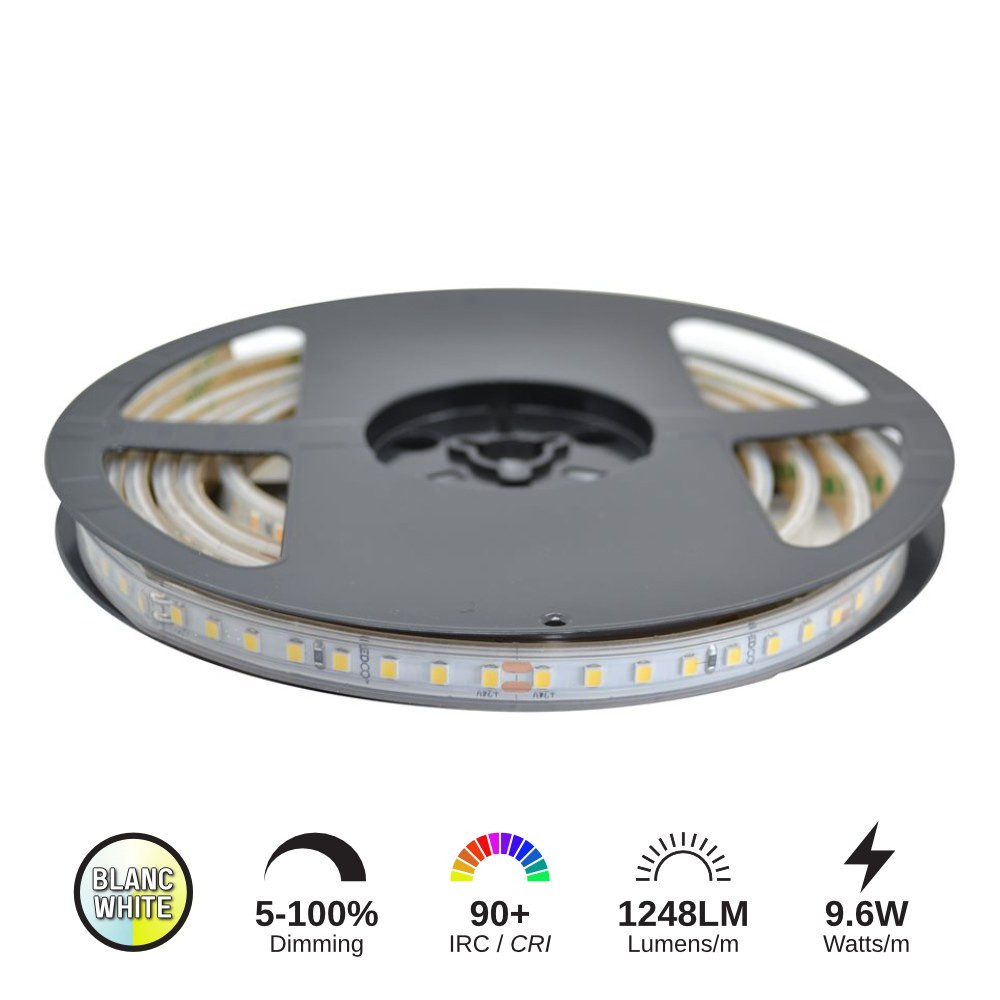

LED STRIP 9.6W/M - LCLS24V-48W-40K-IP66

Name: LED STRIP 9.6W/M - LCLS24V-48W-40K-IP66
Brand: LEDCO
SKU: LCLS24V-48W-40K-IP66
Price: 89.97 CAD
Availability: InStock

SKU: LCLS24V-48W-40K-IP66

Brand: LEDCO

Some projects just need a clean, continuous line of light — and that's exactly what this LED strip delivers. Sold under model LCLS24V-48W-40K-IP66, this 24V LED strip lighting (also called LED tape, LED ribbon, LED light strips or simply strip lights) is the flexible workhorse behind under-cabinet lighting, cove and ceiling coves, toe-kick accents, stair runs, shelving, display cases, signage and backlit millwork. Its neutral 4000K output makes it a favourite for kitchens, garages, workshops, retail displays and commercial fit-ups where you want crisp, modern white light instead of a yellow glow. Because it runs on low-voltage DC, it's easy to tuck into tight reveals, aluminum channels and custom woodwork — no bulky fixtures, no hot spots, just a smooth run of light wherever you need it.

Under the silicone you get 128 LEDs per meter using Epistar 2835 SMD chips, drawing 9.6W/m ±10% at 24V DC with an efficiency of 130 lm/W — bright enough to be a real work light, efficient enough to leave on all evening. The CRI 90+ rating means colours, wood grain, countertops and merchandise look true instead of washed out, and the 120º beam angle spreads light evenly so you avoid that dotted look. It's dimmable, UL listed, and rated for 50 000+ hours of life. The 8 mm wide PCB with 3 oz copper keeps heat under control, you can cut it every 62.5 mm (8 LEDs) to fit your run exactly, and a single run can go up to 10 m.

This version carries an IP66 protection rating, so it's built for damp and demanding spots: covered porches and soffits, garages, workshops, laundry rooms, walk-in coolers, commercial kitchens and bathroom coves where splashes and humidity are part of daily life — a real advantage in Canadian homes that swing from dry winters to muggy summers. Pair it with a 24V DC power supply sized to your total wattage, an aluminum profile with a diffuser for a seamless finish, and a compatible dimmer. Prefer a warmer tone or a different look? The same family is offered as LED strip 9.6W/m 24V 48W 30K IP66, in a brighter LED strip 19.2W/m 24V 96W 30K IP66, or in colour with the LED strip 14.4W/m 24V 72W RGB IP66. Measure your run, add up the watts, and light it up.

Built for real installations
This 24V LED tape light is built on an 8 mm wide printed circuit board with a 3 oz copper layer — a heavier copper weight that pulls heat away from the diodes and helps the strip hold its output over time. The light source is the Epistar 2835 SMD chip, with 128 LEDs per meter packed tightly enough to give a smooth, near-continuous line once it sits behind a diffuser. Cut marks are provided every 62.5 mm, which works out to every 8 LEDs, so you can trim a run to the exact length of a cabinet, a shelf or a cove without wasting material or leaving dark ends.

Light quality that flatters the room
With a CRI 90+ and a 4000K neutral white tone, this LED strip lighting renders colours honestly — important over a countertop where you're prepping food, on a workbench where you're matching wires, or in a display where merchandise has to look like itself. The 120º lighting angle spreads the beam wide, so the light washes a surface instead of pinpointing it, and the efficiency of 130 lm/W means you get a lot of usable light for only 9.6W per meter ±10%. It is also dimmable, so the same run can be a task light at full output and a soft ambient glow in the evening.

Technical specifications
Product code: LCLS24V-48W-40K-IP66
Chip: Epistar 2835 SMD
LEDs per meter: 128 pcs
Power: 9.6W/M ±10%
Efficacy: 130 LM/W
CRI: 90+
Colour temperature: 4000K
Lighting angle: 120º
Voltage: 24V DC
Dimmable: Yes
PCB width: 8 mm
PCB thickness: 3 oz.
Max length: 10 m
Cut size: 62.5 mm (8 LEDS)
UL: Yes
Lifespan: 50 000+ hours
Protection rating: IP66

Wiring, dimming and installation
Everything runs on 24V DC, so you need a low-voltage driver or power supply rated for your total load: multiply 9.6W by the number of meters, then leave headroom on the supply. Feed runs from one end and keep each continuous run within the 10 m maximum; longer projects should be split into separate runs fed from the source rather than daisy-chained end to end, which keeps brightness even from the first LED to the last. For dimming, use a system compatible with the 24V DC supply you choose. Mount the strip on a clean, dry, degreased surface, and for the best look drop it into an aluminum profile with a diffuser — the channel acts as a heat sink, hides the diodes and gives you that solid bar of light designers ask for.

Where it earns its place
The IP66 rating opens doors that an indoor-only tape can't: soffits and covered entries, garage benches, workshops, laundry and utility rooms, commercial kitchens, coolers and washroom coves. Indoors, it's the go-to for under-cabinet lighting, toe-kicks, open shelving, stair nosings, headboards, home theatres, reception desks and retail display cases. Need a different mood? The same 9.6W/m platform is offered in warm white as LED strip 9.6W/m 24V 48W 30K IP66, and if you want more punch, look at the LED strip 19.2W/m 24V 96W 30K IP66. For a lighter accent, the LED strip 4.8W/m 24V 24W 30K IP66 uses the same 24V system. The complete technical spec sheet for this model is available in the Documentation tab for your submittals and permit packages.

Technical Files
