LED SHEET CONNECTOR - SINGLE HEAD WITH 30CM WIRE - 20AWG - 2PIN - SUITABLE FOR CL-LSH-392-4824

Name: LED SHEET CONNECTOR - SINGLE HEAD WITH 30CM WIRE - 20AWG - 2PIN - SUITABLE FOR CL-LSH-392-4824
Brand: CANOLIGHT
SKU: CL-LSH-2P-XBW30
Price: 1.97 CAD
Availability: InStock

SKU: CL-LSH-2P-XBW30

Brand: CANOLIGHT

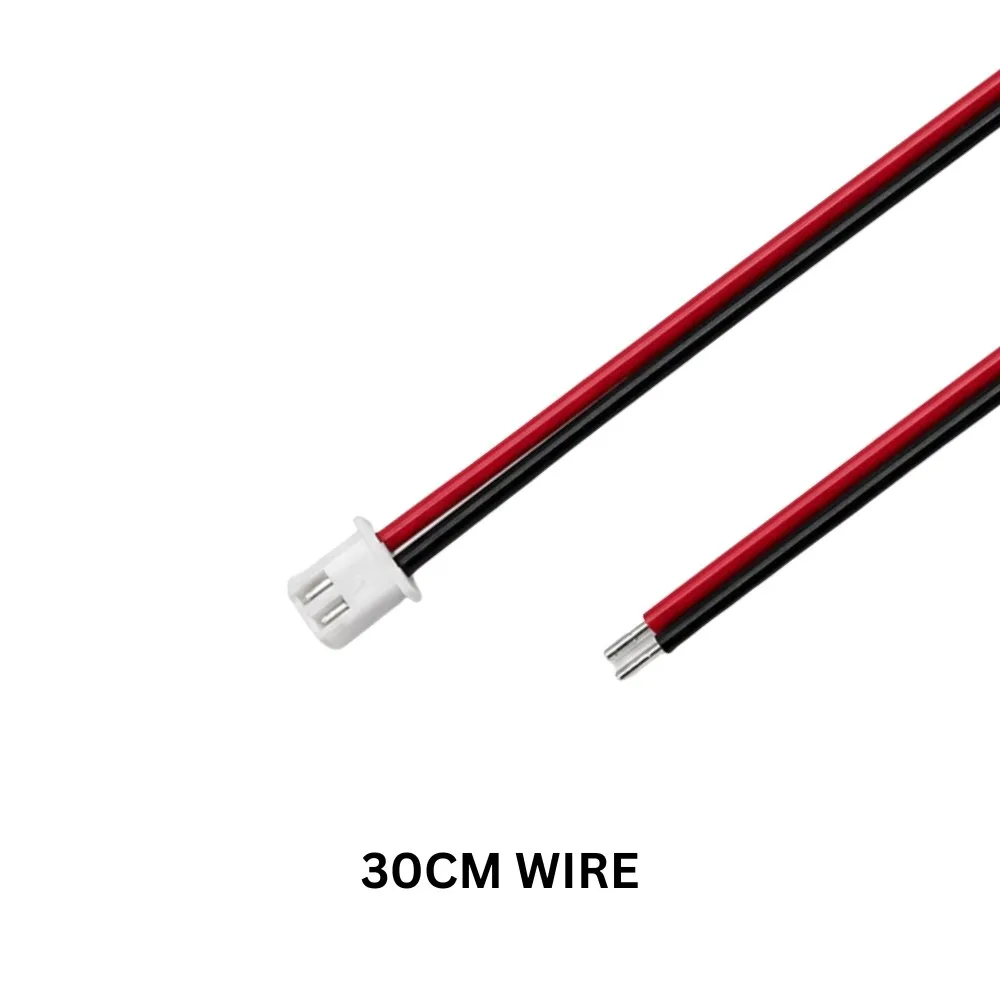

Need a clean, reliable way to bring power to your LED sheet? The CANOLIGHT LED sheet connector CL-LSH-2P-XBW30 is a single-head connector with a 30 cm wire, made to plug straight onto the CL-LSH-392-4824 LED sheet. Instead of soldering leads by hand, you get a ready-made 2-pin LED connector with a pre-attached lead that runs from the sheet to your power supply or to the next section of your wiring. It is the simple, tidy answer for anyone building a backlit panel, a lightbox or a custom LED lighting installation around that sheet.

The key details are clear and practical: a single head that connects to one edge of the sheet, a 2-pin layout that matches the sheet's two-conductor input, and a 30 cm lead in 20 AWG wire, a solid gauge that gives you enough copper for dependable low-voltage connections and enough length to reach a driver hidden behind a frame or inside a cabinet. Because the connector is purpose-made for the CL-LSH-392-4824, there is no guessing about fit: it snaps on, stays put and keeps your wiring neat and easy to service later.

This LED connector shines wherever an LED sheet is used: illuminated signs in shops and restaurants, backlit menu boards, display cases, lightboxes for photos or artwork, and under-shelf or behind-glass accent lighting in homes and offices across Canada. Contractors appreciate it on multi-panel jobs, where each sheet needs its own clean lead, and DIYers like that it turns a delicate soldering job into a quick plug-in step. It is designed specifically for the CL-LSH-392-4824 LED sheet, so order one for every sheet in your project and keep a spare on hand for future changes. Add the CL-LSH-2P-XBW30 to your order and make your LED sheet installation faster and cleaner.

A dedicated lead for the CL-LSH-392-4824 LED sheet
The CANOLIGHT CL-LSH-2P-XBW30 is a small part that solves a real problem: getting power into an LED sheet without fragile hand-soldered joints. It combines a single connector head with a 30 cm pre-wired lead, so one end clips onto the CL-LSH-392-4824 sheet and the other end is ready to be joined to your power supply or to an extension run. The result is a repeatable, professional connection you can reproduce on every panel of a project.

Wire gauge and pin layout
The lead is made with 20 AWG wire, a common gauge for low-voltage LED work that balances flexibility and current-carrying capacity. The connector uses a 2-pin configuration, one conductor for each side of the circuit, which keeps polarity simple to follow during installation. As with any LED product, respect the polarity marked on the sheet and on your power supply, make your final connections with the power off, and use proper connectors or junction methods at the supply end.

Installation tips
Plan where your driver will sit before mounting the sheet: the 30 cm lead is long enough to reach a supply tucked behind a sign face, inside a lightbox frame or behind a cabinet panel, while staying short enough to avoid messy loops. Route the wire away from sharp edges, secure it with clips or adhesive mounts, and leave a little slack at the connector so the sheet can be removed for maintenance without strain on the joint. On installations with several sheets, label each lead so troubleshooting stays quick.

Where it is used
This LED sheet connector is at home in backlit signage, retail displays, illuminated menu boards, showcases, photo and artwork lightboxes, and architectural accent details such as backlit shelves or glass panels. Sign shops, electricians and renovation contractors across Canada use this kind of plug-in lead to speed up assembly and keep every panel consistent, while homeowners appreciate a finish that looks clean and can be serviced easily.

Technical specifications
SKU: CL-LSH-2P-XBW30
Brand: CANOLIGHT
Type: LED sheet connector, single head
Pins: 2
Wire: 20 AWG
Lead length: 30 cm
Compatible with: CL-LSH-392-4824 LED sheet
Documentation: spec sheet available in the Documentation tab
