LED SHEET CONNECTOR - DOUBLE HEADS WITH 6CM WIRE - 20AWG - 5PIN - SUITABLE FOR CL-LSH-800-4824-RGBW

Name: LED SHEET CONNECTOR - DOUBLE HEADS WITH 6CM WIRE - 20AWG - 5PIN - SUITABLE FOR CL-LSH-800-4824-RGBW
Brand: CANOLIGHT
SKU: CL-LSH-5P-BBW6
Price: 1.97 CAD
Availability: InStock

SKU: CL-LSH-5P-BBW6

Brand: CANOLIGHT

For a seamless colour-changing surface, your RGBW sheets need to sit edge to edge, and so should their connections. The CANOLIGHT LED sheet connector CL-LSH-5P-BBW6 is a double-head connector with a short 6 cm wire, made for the CL-LSH-800-4824-RGBW LED sheet. A head on each end of a compact lead turns it into a short RGBW jumper that links one sheet straight to its neighbour, carrying every colour channel across without soldering and without loops of spare wire behind the panel. It is the tidy solution for continuous RGBW LED walls, signs and lightboxes.

It is built for close-coupled layouts: two connector heads, a 5-pin layout matching the five-conductor input of the CL-LSH-800-4824-RGBW, and a 6 cm lead in 20 AWG wire for a solid low-voltage link. The short length keeps the back of the assembly flat and clean, which helps when the depth behind a sign face or inside a lightbox is limited. Purpose-made for this sheet, each head seats securely and keeps the channel order consistent from sheet to sheet, so your colours stay perfectly in step across the whole surface.

This 5-pin LED connector shines in large, continuous colour installations: dynamic storefronts, bars and lounges, restaurants, event venues, retail displays, backlit acrylic or glass feature walls and home entertainment rooms, in homes and businesses across Canada. Combine your sheets with an appropriate RGBW controller and power supply, then plan one short jumper for every pair of adjoining sheets. Sign makers and electricians get a grid that goes together fast and looks uniform behind the scenes. Designed specifically for the CL-LSH-800-4824-RGBW LED sheet, the CL-LSH-5P-BBW6 keeps your colour panels linked neatly. Add it to your order today.

A compact jumper for adjoining CL-LSH-800-4824-RGBW sheets

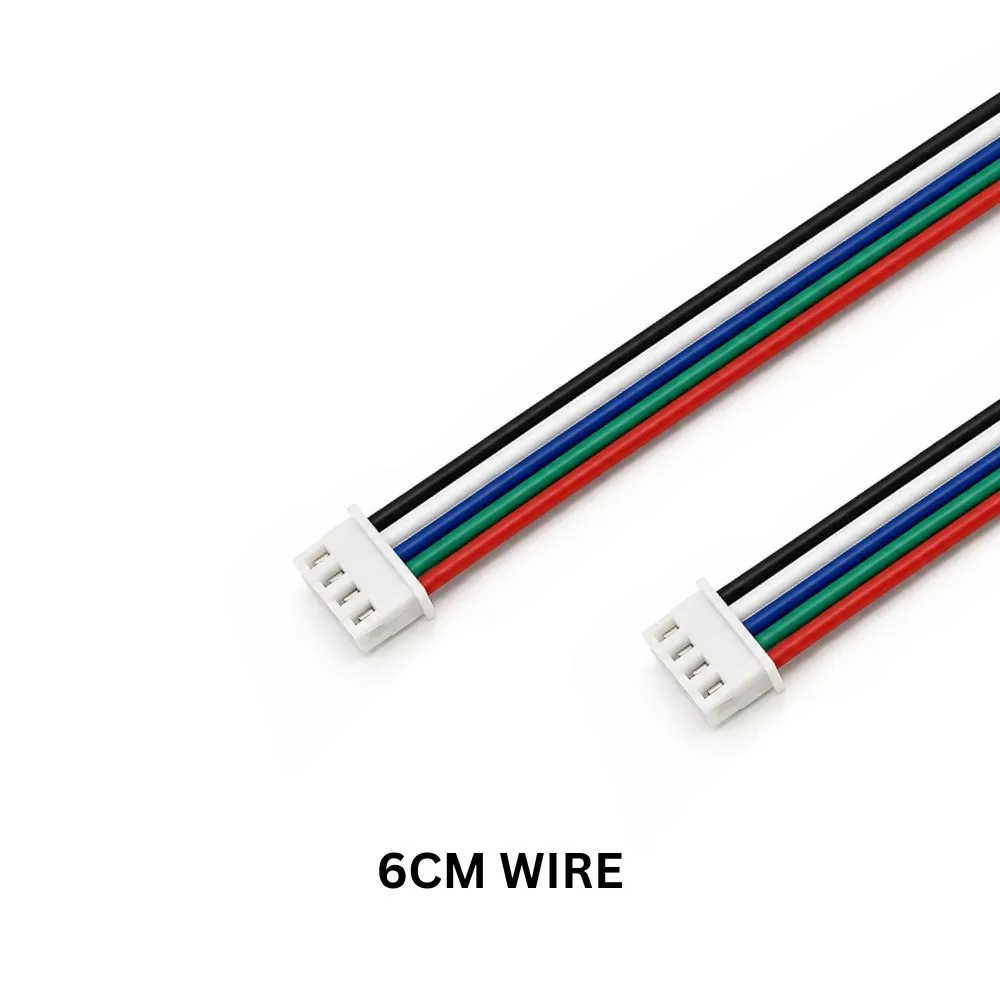

The CANOLIGHT CL-LSH-5P-BBW6 is made for layouts where RGBW LED sheets are mounted right next to each other. Rather than a long lead that must be folded out of the way, it uses a 6 cm pre-wired lead with a connector head on each end. Clip one head onto a CL-LSH-800-4824-RGBW sheet and the other onto the adjoining sheet: the link is short, direct and identical at every junction of your grid.

Wire gauge and pin layout
The lead is made with 20 AWG wire, a common gauge for low-voltage LED installations that provides a dependable link between panels. The connector has a 5-pin configuration that matches the five-conductor input of the sheet it is designed for, allowing the red, green, blue and white channels of an RGBW sheet to pass from one panel to the next. Keep every head oriented the same way, follow the markings on the sheet, and make or change connections only with the power off. If one panel responds with the wrong colour, check the orientation of its jumper first.

Installation tips
Because the lead is only 6 cm long, arrange adjoining sheets so their connection points face each other. Dry-fit the grid on your backing panel, confirm that each jumper reaches without tension, then fix the sheets in place. Start from the feed point of your RGBW controller and power supply and work outward. Avoid pinching the jumper between the sheet and the frame; where a wider gap or a frame member separates two sheets, a longer lead is the better choice for that junction.

Where it is used
This double-head LED sheet connector is at home in continuous colour-changing backlighting: storefront and interior signage, bars and lounges, restaurants, event and entertainment venues, trade-show booths, backlit acrylic, onyx or glass feature walls, retail displays and home theatres. Sign shops, lighting designers and electricians across Canada use short jumpers like this one to build clean RGBW sheet grids quickly and keep every panel uniform.

Technical specifications
SKU: CL-LSH-5P-BBW6
Brand: CANOLIGHT
Type: LED sheet connector, double head
Pins: 5
Wire: 20 AWG
Lead length: 6 cm
Compatible with: CL-LSH-800-4824-RGBW LED sheet
Documentation: spec sheet available in the Documentation tab
