LED SHEET CONNECTOR - DOUBLE HEADS WITH 30CM WIRE - 20AWG - 5PIN - SUITABLE FOR CL-LSH-800-4824-RGBW

Name: LED SHEET CONNECTOR - DOUBLE HEADS WITH 30CM WIRE - 20AWG - 5PIN - SUITABLE FOR CL-LSH-800-4824-RGBW
Brand: CANOLIGHT
SKU: CL-LSH-5P-BBW30
Price: 2.97 CAD
Availability: InStock

SKU: CL-LSH-5P-BBW30

Brand: CANOLIGHT

Colour-changing backlit walls and signs look spectacular, but only if every sheet is linked properly. The CANOLIGHT LED sheet connector CL-LSH-5P-BBW30 is a double-head connector with a 30 cm wire, made for the CL-LSH-800-4824-RGBW LED sheet. With a head on each end of its lead, it is a ready-made RGBW jumper: clip one end onto a sheet, the other onto the next, and every colour channel carries through from panel to panel without soldering. It is the clean way to build large RGBW LED surfaces for lightboxes, signs and feature walls.

The details match the job: two connector heads, a 5-pin layout that corresponds to the five-conductor input of the CL-LSH-800-4824-RGBW, and a 30 cm lead in 20 AWG wire for a dependable low-voltage link. The lead is long enough to span the gap between neighbouring sheets or to go around a frame member, while keeping the back of the installation orderly. Because it is purpose-made for this sheet, each head seats securely, and the channel order stays consistent from one sheet to the next, so colours stay in sync across the whole surface.

This 5-pin LED connector is at its best on multi-sheet colour projects: dynamic storefront signs, bars and restaurants with changing ambiances, event venues, retail displays, backlit feature walls and home theatres, in homes and businesses across Canada. Pair your sheets with a suitable RGBW controller and power supply, then use one jumper for every junction in your layout. Sign makers and electricians save assembly time and get uniform connections that are easy to service. Designed specifically for the CL-LSH-800-4824-RGBW LED sheet, the CL-LSH-5P-BBW30 is the simple way to link your colour panels. Add it to your order today.

A plug-in jumper for the CL-LSH-800-4824-RGBW LED sheet

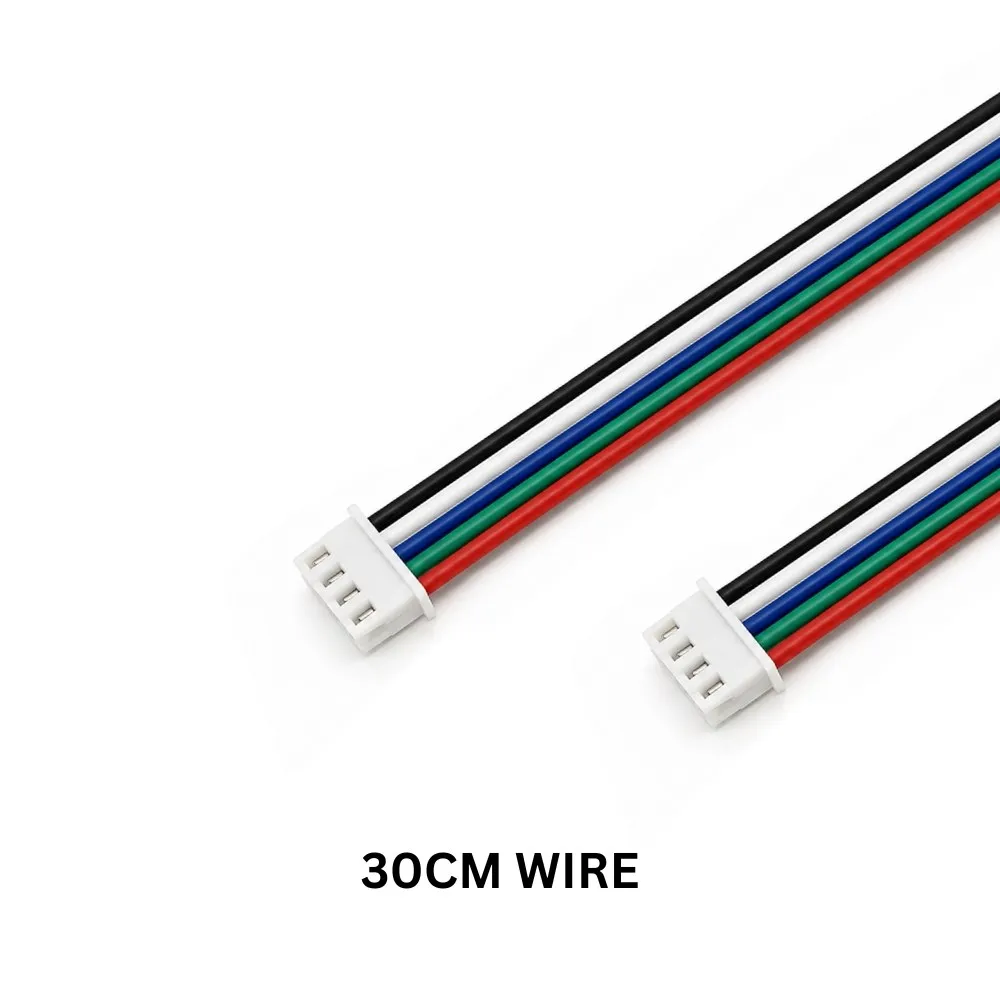

The CANOLIGHT CL-LSH-5P-BBW30 is built for installations where several RGBW LED sheets work together as one surface. It combines a 30 cm pre-wired lead with a connector head on each end. Each head clips onto a CL-LSH-800-4824-RGBW sheet, so you can chain panels one after another and carry every colour channel through the layout with a consistent, professional connection at each junction.

Wire gauge and pin layout
The lead uses 20 AWG wire, a common gauge in low-voltage LED lighting that offers a good balance of flexibility and current-carrying capacity. The connector has a 5-pin configuration matching the five-conductor input of the sheet it is designed for, which is what an RGBW sheet needs to receive its separate red, green, blue and white channels. Keep each head oriented the same way on every sheet, follow the markings on the sheet, and make or change connections only with the power supply off. If one panel shows the wrong colour, the orientation of a jumper is the first thing to check.

Installation tips
Lay out all your sheets before fixing them and confirm that the 30 cm lead comfortably spans each gap, including any rail or support to route around. Plan the feed point from your RGBW controller and power supply, then connect the sheets outward from there. Secure the wires with clips or adhesive mounts, keep them clear of sharp edges, and leave a little slack at each head so any sheet can be lifted out for service without disturbing its neighbours.

Where it is used
This double-head LED sheet connector is made for colour-changing backlighting on a large scale: storefront and interior signs, bars, lounges and restaurants, event and entertainment venues, trade-show booths, backlit acrylic or glass feature walls, retail displays and home theatres. Sign shops, lighting designers and electricians across Canada use plug-in jumpers like this to assemble RGBW sheet grids quickly and keep every panel uniform.

Technical specifications
SKU: CL-LSH-5P-BBW30
Brand: CANOLIGHT
Type: LED sheet connector, double head
Pins: 5
Wire: 20 AWG
Lead length: 30 cm
Compatible with: CL-LSH-800-4824-RGBW LED sheet
Documentation: spec sheet available in the Documentation tab
