LED SHEET CONNECTOR - DOUBLE HEADS WITH 6CM WIRE - 20AWG - 3PIN - SUITABLE FOR CL-LSH-784-4824-TW

Name: LED SHEET CONNECTOR - DOUBLE HEADS WITH 6CM WIRE - 20AWG - 3PIN - SUITABLE FOR CL-LSH-784-4824-TW
Brand: CANOLIGHT
SKU: CL-LSH-3P-BBW6
Price: 1.97 CAD
Availability: InStock

SKU: CL-LSH-3P-BBW6

Brand: CANOLIGHT

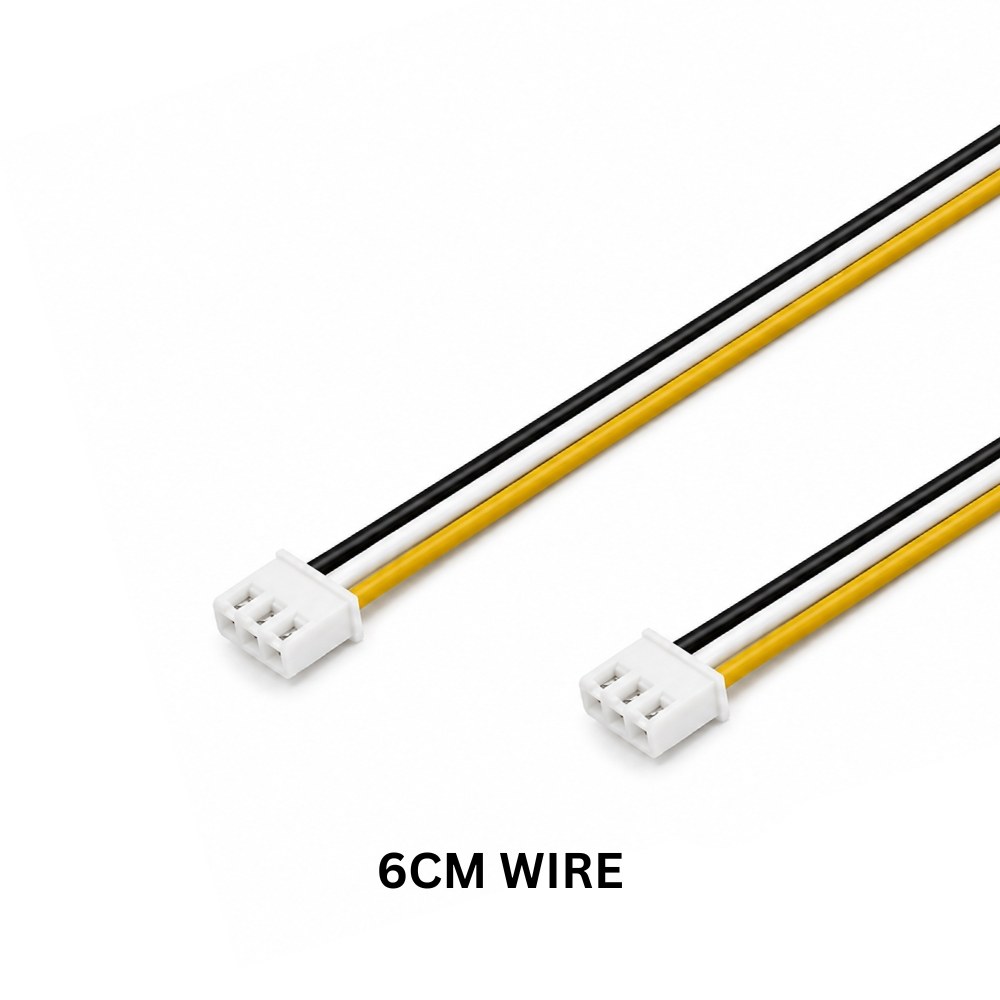

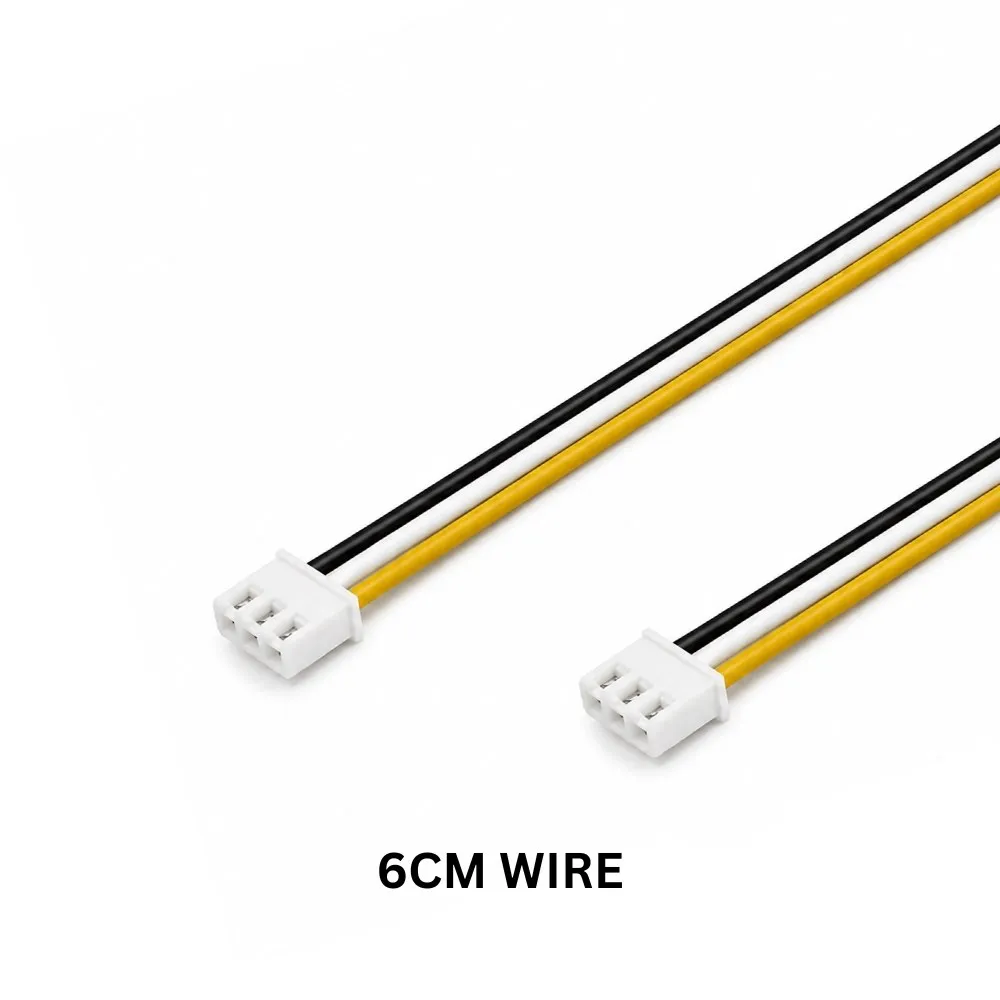

When your LED sheets sit edge to edge, a long cable only gets in the way. The CANOLIGHT LED sheet connector CL-LSH-3P-BBW6 is a double-head connector with a short 6 cm wire, built for the CL-LSH-784-4824-TW LED sheet. With a head on each end of a compact lead, it acts as a short jumper that links one sheet directly to its neighbour, with no soldering and no loose loops of wire behind the panel. It is the tidy choice for seamless backlit surfaces, lightboxes and illuminated signs where sheets are mounted side by side.

Everything about it is designed for close-coupled installations: two connector heads, a 3-pin layout matching the three-conductor input of the CL-LSH-784-4824-TW, and a 6 cm lead in 20 AWG wire for a solid low-voltage link. The short length keeps the back of your assembly flat and uncluttered, which matters when the space between the sheet and the sign face or cabinet wall is tight. Because it is purpose-made for that sheet, each head clips on securely and your wiring stays clean, consistent and easy to service.

This 3-pin LED connector is ideal for large, continuous backlit areas: store signage, restaurant menu walls, illuminated counters and bars, backlit onyx or acrylic features, display walls and oversized lightboxes, in homes and businesses across Canada. Sign makers appreciate how quickly a grid of sheets comes together, and electricians like the uniform look of every junction. It is designed specifically for the CL-LSH-784-4824-TW LED sheet: plan one jumper for each pair of adjoining sheets and keep a spare for later changes. Add the CL-LSH-3P-BBW6 to your order and link your LED sheets neatly, edge to edge.

A compact jumper for adjoining CL-LSH-784-4824-TW sheets
The CANOLIGHT CL-LSH-3P-BBW6 is made for layouts where LED sheets are mounted right next to one another. Instead of a long lead that has to be folded and taped out of the way, it uses a 6 cm pre-wired lead with a connector head on each end. Clip one head onto a CL-LSH-784-4824-TW sheet and the other onto the adjoining sheet, and the link is done: short, direct and identical at every junction.

Wire gauge and pin layout
The lead is made with 20 AWG wire, a common gauge for low-voltage LED installations that provides a reliable link between panels. The connector has a 3-pin configuration that matches the three-conductor input of the sheet it is designed for. Keep every head oriented the same way from sheet to sheet, follow the markings printed on the sheet, and make or change connections only with the power supply switched off.

Installation tips
Because the lead is only 6 cm long, plan your layout so adjoining sheets meet with their connection points facing each other. Dry-fit the sheets on your backing panel first, confirm that each jumper reaches without tension, then fix the sheets in place. Leave the jumper free of stress at both heads, and avoid pinching it between the sheet and the frame. Where a gap is wider or a frame member separates two sheets, a longer lead is the better choice for that junction.

Where it is used
This double-head LED sheet connector is at home in continuous backlit surfaces: storefront and interior signs, illuminated reception desks and bars, backlit stone, onyx or acrylic panels, display and feature walls, trade-show booths and large lightboxes. Sign shops, electricians and renovation contractors across Canada use short jumpers like this to build clean sheet grids quickly, and property owners get an installation that looks tidy and is simple to maintain.

Technical specifications
SKU: CL-LSH-3P-BBW6
Brand: CANOLIGHT
Type: LED sheet connector, double head
Pins: 3
Wire: 20 AWG
Lead length: 6 cm
Compatible with: CL-LSH-784-4824-TW LED sheet
Documentation: spec sheet available in the Documentation tab
