LED SHEET CONNECTOR - DOUBLE HEADS WITH 6CM WIRE - 20AWG - 2PIN - SUITABLE FOR CL-LSH-392-4824

Name: LED SHEET CONNECTOR - DOUBLE HEADS WITH 6CM WIRE - 20AWG - 2PIN - SUITABLE FOR CL-LSH-392-4824
Brand: CANOLIGHT
SKU: CL-LSH-2P-BBW6
Price: 1.97 CAD
Availability: InStock

SKU: CL-LSH-2P-BBW6

Brand: CANOLIGHT

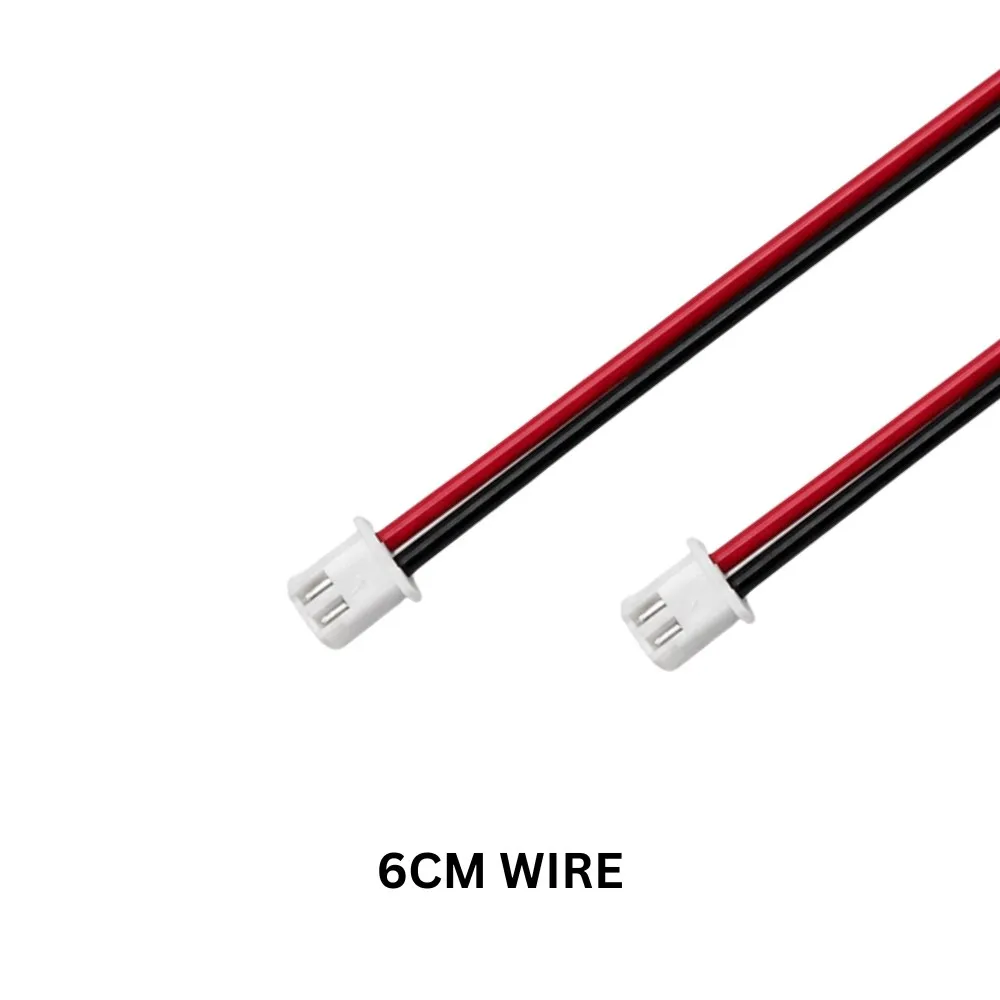

When LED sheets sit side by side, you want a connection that is short, neat and invisible behind the panel. The CANOLIGHT LED sheet connector with double heads and a 6 cm wire does exactly that. Model CL-LSH-2P-BBW6 is a 2-pin connector designed for the CANOLIGHT CL-LSH-392-4824 LED sheet: a connector head at each end of a short 20AWG lead joins two neighbouring sheets so they work together as one continuous lit surface. It is the compact, flexible connector of choice for tightly tiled backlit walls, lightboxes and illuminated counters.

The short 6 cm wire is ideal when sheets are laid close together: there is no excess cable to bundle, fold or hide, so the back of the panel stays clean and the sheets can be placed edge to edge for an even glow. The 20AWG conductors and the double-head design make the link simple: one head into the first sheet, one into the next, and the connection is made. With no soldering on site, assembly is faster and tidier, and a sheet can be unplugged and replaced later without disturbing the rest of the installation.

Choose this LED sheet connector for backlit onyx and marble walls, illuminated bar fronts, reception desks, retail lightboxes, menu boards, signage and glowing ceiling panels in homes and businesses across Canada. It is designed for the CANOLIGHT CL-LSH-392-4824 LED sheet, so confirm that your sheets match that model before ordering. Count every link between adjacent sheets, order one connector for each and enjoy a backlit surface that is as clean behind as it is beautiful in front.

A short link for adjacent sheets
Large backlit surfaces are usually built from several LED sheets laid next to each other. The CANOLIGHT CL-LSH-2P-BBW6 LED sheet connector is made for exactly that layout: a connector head at each end of a 6 cm lead plugs into two adjacent sheets and carries the connection from one to the next. The short wire keeps the sheets close together, so the lit surface looks continuous and the wiring behind it stays compact.

Specifications
Model: CL-LSH-2P-BBW6
Type: double-head sheet-to-sheet connector
Pins: 2
Wire length: 6 cm
Wire gauge: 20AWG
Designed for: CANOLIGHT CL-LSH-392-4824 LED sheet
Consult the spec sheet in the Documentation tab for complete details.

Installation tips
Plan the arrangement of your LED sheets behind the diffusing material and identify every link between neighbouring sheets; each one needs a connector. With the power switched off, plug one head into the first sheet and the other into the adjacent sheet, pushing each one fully home and respecting the 2-pin orientation so polarity carries through correctly. Because the lead is short, position the sheets so the connection points face each other before fixing them down. Test the assembly before closing the panel, and have the driver and all line-voltage wiring installed according to local electrical code by a qualified electrician.

Where it fits best
This 2-pin sheet connector is the right choice wherever sheets are tiled closely: backlit stone, onyx and quartz feature walls, illuminated bar dies and reception counters, shallow lightboxes for retail and trade shows, backlit menu boards, glowing ceiling panels and custom furniture with lit tops or fronts. Fabricators and sign shops use it to assemble large lit panels quickly and cleanly in the shop, then reconnect them on site with minimal cable management.

Compatibility and choosing a length
As its name indicates, this connector is designed for the CANOLIGHT CL-LSH-392-4824 LED sheet. Use it where sheets are adjacent; where sheets must be spaced apart or routed around a support, a connector with a longer lead is the better option. Confirm your sheet model before ordering and see the spec sheet in the Documentation tab for full details.
