LED SHEET CONNECTOR - DOUBLE HEADS WITH 30CM WIRE - 20AWG - 3PIN - SUITABLE FOR CL-LSH-784-4824-TW

Name: LED SHEET CONNECTOR - DOUBLE HEADS WITH 30CM WIRE - 20AWG - 3PIN - SUITABLE FOR CL-LSH-784-4824-TW
Brand: CANOLIGHT
SKU: CL-LSH-3P-BBW30
Price: 1.97 CAD
Availability: InStock

SKU: CL-LSH-3P-BBW30

Brand: CANOLIGHT

Building a larger backlit surface with several LED sheets? The CANOLIGHT LED sheet connector CL-LSH-3P-BBW30 is a double-head connector with a 30 cm wire, made for the CL-LSH-784-4824-TW LED sheet. With a connector head on each end of its lead, it works as a ready-made jumper cable: clip one end onto a sheet and the other onto the next, and your panels are linked without a single solder joint. It is the clean, repeatable way to wire a lightbox, an illuminated sign or any custom LED lighting project built around that sheet.

The details are straightforward and practical: two connector heads, a 3-pin layout that matches the three-conductor input of the CL-LSH-784-4824-TW, and a 30 cm lead in 20 AWG wire, a solid gauge for dependable low-voltage connections. The lead is long enough to bridge the gap between neighbouring sheets or to reach around a frame member, yet short enough to keep the back of your installation tidy. Because it is purpose-made for that sheet, fit is never a guess: each head snaps on, stays secure and keeps your wiring neat and serviceable.

This 3-pin LED connector is at its best on multi-sheet jobs: large backlit signs for stores and restaurants, illuminated wall features, display walls, stretch-ceiling or glass-panel backlighting and oversized lightboxes, in homes and businesses across Canada. Sign makers and electricians save time on assembly, and every link between sheets looks the same, which makes future maintenance simple. It is designed specifically for the CL-LSH-784-4824-TW LED sheet: count one connector for each junction in your layout and keep a spare on hand. Add the CL-LSH-3P-BBW30 to your order and connect your LED sheets quickly and cleanly.

A plug-in jumper for the CL-LSH-784-4824-TW LED sheet
The CANOLIGHT CL-LSH-3P-BBW30 answers a common question on larger installations: how do you link several LED sheets together without fragile hand-soldered joints? Its answer is a 30 cm pre-wired lead fitted with a connector head on each end. Each head clips onto the CL-LSH-784-4824-TW sheet, so you can chain panels one after the other and get a consistent, professional connection at every junction.

Wire gauge and pin layout
The lead uses 20 AWG wire, a common gauge in low-voltage LED work that offers a good balance of flexibility and current-carrying capacity. The connector has a 3-pin configuration, matching the three-conductor input of the sheet it is made for. Keep the orientation of each head consistent from one sheet to the next, follow the markings on the sheet, and always make or change connections with the power supply turned off.

Installation tips
Lay out all your sheets before fixing them in place and check that the 30 cm lead comfortably spans each gap, including any frame rail or support you need to go around. Route the wires away from sharp edges, secure them with clips or adhesive mounts, and leave a small amount of slack at every head so a sheet can be lifted out for service without pulling on its neighbours. On large layouts, a quick sketch showing each jumper and the feed point from the power supply makes troubleshooting much faster later on.

Where it is used
This double-head LED sheet connector is made for projects where one sheet is not enough: backlit signage for retail and hospitality, illuminated feature walls, backlit glass or acrylic panels, display cases, trade-show booths and large lightboxes for photos and artwork. Sign shops, electricians and renovation contractors across Canada rely on plug-in jumpers like this one to speed up assembly and keep every panel uniform, while owners appreciate a result that is easy to maintain.

Technical specifications
SKU: CL-LSH-3P-BBW30
Brand: CANOLIGHT

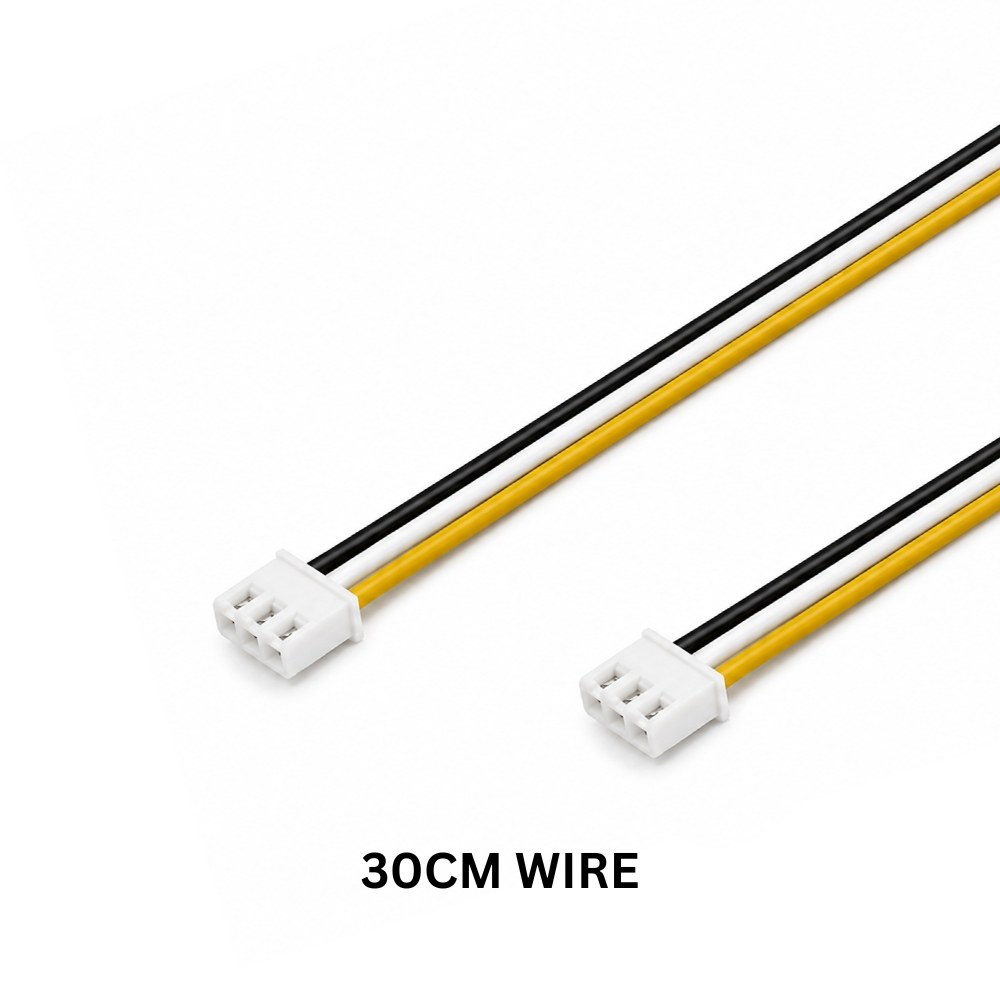

Type: LED sheet connector, double head
Pins: 3
Wire: 20 AWG
Lead length: 30 cm
Compatible with: CL-LSH-784-4824-TW LED sheet
Documentation: spec sheet available in the Documentation tab
