LED SHEET CONNECTOR - SINGLE HEAD WITH 30CM WIRE - 20AWG - 5PIN - SUITABLE FOR CL-LSH-800-4824-RGBW

Name: LED SHEET CONNECTOR - SINGLE HEAD WITH 30CM WIRE - 20AWG - 5PIN - SUITABLE FOR CL-LSH-800-4824-RGBW
Brand: CANOLIGHT
SKU: CL-LSH-5P-XBW30
Price: 2.97 CAD
Availability: InStock

SKU: CL-LSH-5P-XBW30

Brand: CANOLIGHT

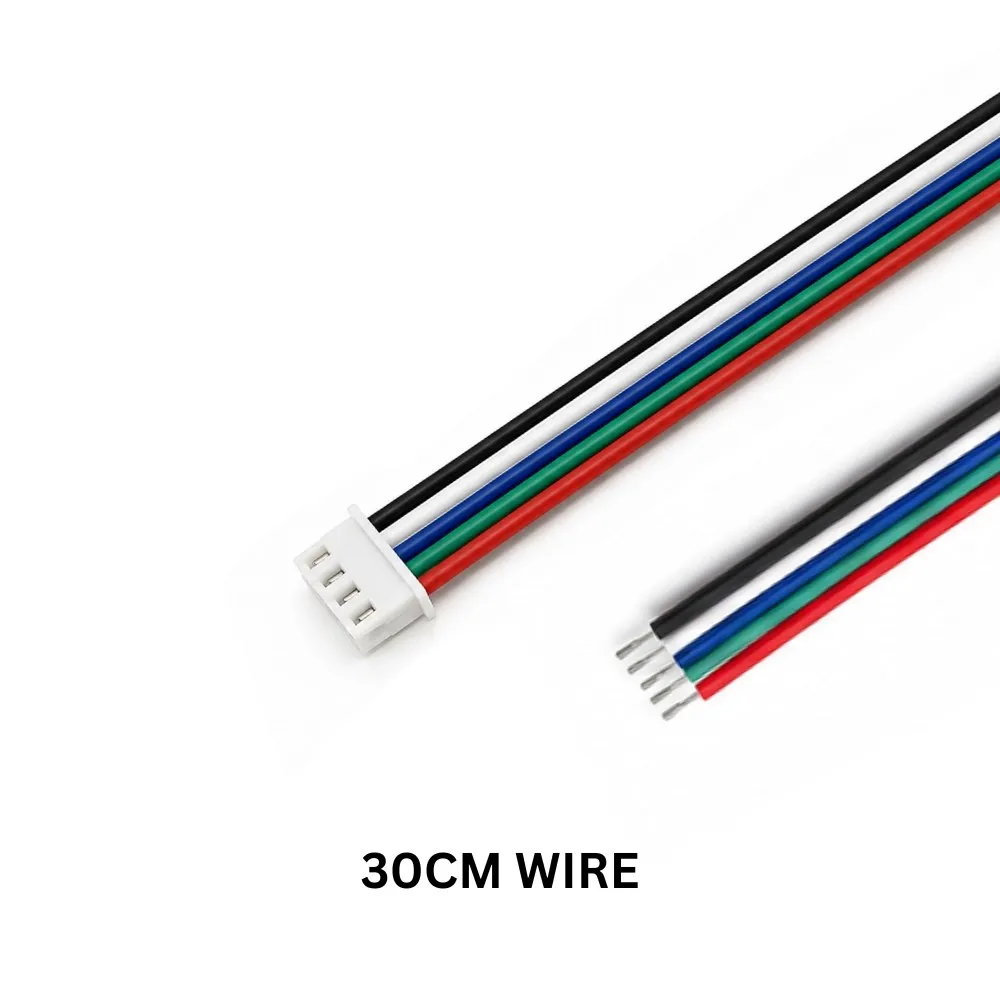

A colour-changing LED sheet is only as good as the connection that feeds it. The CANOLIGHT LED sheet connector CL-LSH-5P-XBW30 is a single-head connector with a 30 cm wire, made for the CL-LSH-800-4824-RGBW LED sheet. One end clips onto the sheet; the other is a pre-wired lead ready to be joined to your RGBW controller output or power circuit. It brings every colour channel into the sheet cleanly, with no soldering on the panel and no doubt about fit, so your backlit sign, lightbox or feature wall is up and glowing in less time.

The essentials are clear: a single connector head, a 5-pin layout that matches the five-conductor input of the CL-LSH-800-4824-RGBW, and a 30 cm lead in 20 AWG wire for a dependable low-voltage connection. The length lets you reach a controller or power supply hidden behind a frame, inside a sign cabinet or above a ceiling, while keeping the back of your installation orderly. Because it is purpose-made for this sheet, the head seats securely and keeps the channel order right, so red, green, blue and white all respond the way your controller intends.

This 5-pin RGBW LED connector is the starting point of every CL-LSH-800-4824-RGBW project: dynamic storefront signs, bars and restaurants with mood lighting, event spaces, retail displays, backlit acrylic or glass walls and home theatres, in homes and businesses across Canada. Sign makers and electricians use it to deliver a consistent, professional feed to each sheet or group of sheets, and DIYers like replacing a tricky solder job with a simple plug-in step. Plan one for every feed point in your layout and keep a spare on hand. Add the CL-LSH-5P-XBW30 to your order and bring your colour panels to life.

The feed connection for the CL-LSH-800-4824-RGBW LED sheet
The CANOLIGHT CL-LSH-5P-XBW30 is the part that carries power and colour signals into an RGBW LED sheet. It pairs a single connector head with a 30 cm pre-wired lead: the head clips onto the CL-LSH-800-4824-RGBW sheet, and the free end is ready to connect to your controller output or an extension run. There are no fragile solder joints on the sheet itself, and every panel in your project receives the same clean, repeatable connection.

Wire gauge and pin layout
The lead uses 20 AWG wire, a common gauge in low-voltage LED lighting that balances flexibility with current-carrying capacity. The connector has a 5-pin configuration matching the five-conductor input of the sheet it is designed for, so the red, green, blue and white channels each have their own path. Identify every conductor before connecting the free end, match them to the corresponding terminals on your RGBW controller, and make the final connection with the power off. If a colour responds incorrectly at start-up, recheck the conductor order at the controller.

Installation tips
Choose where the controller and power supply will be located before fixing the sheet: behind a sign face, inside a lightbox frame, in a cabinet or in a ceiling space. The 30 cm lead gives you enough reach to get there neatly. Secure the wire with clips or adhesive mounts, keep it away from sharp edges and heat, and leave a little slack at the head so the sheet can be removed for service without strain. On larger layouts, note each feed point on a simple sketch for faster troubleshooting later.

Where it is used
This single-head LED sheet connector belongs in any colour project built with the CL-LSH-800-4824-RGBW: colour-changing backlighting for storefronts and interior signs, bars, lounges and restaurants, event venues, trade-show booths, retail displays, backlit acrylic or glass feature walls and home theatres. Sign shops, lighting designers and electricians across Canada rely on plug-in leads like this one to speed up assembly and keep every feed consistent.

Technical specifications
SKU: CL-LSH-5P-XBW30
Brand: CANOLIGHT
Type: LED sheet connector, single head
Pins: 5
Wire: 20 AWG
Lead length: 30 cm
Compatible with: CL-LSH-800-4824-RGBW LED sheet
Documentation: spec sheet available in the Documentation tab

Technical Files
