LED SHEET CONNECTOR - SINGLE HEAD WITH 30CM WIRE - 20AWG - 3PIN - SUITABLE FOR CL-LSH-784-4824-TW

Name: LED SHEET CONNECTOR - SINGLE HEAD WITH 30CM WIRE - 20AWG - 3PIN - SUITABLE FOR CL-LSH-784-4824-TW
Brand: CANOLIGHT
SKU: CL-LSH-3P-XBW30
Price: 1.97 CAD
Availability: InStock

SKU: CL-LSH-3P-XBW30

Brand: CANOLIGHT

Every LED sheet installation starts with one connection: the feed from your power supply. The CANOLIGHT LED sheet connector CL-LSH-3P-XBW30 handles it cleanly. It is a single-head connector with a 30 cm wire, made for the CL-LSH-784-4824-TW LED sheet: one end clips onto the sheet, the other end is a pre-wired lead ready to be joined to your driver or to the rest of your circuit. No soldering on the sheet, no guesswork about fit, just a neat power lead that gets your backlit panel, lightbox or illuminated sign up and running quickly.

The essentials are simple: a single connector head, a 3-pin layout that matches the three-conductor input of the CL-LSH-784-4824-TW, and a 30 cm lead in 20 AWG wire for a dependable low-voltage connection. The length gives you room to reach a power supply hidden behind a frame, inside a sign cabinet or under a counter, while keeping the back of your installation tidy. Because the connector is purpose-made for this sheet, it seats securely and keeps your LED wiring organized and easy to service later on.

This 3-pin LED connector is the starting point of every CL-LSH-784-4824-TW project: backlit store and restaurant signs, illuminated menu boards, display cases, backlit shelves and glass panels, feature walls and lightboxes for photos or artwork, in homes and businesses across Canada. Sign makers and electricians use it to deliver a consistent, professional feed to each sheet or group of sheets, and DIYers appreciate how it turns a delicate job into a quick plug-in step. Plan one for every feed point in your layout and keep a spare handy. Add the CL-LSH-3P-XBW30 to your order and power your LED sheet the clean way.

The feed connection for the CL-LSH-784-4824-TW LED sheet
The CANOLIGHT CL-LSH-3P-XBW30 is the part that brings power into an LED sheet. It pairs a single connector head with a 30 cm pre-wired lead: the head clips onto the CL-LSH-784-4824-TW sheet, and the free end of the lead is ready to connect to your power supply or to an extension run. That means no fragile solder joints on the sheet itself and a clean, repeatable connection on every panel you install.

Wire gauge and pin layout
The lead is made with 20 AWG wire, a common gauge in low-voltage LED work that balances flexibility and current-carrying capacity. The connector uses a 3-pin configuration matching the three-conductor input of the sheet it is designed for. Identify each conductor before connecting the free end, follow the markings on the sheet and on your power supply, and always make the final connection with the power off. Use approved connectors or a junction box at the supply end, as required for your installation.

Installation tips
Decide where the power supply will live before fixing the sheet: behind a sign face, inside a lightbox frame, in a cabinet or above a ceiling. The 30 cm lead gives you enough reach to get there cleanly without leftover loops. Secure the wire with clips or adhesive mounts, keep it away from sharp edges and heat sources, and leave a little slack at the head so the sheet can be removed for maintenance without strain. On multi-sheet layouts, mark each feed point on a simple sketch for faster troubleshooting.

Where it is used
This single-head LED sheet connector belongs in any project built with the CL-LSH-784-4824-TW: backlit signage for shops, restaurants and offices, illuminated menu boards, retail displays and showcases, backlit shelving, glass or acrylic features, trade-show booths and lightboxes. Sign shops, electricians and renovation contractors across Canada rely on plug-in leads like this one to speed up assembly and keep every feed consistent.

Technical specifications
SKU: CL-LSH-3P-XBW30
Brand: CANOLIGHT

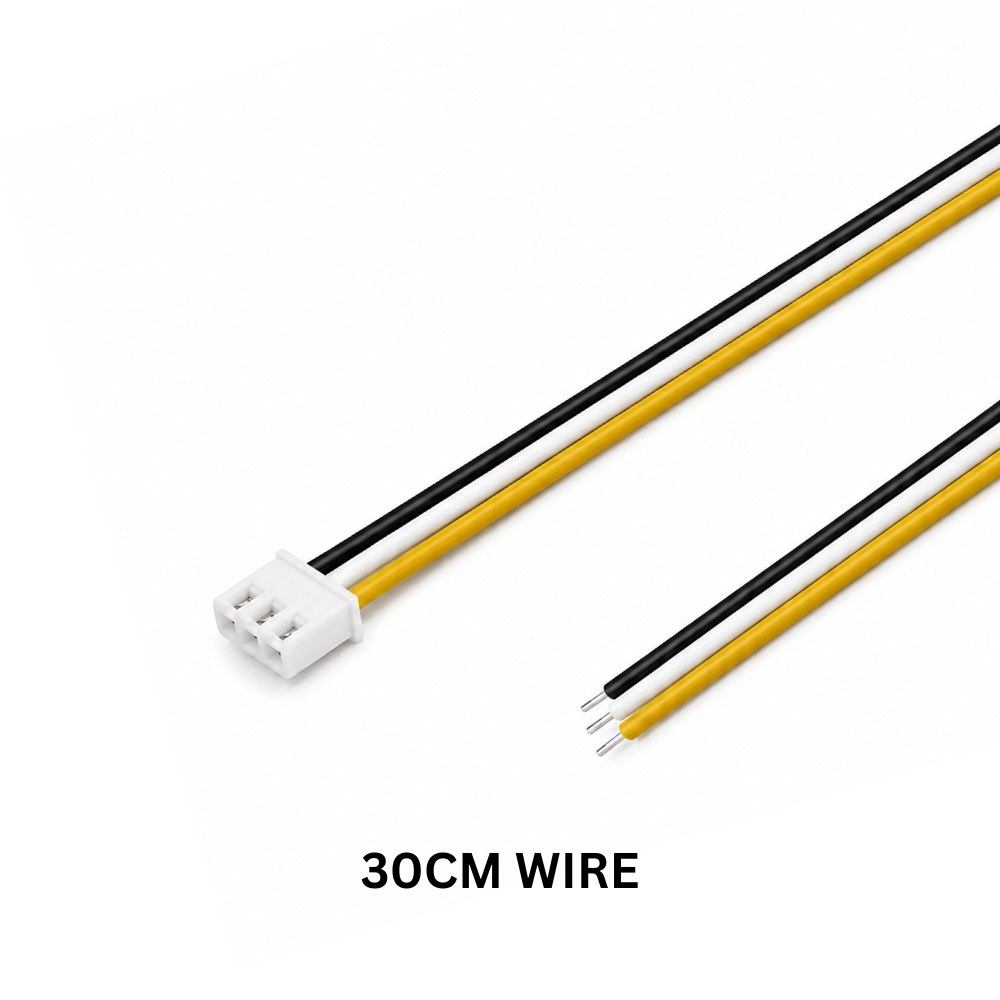

Type: LED sheet connector, single head
Pins: 3
Wire: 20 AWG
Lead length: 30 cm
Compatible with: CL-LSH-784-4824-TW LED sheet
Documentation: spec sheet available in the Documentation tab
