LED SHEET CONNECTOR - DOUBLE HEADS WITH 30CM WIRE - 20AWG - 2PIN - SUITABLE FOR CL-LSH-392-4824

Name: LED SHEET CONNECTOR - DOUBLE HEADS WITH 30CM WIRE - 20AWG - 2PIN - SUITABLE FOR CL-LSH-392-4824
Brand: CANOLIGHT
SKU: CL-LSH-2P-BBW30
Price: 1.97 CAD
Availability: InStock

SKU: CL-LSH-2P-BBW30

Brand: CANOLIGHT

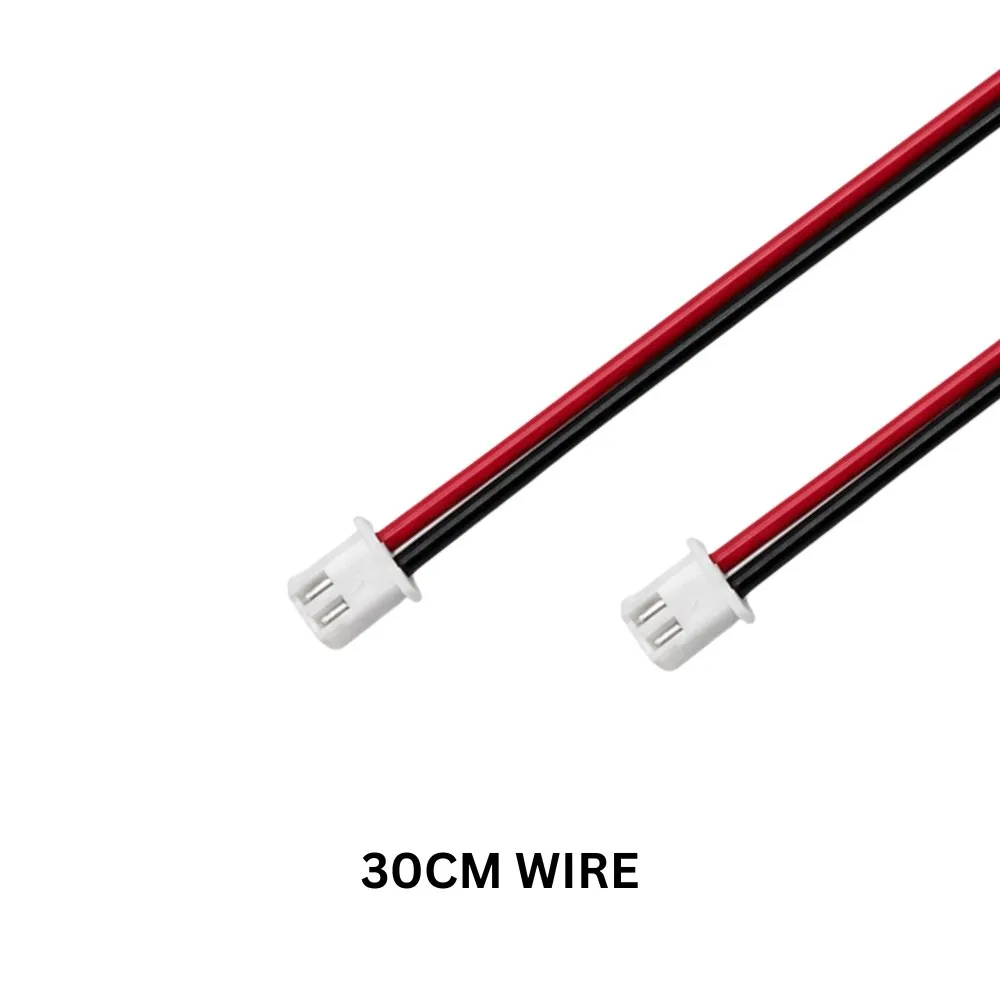

Link LED sheets together neatly and without soldering using the CANOLIGHT LED sheet connector with double heads and a 30 cm wire. Model CL-LSH-2P-BBW30 is a 2-pin connector built for the CANOLIGHT CL-LSH-392-4824 LED sheet: a connector head at each end of a 20AWG lead lets you join two sheets, or carry the connection from one panel to the next, across a gap. It is the practical flexible connector for backlit walls, lightboxes, illuminated counters and any project where several LED sheets have to work together as one glowing surface.

The 30 cm wire gives you real flexibility in layout. You can space sheets apart behind a large panel, jump across a structural support, route the connection around a frame or reach a sheet mounted on a different plane, all while keeping the wiring tidy. The 20AWG conductors and the double-head design make the link simple and repeatable: plug one head into the first sheet, the other into the second, and the connection is done. There is no soldering on site, so installation is faster, cleaner and easier to service later if a sheet needs to be removed.

Use this LED sheet connector for backlit stone and onyx features, illuminated bar fronts and reception desks, retail lightboxes, menu boards, signage and ceiling panels in homes and businesses across Canada. It is designed for the CANOLIGHT CL-LSH-392-4824 LED sheet, so check that your sheets match that model before ordering. Plan one connector for every sheet-to-sheet link in your layout and put your backlit project together with confidence.

Joining LED sheets the easy way
LED sheets are the go-to light source for large backlit surfaces, but most projects need more than one sheet. The CANOLIGHT CL-LSH-2P-BBW30 LED sheet connector links them together: a connector head at each end of a 30 cm lead plugs into two sheets so the connection carries from the first to the second. It lets you build a larger lit area out of several sheets while keeping the installation modular and easy to work on.

Specifications
Model: CL-LSH-2P-BBW30
Type: double-head sheet-to-sheet connector
Pins: 2
Wire length: 30 cm
Wire gauge: 20AWG
Designed for: CANOLIGHT CL-LSH-392-4824 LED sheet
Full details are available in the spec sheet in the Documentation tab.

Planning and installation
Lay out your LED sheets on the back of the surface you want to illuminate and decide how they will be linked. Count every sheet-to-sheet link and plan one connector for each. With the power off, plug each head into its sheet, making sure it is fully seated and that the 2-pin orientation is respected so the polarity is carried correctly from sheet to sheet. Route the 30 cm lead along the frame or support, secure it so it does not hang or rub on sharp edges, then test the whole assembly before closing the panel. The driver and all line-voltage wiring should be installed according to local electrical code by a qualified electrician.

Applications
This 2-pin sheet connector is ideal for backlit onyx, marble and quartz walls, illuminated bar and reception counters, retail and trade-show lightboxes, backlit menu boards and signage, illuminated ceiling panels and custom furniture with glowing surfaces. Fabricators appreciate being able to pre-assemble a panel in the shop and reconnect it quickly on site, while designers appreciate the freedom that the wire length gives when positioning sheets behind irregular shapes.

Compatibility
As its name states, this connector is made for the CANOLIGHT CL-LSH-392-4824 LED sheet. Confirm the model of your sheets before ordering, and refer to the spec sheet in the Documentation tab for the connector's complete details.
