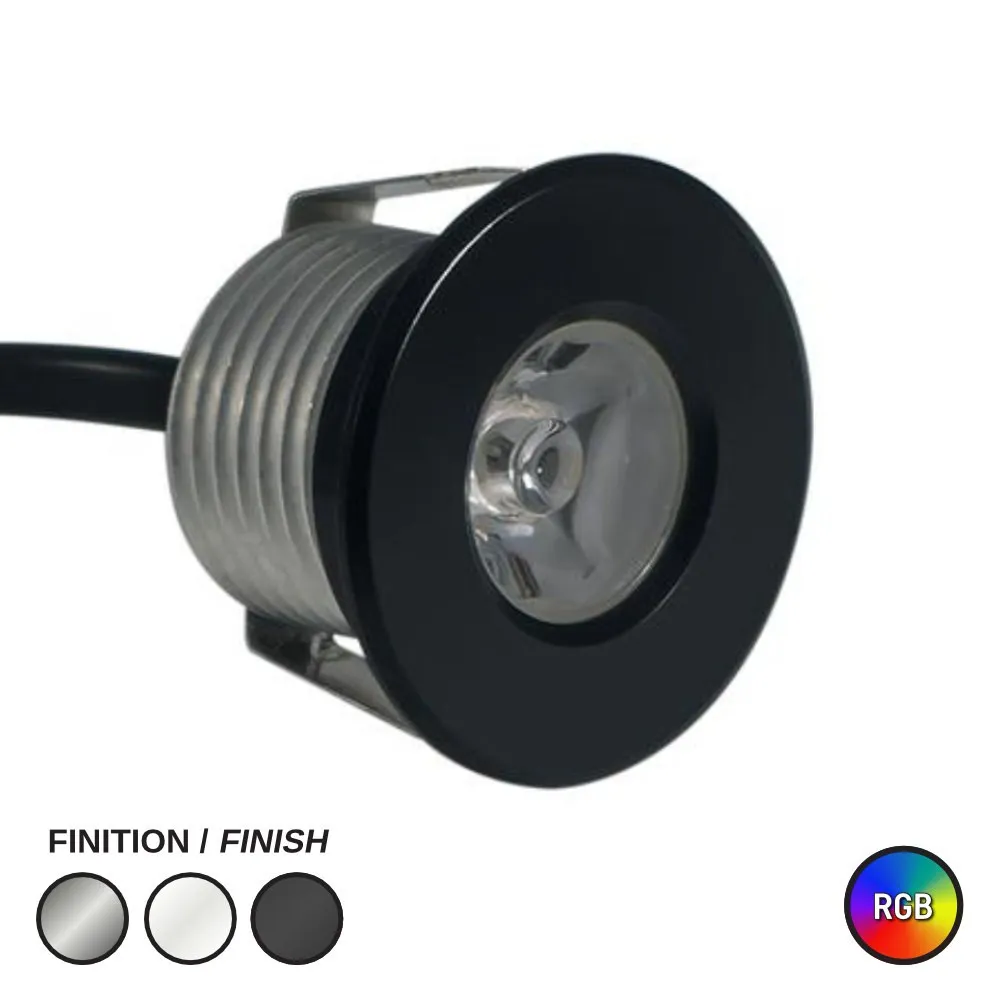

LED PUCK LIGHT #2000 ROUND RGB BLACK

Name: LED PUCK LIGHT #2000 ROUND RGB BLACK
Brand: LEDCO
SKU: LCPK2000R-1W-RGB-BK
Price: 30.97 CAD
Availability: InStock

SKU: LCPK2000R-1W-RGB-BK

Brand: LEDCO

Tiny light, huge impact: the LED puck light #2000 Round drops a clean, jewel-like glow exactly where you need it. Also called a round LED light, puck light, cabinet light or mini recessed downlight, this little round fixture is the go-to for kitchen puck lights under upper cabinets, inside display cases, on stair risers, in closets, toe-kicks, pantries, bookcases and even bathroom cabinet lighting. Its black finish disappears into dark millwork and stands out crisply on light wood or white lacquer, so cabinetmakers, renovators and contractors can use it as an accent or as real task lighting on a countertop.

Behind that small face there is serious engineering. This model runs on 12/24 V DC low voltage and draws only 1 watt for 125 lumens — about the punch of a 20 W incandescent, with a rated life of 25 000 hours. It is an RGB version, so you can play with colour for displays, bars, home theatres or kids' rooms, and it is dimmable for soft evening ambiance. A tight 25º beam angle keeps the light focused on the surface instead of spilling into your eyes, a CRI above 80 keeps food, wood grain and merchandise looking true, and the power factor over 90 makes it easy on the circuit. Rated IP67, it shrugs off splashes and humidity. Recessed installation is simple: a 35 mm cutout, a fixture measuring 50 mm across and 29 mm deep, and a body of 27 mm. Backed by a 3-year warranty.

From Montréal condo kitchens to retail counters, boutique shelving, restaurant millwork and basement bars across Canada, this puck earns its spot wherever cabinets, niches and display units need light without bulky fixtures. SKU LCPK2000R-1W-RGB-BK shares the same PK2000 platform as the LED puck light #2000 louver and the LED puck light #2000 round 1 side, so you can mix trims on one project, or step up to the LED puck light #2000 scoop for a directed wash. Order yours and light up every shelf the right way.

Built small, built to last
The PK2000 platform was designed for millwork and cabinetry, where space is measured in millimetres. The round trim in black gives a discreet, modern face that blends into dark panels and frames neatly on white or wood. With an overall diameter of 50 mm, a depth of 29 mm and a body of 27 mm, this LED puck light tucks inside a cabinet top, a shelf, a stair riser or a soffit without stealing storage space. The IP67 protection rating means dust and water ingress are not a worry, which is reassuring in kitchens, bathroom vanities, wet bars and covered outdoor millwork.

Light quality and colour
This version is the RGB model: colour-changing light for display cases, feature shelving, bars, home theatres, signage niches and seasonal décor, while the same PK2000 family also exists in 3000K and 4000K if you need a fixed white. The 25º beam angle concentrates the output into a tight, controlled pool of light — ideal for grazing a backsplash or highlighting a bottle display instead of washing the whole room. A CRI greater than 80 keeps colours honest, and 125 lumens from a single 1 W point source is the equivalent of a 20 W incandescent, with far less heat inside a closed cabinet.

Technical specifications
SKU: LCPK2000R-1W-RGB-BK
Voltage: 12/24 V DC
Consumption: 1 W
Light intensity: 125 lumens
Incandescent equivalent: 20 W
Colour: RGB
Beam angle: 25º
CRI: greater than 80
Power factor: over 90
Dimmable: yes
Protection rating: IP67
Diameter: 50 mm
Depth: 29 mm
Body: 27 mm
Cutout size: 35 mm
Lifespan: 25 000 hours
Warranty: 3 years

Wiring and installation
Because it is a low-voltage 12/24 V DC fixture, it needs a DC driver or power supply sized for the total wattage of the run — at 1 W per puck, a single compact supply can feed a whole kitchen island. Drill a 35 mm hole, feed the lead through, press the puck into place and you are done; plan the driver location in an accessible spot such as a cabinet base or a closet. The fixture is dimmable, so pair it with a compatible low-voltage dimming system and keep the driver and the control method matched. For RGB operation, a colour controller suited to the fixture is required.

Applications and documentation
Think under-cabinet task lighting over a counter, jewellery and pastry display cases, wine cellars, reception desks, hotel headboards, stair and corridor markers, closet interiors and retail shelving. Contractors often mix trims on the same job: the LED puck light #2000 louver or the black LED puck #2000 persienne to cut glare at eye level, the LED puck light #2000 round 1 side for directional accents, and the LED puck light #2000 scoop where the beam needs to be aimed. The full technical PDF for this model is available in the Documentation tab with the technical drawing, cutout and complete specifications.
