Built to disappear into the ceiling

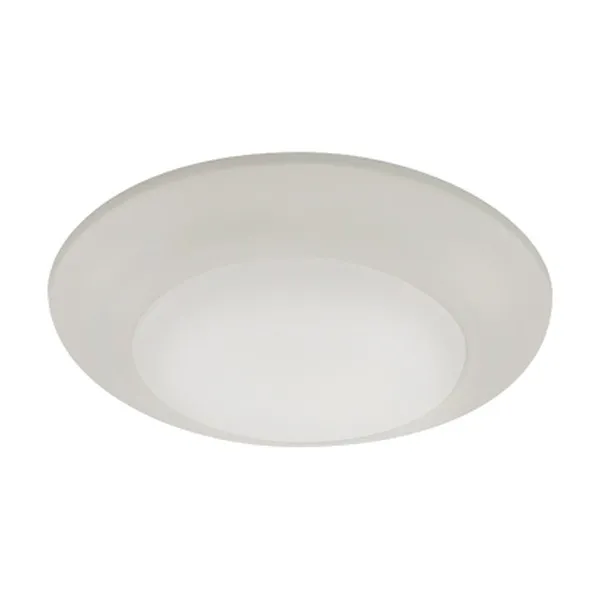

The Disclite DL4-12W-WH measures 5¹⁵⁄" (150 mm) across and stands only 1³⁄" (35 mm) tall, so it reads as a soft disc of light rather than a fixture. The body is durable airtight aluminum, which helps pull heat away from the LED module and keeps the fixture stable over its 50,000 hour projected life. The translucent white polycarbonate diffuser lens softens the source for low glare, a real advantage in hallways and bedrooms where people look up at the ceiling. The WH white finish blends with standard ceilings and trims, and the sealed construction is what earns this surface mount LED downlight its wet location rating for ceiling mounting.
Light quality you can actually see
This is a general application fixture with a 12 watt LED module that maintains uniform intensity and produces up to 900 lumens, for up to 75 lumens per watt. Typical CRI is greater than 90, so colours stay honest — important in clinics, change rooms, retail displays and kitchens. The colour selectable switch gives you three field-selectable colour temperatures: 3000 K for a warm residential feel, 3500 K as a neutral middle ground, and 4000 K for a crisper commercial look. The lens delivers a 110° beam spread; photometry at 3000 K shows 260 lux (24 FC) at 3.3' and 65 lux (6 FC) at 6.6', with 71.7% of the luminaire lumens delivered in the 0-60 zone.
Technical specifications
Application: Surface Mount / Retrofit
Approved location: Wet for ceiling mount, Damp for wall mount
Wattage: 12
Lumens: Up to 900
Lumens per watt: Up to 75
CCT: 3000 K / 3500 K / 4000 K (colour selectable)
CRI: > 90
Beam angle: 110
Input: 120V
Dimming: Yes, 100%-10%, forward/reverse phase, TRIAC
Power factor: > 0.9
THD: < 20%
Operating temperature: -30°C~45°C (-22°F~113°F)
Projected life: 50,000 hrs
Certification: cETLus
Colour: WH
Warranty: 3 years
Dimensions: 5¹⁵⁄" (150 mm) diameter, 1³⁄" (35 mm) height
Wiring, dimming and installation
The fixture runs on standard 120V line voltage and dims from 100% to 10% with industry standard forward/reverse phase and TRIAC dimmers (contact factory for a listing of compatible dimmers). Mounting hardware is included for both a 4" octagon box and a 4" recessed housing retrofit, so an electrician can go either way on the same job. For retrofit work it drops into RF401, RF402, RF402C and RF405 housings — a fast way to replace aging cans in a condo or office ceiling. Keep in mind that wall mounting is approved only with a 4-inch octagonal box; retrofit can installations are not approved for wall mounting. Accessories are sold separately, including the LC-CRTL-DIM-1 OnCloud Smart Wi-Fi dimmer with ON/OFF press and 7 level touch slider, and the LC-CRTL-3WAY-1 OnCloud Smart Wi-Fi 3-way switch for 3-way or 4-way applications.
Where it works and what to download
Liteline positions this 4" low profile disclite for health-care, hospitality, office, residential and retail applications, and that tracks with how contractors use it: corridors in a seniors residence, hotel bathrooms and vestibules, basement finishing, walk-in closets, covered porches and carports, small shop stockrooms. Its -30°C to 45°C operating range and wet location ceiling rating suit Canadian exteriors under soffits and in unheated spaces. The full technical PDF spec sheet for the DL4-12W-WH, with dimensions, photometric data and the ordering guide, is available in the Documentation tab so you can drop it straight into your submittal package.
