A profile built around optics
The 880 series was developed around a simple idea: one profile, many ways to shape the light. Its various lenses let you customize the light projection angle, and combining them offers a lighting distribution tailored to your needs. The ordering guide lists several flat lenses, including an opal lens, plus a black lens and a concave diffuser that hides the light source while keeping the profile itself in the foreground. High-efficiency reflectors are offered in a single-channel version for one LED engine and a double-channel version for two.
Adjustable after installation
The hardware of the #880 was specially developed to let you rotate the luminaire and guide the light source according to the circumstances. The ordering guide lists a swivel bracket kit and loop swivel brackets in red, pink, cyan, black, blue, white, green, transparent or orange, with a maximum length of 96 inches using loop swivel brackets. In a shop or a gallery, you can re-aim the light when the displays change, without taking the fixture down.
Suspended or recessed
For pendant installations, the series offers a suspension kit and a type B double-channel suspension kit with 15 ft aircraft cable; canopies, with a remote driver plate or an integrated driver, are only available with the suspension bracket. For a flush ceiling, a gypsum groove for 1/2 in drywall, in 4 ft lengths, is listed. Corners at 90° (6 x 6 in, aluminum or black) are available with joiners ordered separately, along with a type B straight joiner, and custom lengths come by sections of 2 to 240 inches.
Technical specifications
SKU: LCPROF-880-8FT-WH
Series: 880
Length: 8 ft
Finish: white

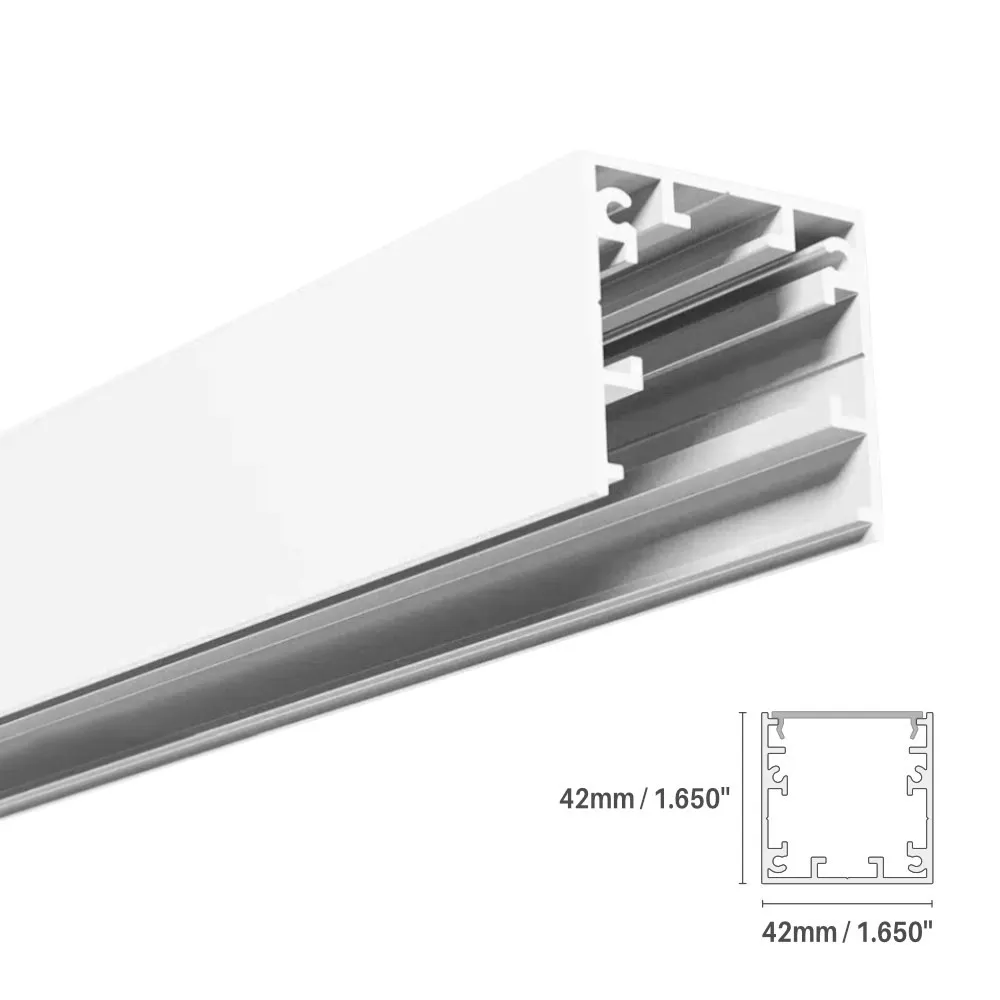

Section: 42.0 mm x 42.0 mm (1.650 in x 1.650 in)
Optics (ordering guide): flat lenses incl. opal, black lens, concave diffuser, reflectors for 1 or 2 LED engines
Mounting (ordering guide): swivel brackets, loop swivel brackets, suspension kits, gypsum groove
Custom lengths: sections of 2 to 240 in
Max. length with loop swivel brackets: 96 in
Standards: designed to meet North American woodworking standards
Warranty: 3 years
Applications and documentation
Boardrooms, open offices, retail walls, galleries, restaurants, kitchens and custom cabinetry: the white #880 brings flexible architectural LED lighting to each of them, with lines clean enough to leave exposed. The spec sheet (PDF), with the technical drawing and the complete ordering guide, is available in the Documentation tab, so your designer, cabinetmaker or electrician can select the right optics and hardware from the start.
