3.5" LUNA LED SQUARE RECESSED FIXTURE - RA35S-12F-27K-90WH

Name: 3.5" LUNA LED SQUARE RECESSED FIXTURE - RA35S-12F-27K-90WH
Brand: LITELINE
SKU: RA35S-12F-27K-90WH
Price: 73.97 CAD
Availability: InStock

SKU: RA35S-12F-27K-90WH

Brand: LITELINE

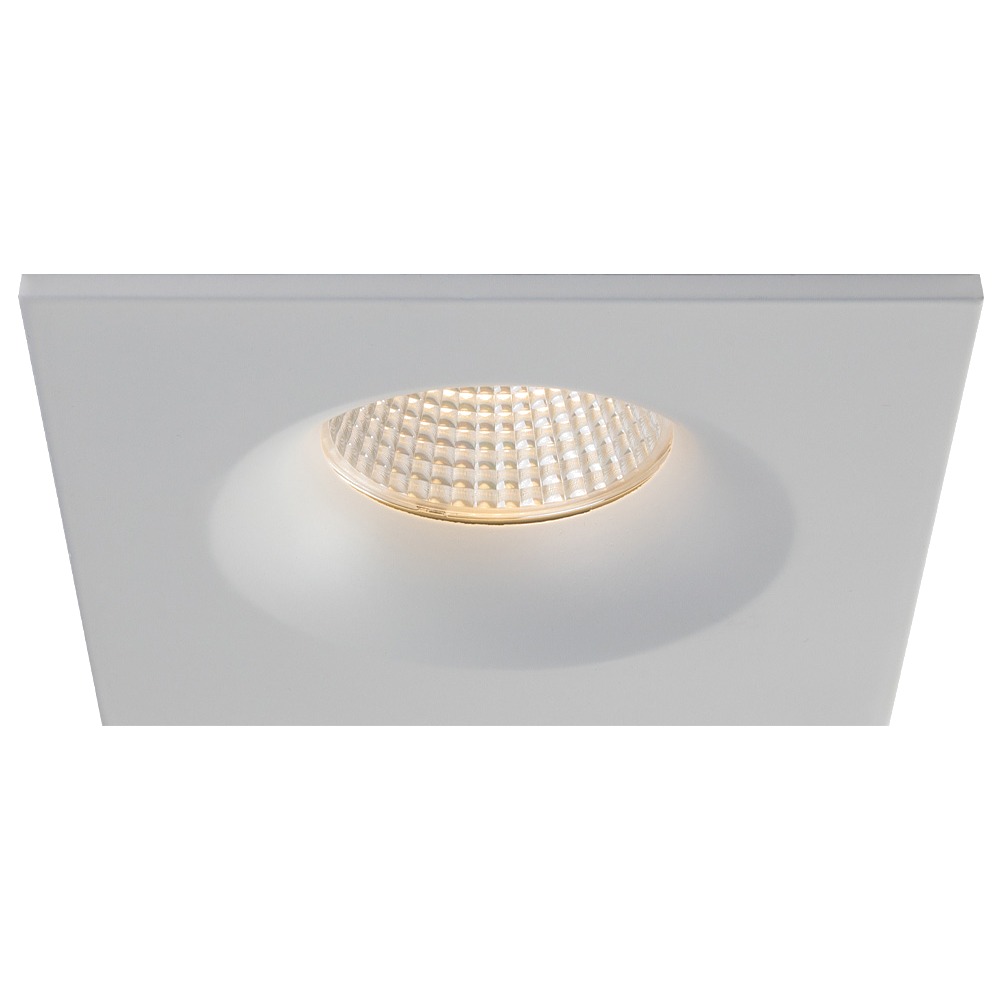

Small aperture, big presence: the 3.5" LUNA LED square recessed fixture from LITELINE (SKU RA35S-12F-27K-90WH) is the clean, architectural square downlight people look for when they want light without visual clutter. Call it a square pot light, a recessed LED downlight or simply a LUNA — it's a fixed, airtight downlight built for both new builds and retrofit work, and it drops into a ceiling in minutes. Its crisp white square trim sits flush and quiet above kitchens, hallways, bathrooms, stairwells and retail floors, giving you a tidy grid of light instead of a row of bulky housings.

This is a 12-watt LED module producing up to 600 lumens at 57 lumens per watt, with a typical CRI of 90 so skin tones, wood grain, paint colours and merchandise all read true. The fixture offers dim-to-warm behaviour, shifting from 3000 K down to 2000 K as you dim, and it's compatible with industry standard TRIAC/ELV dimmers through its 300 mA dimmable class II electronic driver (100-135V AC, 60Hz, power factor greater than 0.90). The 38° beam spread keeps light focused where you aim it. The body is durable airtight fixed aluminum with an anodized blue heat sink for maximum airflow around the LED source, a white trim finish, a 4 3⁄8" (111 mm) square face and a Ø 3 5⁄8" (92 mm) hole cut. It's cETLus certified, suitable for wet locations, approved for direct contact with insulation, rated for operation from -20°C to 40°C, tested to LM79 and LM80, with projected life of 70% at 33,000 hrs and a lifetime warranty.

Put it over a kitchen island, in a basement renovation, along a covered porch or entry soffit, in a condo hallway, a boutique, a clinic or a small office. Wet location approval and insulated-ceiling contact make it a strong fit for Canadian homes where vapour barriers, attics and exterior soffits are part of every job. Mixing finishes across a project? The same fixture is offered in 3.5" Luna LED square recessed fixture black and 3.5" Luna LED square recessed fixture brushed nickel, and if you need aimable light for art or feature walls, look at the 3.5" Luna LED square regressed gimbal recessed fixture. Plan your layout, order your quantity and light the room the way you pictured it.

Built to disappear into the ceiling
The LUNA 3.5" square fixed recessed fixture uses a durable airtight fixed aluminum body with an anodized blue heat sink that keeps airflow moving around the LED source — the simplest way to protect light output and colour over the years. Two spring loaded clips hold the fixture to any ceiling material, so it works in drywall, plaster, T-bar ceilings or wood. The square face measures 4 3⁄8" (111 mm) and the housing steps in to 3 3⁄8" (85 mm), with an overall depth reference of 15⁄16" (34 mm) at the trim and additional dimensions of 4 3⁄16" (106 mm) and 3 1⁄16" (78 mm) on the body. Required hole cut is Ø 3 5⁄8" (92 mm).

Light quality and dim-to-warm
The 12 watt LED module delivers up to 600 lumens of uniform intensity with a typical CRI of 90, which is the level interior designers ask for in kitchens, bathrooms and retail displays. The lens produces a 38° beam spread, tight enough for accent rows over counters, wide enough for general ceiling layouts. Colour temperature runs from 3000 K down to 2000 K as you dim, so evening light gets warmer and cosier exactly the way an incandescent used to behave — a detail your clients notice immediately in dining rooms and bedrooms.

Electrical and installation
Power comes from an extruded aluminum hardwire box housing a 300 mA dimmable class II electronic driver with 100-135V AC input. An 18" (457 mm) FT6 rated cable with a DC 2.1 connector links driver to fixture and is approved for use in plenums and suspended ceilings. Three Quick Connect push-in terminals make wiring fast on site — a real time saver when you're installing a dozen units in a day. The fixture is compatible with industry standard TRIAC/ELV dimmers; Liteline publishes its compatible dimmer list at liteline.com/lunadimmers. Operating temperature range is -20°C to 40°C (-4°F to 104°F) and power factor is greater than 0.90.

Technical specifications
SKU: RA35S-12F-27K-90WH
Brand: LITELINE
Application: Ceiling recess mount
Approved location: Wet / insulated ceilings
Wattage: 12W
Lumens: 600
Lumens per watt: 57
CCT: 3000 K~2000 K
CRI: 90
Beam angle: 38°
Input: 100-135V AC, 60Hz
Dimming: Yes — TRIAC/ELV
Hole cut: Ø 3 5⁄8" (92 mm)
Colour: WH (white trim)
Class II: Yes
Power factor: >0.90
Projected life: 70% @ 33,000 hrs
Certification: cETLus
LM79 / LM80: Yes
Warranty: Lifetime

Applications, accessories and documentation
Because it is suitable for wet locations and approved for direct contact with insulation, this downlight handles showers, covered porches, entry soffits and insulated attic ceilings as easily as a living room. Typical projects: a kitchen ceiling grid over island and perimeter counters, basement renovations with low joist depth, condo corridors, boutiques, dental and medical clinics, small offices and cafés. Accessories are sold separately, including the P-3520 3 5⁄8" round pre-mounting plate with driver attachment clip for 3½" LUNA LED fixtures, the P-NCMK-1 new construction mounting kit with hanger bars, brackets and screws, and the VBE-1 to VBE-4 vapour barrier extenders for new construction and remodel applications. For a matching aimable version in the same aperture, see the 3.5" Luna LED square regressed gimbal recessed fixture dim-to-warm or the black finish 3.5" Luna LED square regressed gimbal recessed fixture. The full technical PDF spec sheet is available in the Documentation tab for your submittals and permit packages.
