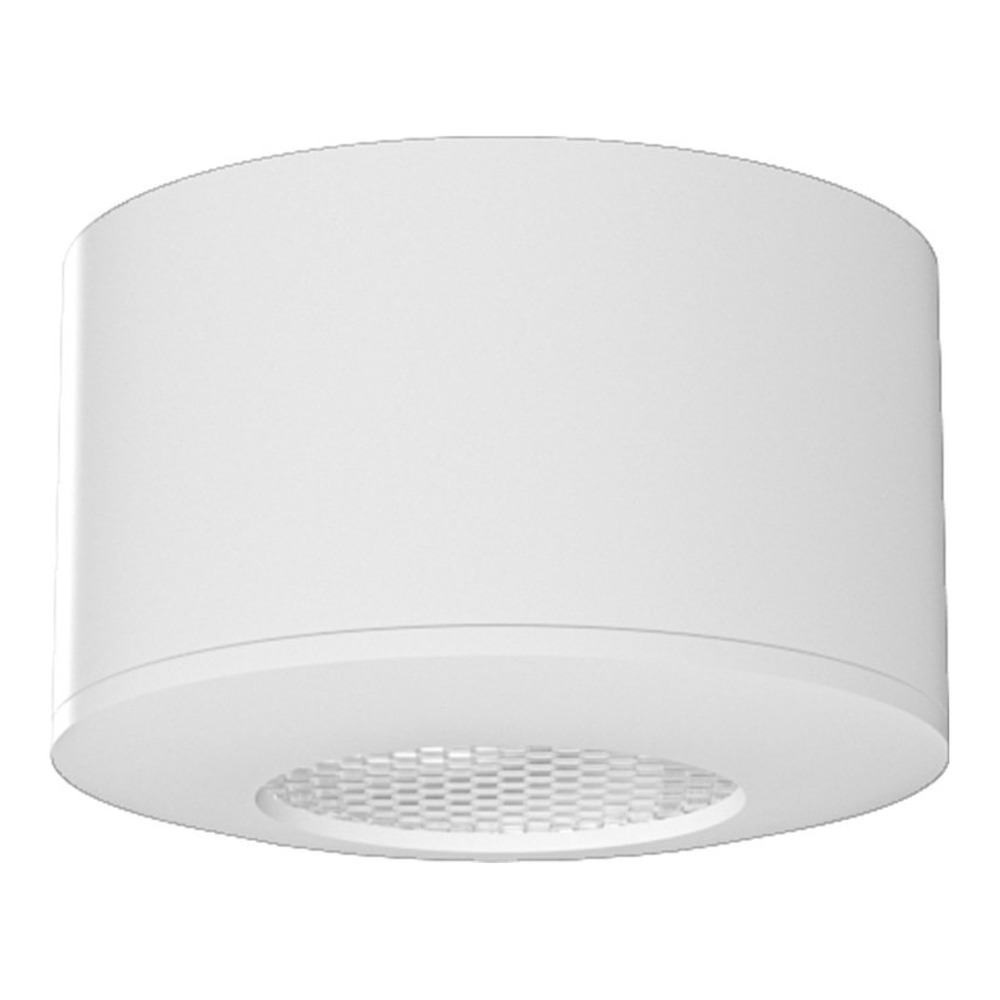

24V MICROLED LIGHT - MLED1-1RN30-24H90FWH

Name: 24V MICROLED LIGHT - MLED1-1RN30-24H90FWH
Brand: LITELINE
SKU: MLED1-1RN30-24H90FWH
Price: 107.97 CAD
Availability: InStock

SKU: MLED1-1RN30-24H90FWH

Brand: LITELINE

Tiny fixture, big impact: the 24V MicroLED light from LITELINE is the discreet little powerhouse people are really looking for when they search led puck lights, kitchen under cabinet lighting or display cabinet lighting. Machined from solid aluminum with a low-profile body, this micro recessed or surface-mount LED light source slips into places a classic puck simply cannot go — under a cabinet, inside a curio, along a bookshelf, above a backsplash or around a fireplace surround. It is the modern, maintenance-free answer to old halogen and G4 under-cabinet fixtures, giving you clean accent, task or general lighting without bulky housings or hot lamps.

Model MLED1-1RN30-24H90FWH is the round profile in a Flat White finish, with a narrow 30° beam spread and a warm 3000°K colour temperature that flatters wood, stone and quartz countertops. It runs on 24V DC constant voltage at 2 watts per LED, delivering up to 139 lumens per light source with a minimum CRI of 80, so colours, food prep and displayed objects look true. The hardwire version (H) is made for clean, permanent installations, it is dimmable when used with a dimming driver, it is cETLus listed and approved for damp locations. LED driver sold separately, so you can size the power supply to the number of fixtures in your run.

Homeowners renovating a kitchen, cabinetmakers finishing a millwork job, jewellers and boutique owners lighting a display case — this is the detail that makes the whole project look custom. Use it to erase dark corners in a pantry, light a wine niche, graze a stone feature wall or put a soft pool of light over a vanity. Build a coordinated look with the matching square profile 24V MicroLED light MLED1-1SN30-24H90FWH, the wider 45° beam 24V MicroLED light MLED1-1RM30-24H90FWH, or the black-finish 24V MicroLED light MLED1-1RN30-24H90ABK. Add it to your cart and give your cabinetry the finish it deserves.

Built from machined aluminum
The MicroLED family is made from machined aluminum, which is exactly why these fixtures stay so small while still handling heat properly. The low-profile body can be recessed or surface mounted, so a cabinetmaker can drill a clean pocket into the underside of a cabinet for a flush, invisible look, or simply surface mount it against a shelf, a toe-kick or a beam when routing is not an option. This SKU is the round profile in a Flat White finish, which disappears against white melamine, painted millwork and drywall soffits. Anodized black and brushed aluminum are also offered in the family if your project calls for a different look.

Light quality and beam control
Each light source draws 2 watts and puts out up to 139 lumens, with a minimum CRI of 80 so wood grain, backsplash tile, plated food and merchandise keep their real colour. The N code in the model number means a narrow 30° beam: a controlled, focused pool of light that is ideal for accenting an object, washing a specific zone of counter or creating a rhythm of light along a run of cabinets. The 30 code means 3000°K, a warm white that blends naturally with residential finishes. Wider and tighter beam spreads (15°, 45°, 60°) and a 5500°K version exist in the MicroLED line if you need to mix effects in the same room.

Technical specifications
SKU: MLED1-1RN30-24H90FWH
Brand: LITELINE
Wattage: 2 watts per LED
Output: up to 139 lumens per light source
Colour temperature: 3000°K
CRI: minimum 80
Beam spread: narrow, 30°
Fixture shape: round
Voltage: 24V DC constant voltage
Wiring: hardwire
Finish: Flat White
Mounting: surface or recessed
Dimming: dimmable when used with a dimming driver
Certification: cETLus listed
Location: approved for damp locations

Drivers, wiring and compatibility
This is a 24V DC constant voltage fixture and the LED driver is sold separately, which lets you match the supply to your run. The H suffix means bare wires for hardwire applications, so it pairs naturally with hardwire box drivers such as the LED-HWB-24V-24W, LED-HWB-24V-36W and LED-HWB-24V-60W. For dimming, Class II electronic hardwire dimmable drivers LED-HWBDIM2-24-40 (2-wire) and LED-HWBDIM3-24-40 (3-wire) are offered, as are magnetic dimmable hardwire drivers from HWB-DIM-MDC-24V-20W up to HWB-DIM-MDC-24V-192W. Plug-in options LED-DVR-24V-24W, LED-DVR-24V-36W and LED-DVR-24V-60W are available too; drivers with a DC 2.1 jack require the LED-HWB-DC21-6-PF power feed, with a maximum of 10' to the first fixture. The LED-SP-4 harness handles up to 4 runs, and the LED-DIM 24V touch dimmer can be added when a non-dimmable driver is used.

Applications and documentation
Because it is approved for damp locations, this MicroLED works in a bathroom vanity cabinet, a covered porch soffit or a laundry niche as well as it does over a kitchen island. Contractors use it for toe-kick accents and stair niches, retailers for glass display cases and shelving, and offices for reception desk details. Mix shapes and beams across one project: the square 24V MicroLED light MLED1-1SN30-24H90ABK or the 45° 24V MicroLED light MLED1-1RM30-24H90AL share the same 24V platform. The full spec sheet with the ordering guide and driver options is available in the Documentation tab of this page.
