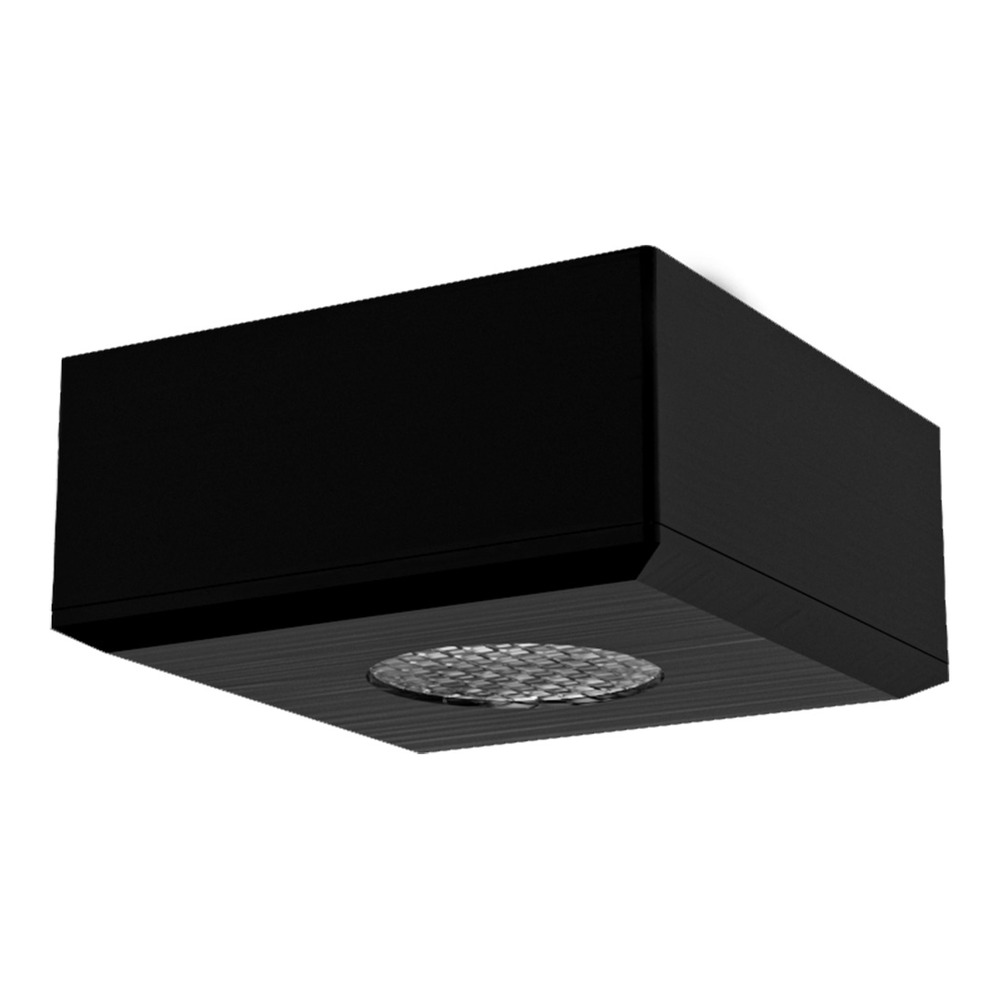

24V MICROLED LIGHT - MLED1-1SN30-24H90ABK

Name: 24V MICROLED LIGHT - MLED1-1SN30-24H90ABK
Brand: LITELINE
SKU: MLED1-1SN30-24H90ABK
Price: 107.97 CAD
Availability: InStock

SKU: MLED1-1SN30-24H90ABK

Brand: LITELINE

Tiny fixture, serious light: the 24V MicroLED light MLED1-1SN30-24H90ABK from LITELINE is the discreet little powerhouse people are really looking for when they search LED puck lights, kitchen under cabinet lighting, display cabinet lighting or bathroom cabinet light. Machined from solid aluminum with a low profile square body in an Anodized Black finish, this mini LED spot can be recessed into millwork or surface mounted under a shelf, so you get design freedom without bulky housings, hot lamps or bulbs to change. It is the modern, maintenance-free answer to old halogen and G4 under cabinet pucks — a true accent, task and general lighting tool for countertops, backsplashes, curio cabinets, bookshelves, fireplaces and every dark corner where shadows collect.

Under the hood, this is a 2 watt per LED fixture running on 24V DC constant voltage, delivering up to 139 lumens per light source — plenty of punch for such a small aperture. The SKU decodes to a square profile with a narrow 30° beam and a warm 3000°K colour temperature, the sweet spot for wood, stone and warm kitchen finishes, with a minimum CRI of 80 so food, fabric and displayed objects keep their true colour. It is wired for hardwire installation, it is dimmable when used with a dimming driver, it is cETLus listed and approved for damp locations. The LED driver is sold separately, which lets you size the power supply exactly to the number of fixtures on your run.

Homeowners use these micro pucks under upper cabinets and floating shelves; contractors drop them into custom millwork, reception desks, retail display cases, jewellery counters, bar backs and stair niches. Because they are low voltage 24V and approved for damp locations, they suit Canadian kitchens, bathrooms and basements where humidity is a fact of life. Need the same square 30° 3000K head in a lighter finish? See the MicroLED MLED1-1SN30-24H90FWH, or go round with the MicroLED MLED1-1RN30-24H90ABK and the wider 45° MicroLED MLED1-1RM30-24H90ABK. Plan your layout, pick your driver, and light your cabinets the right way.

Built from machined aluminum
The MicroLED family is made from machined aluminum, and you feel it the moment you hold one: a solid, low profile body with a clean square face in Anodized Black. That metal body is not just about looks — it helps the fixture shed heat, which is exactly what keeps a small LED source stable and maintenance free over the long haul. The low profile matters too, because millwork rarely gives you depth to play with; this mini LED puck light can be recessed flush into a cabinet bottom, a shelf or a valance, or simply surface mounted where drilling is not an option.

Light quality and beam control
This SKU is the narrow 30° version in 3000°K. A 30° beam gives you a defined, controlled pool of light rather than a wide wash — ideal for grazing a backsplash, spotlighting a bottle display, or throwing a tight accent onto a stone fireplace surround. Warm 3000K keeps wood, brass and warm whites looking inviting instead of clinical, and the minimum CRI of 80 means colours stay honest on a cutting board or in a retail case. With up to 139 lumens from a 2 watt LED, you get real output from a fixture you barely see.

Technical specifications
Model / SKU: MLED1-1SN30-24H90ABK
Brand: LITELINE
Wattage: 2 watts per LED
Output: up to 139 lumens per light source
Colour temperature: 3000°K
CRI: minimum 80
Beam spread: narrow, 30°
Fixture shape: square
Voltage: 24V DC constant voltage
Wiring: hardwire
Finish: Anodized Black
Mounting: surface or recessed
Dimming: dimmable when used with a dimming driver
Listing: cETLus listed, approved for damp locations

Drivers, wiring and installation
This is a 24V DC constant voltage fixture and the LED driver is sold separately, so you choose the supply that matches your run and your control scheme. Liteline lists Class 2 non-dimming plug-in drivers (LED-DVR-24V-24W, LED-DVR-24V-36W, LED-DVR-24V-60W), hardwire box drivers (LED-HWB-24V-24W, LED-HWB-24V-36W, LED-HWB-24V-60W), dimmable electronic hardwire drivers powered by Lutron (LED-HWBDIM2-24-40, 2-wire, and LED-HWBDIM3-24-40, 3-wire) and magnetic indoor/outdoor dimmable hardwire drivers from HWB-DIM-MDC-24V-20W up to HWB-DIM-MDC-24V-192W. Accessories include the LED-DIM 24V touch dimmer (a non-dimmable driver is required with it) and the LED-SP-4 harness for up to 4 runs. Note that this version is the hardwire option, so the leads are landed directly; the LED-HWB-DC21-6-PF power feed is what pairs DC 2.1 jack drivers with bare leads, with a maximum of 10' to the first fixture. Add up the wattage of all your fixtures before you size the driver.

Where to use it, and what to pair it with
Think kitchen uppers and islands, pantry shelving, bathroom vanity cabinets, walk-in closets, curio and trophy cabinets, bookshelves, bar backs, retail display cases and reception millwork. Mixing beam angles is the pro move: keep this narrow 30° square puck for accents and add a medium 45° head such as the MicroLED MLED1-1RM30-24H90ABK for broader task light, or switch colour temperature with the MicroLED MLED1-1RM27-24H90ABK and MicroLED MLED1-1RM40-24H90ABK. Matching the cabinet interior instead of black? The MicroLED MLED1-1RM30-24H90AL comes in Brushed Aluminum. Full details, the ordering guide and the complete driver chart are in the technical spec sheet available in the Documentation tab.

Technical Files
