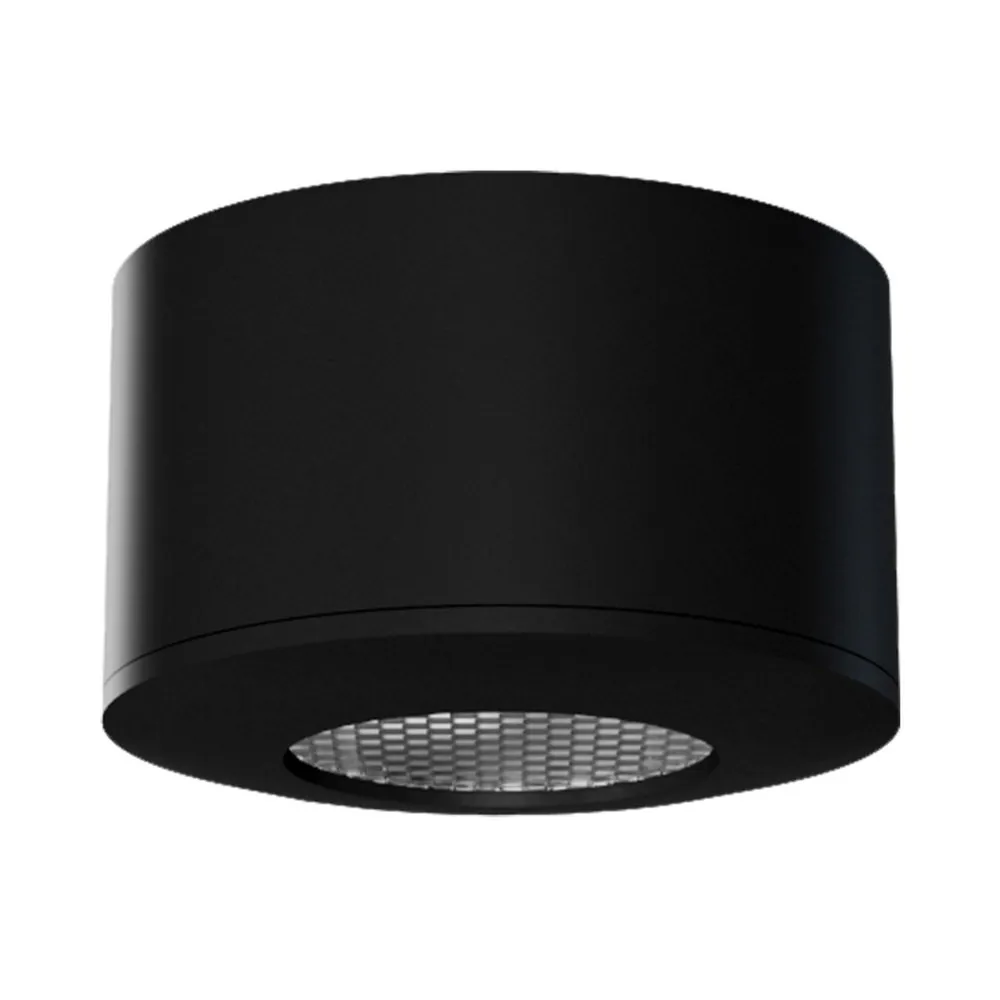

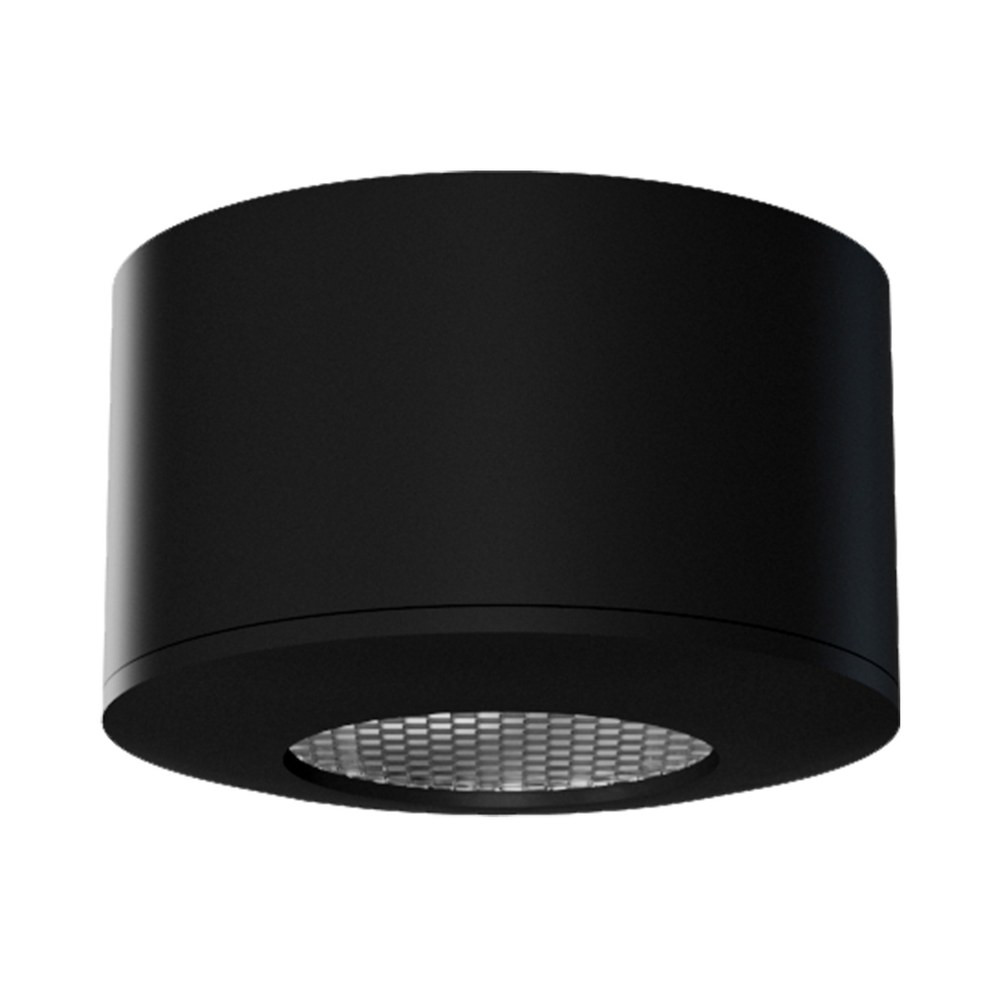

24V MICROLED LIGHT - MLED1-1RN30-24H90ABK

Name: 24V MICROLED LIGHT - MLED1-1RN30-24H90ABK
Brand: LITELINE
SKU: MLED1-1RN30-24H90ABK
Price: 107.97 CAD
Availability: InStock

SKU: MLED1-1RN30-24H90ABK

Brand: LITELINE

Tiny fixture, serious light: the 24V MicroLED light from LITELINE is the discreet little LED puck light that finally makes your countertops, shelves and display cases look the way you imagined them. People call these under cabinet lights, mini recessed pucks, cabinet lights or accent spots — whatever name you use, this is the machined aluminum micro-fixture you slip into a shelf, a cabinet bottom, a toe-kick or a millwork detail when a regular fixture is simply too big. Model MLED1-1RN30-24H90ABK is the round profile, hardwire version in an anodized black finish, designed for accent, task or general lighting: highlighting a fireplace, washing a backsplash, lighting a kitchen counter, brightening display cabinet lighting and curios, or erasing the dark corners and shadows in a bookshelf.

Every detail here is built for clean, maintenance-free light. Each MicroLED draws 2 watts and delivers up to 139 lumens per light source, with a minimum CRI of 80 so wood grain, quartz veining and food colours stay true. This SKU is the 3000°K warm white version with a narrow 30° beam — tight enough to create real pools of light and sparkle on a countertop, soft enough to feel cozy. It runs on 24V DC constant voltage, is dimmable when paired with a dimming driver, and the hardwire (H) wiring makes it ideal for permanent installs behind cabinetry. The machined aluminum body can be surface or recessed mounted, it is cETLus listed and approved for damp locations, and the anodized black (ABK) finish disappears under dark wood or turns into a deliberate design accent.

This little light earns its keep in kitchens, bathrooms and vanities, home offices, wine cellars, retail display counters, jewellery cases, hotel millwork and restaurant back bars — anywhere a Canadian renovation needs light without bulk. Because it is a low-voltage fixture, plan for a Class 2 24V driver, sold separately, sized to your total wattage. Mixing finishes or beam spreads on the same run is easy: pair it with the same narrow-beam round in white, the MicroLED MLED1-1RN30-24H90FWH, the square profile MicroLED MLED1-1SN30-24H90ABK, or the wider 45° medium beam MicroLED MLED1-1RM30-24H90ABK. Plan your layout, order your drivers and give your cabinetry the light it deserves.

Built from machined aluminum
The MicroLED family is machined from solid aluminum, which is exactly why it can stay this small while handling heat properly. The low profile housing is designed to be recessed into a shelf, a cabinet bottom or a millwork panel, or simply surface mounted when you cannot drill deep. The anodized black finish of this model resists fingerprints, blends into dark cabinetry and looks intentional when it is visible. For the installer, the small footprint is the whole point: it hides where a puck or a linear bar would look bulky, and it gives you true design freedom in custom cabinetry.

Light quality you can trust
With a minimum CRI of 80, colours stay natural — an important detail over a cutting board, a makeup vanity or a retail display. The 3000°K colour temperature of this SKU is a warm white that flatters wood, brass and warm stone, and it matches most residential under cabinet lighting already in place. The 30° narrow beam is the accent choice: it concentrates the output into a defined pool rather than spreading it thin, perfect for spacing several fixtures along a counter or for putting a spotlight on a single object in a curio cabinet.

Technical specifications
SKU: MLED1-1RN30-24H90ABK
Brand: LITELINE
Wattage: 2 watts per LED
Output: up to 139 lumens per light source
CRI: minimum 80
Colour temperature: 3000°K
Beam spread: 30° narrow
Fixture shape: round
Voltage: 24V DC constant voltage
Wiring: hardwire
Finish: anodized black
Mounting: surface or recessed
Dimming: dimmable when used with a dimming driver
Listing: cETLus listed, approved for damp locations

Electrical, drivers and installation
This is a 24V DC constant voltage fixture, so it always needs a Class 2 LED driver, sold separately. The hardwire version connects directly to the driver's leads, which suits permanent installations inside cabinetry, soffits and casework. Non-dimming plug-in and hardwire box drivers are offered in 24W, 36W and 60W; for dimming, the electronic hardwire drivers LED-HWBDIM2-24-40 and LED-HWBDIM3-24-40 are 40W, 24V, 2-wire and 3-wire respectively and powered by Lutron®, while magnetic dimmable hardwire drivers are available in 20W, 40W, 60W, 96W and 192W. Add the total wattage of your fixtures (2 watts each) and choose a driver with room to spare. The LED-SP-4 harness handles up to 4 runs at 24V, the LED-DIM 24V touch dimmer works with a non-dimmable driver, and drivers with a DC 2.1 jack require the LED-HWB-DC21-6-PF power feed, with a maximum of 10' to the first fixture.

Where to use it, and documentation
Think kitchen counters and backsplashes, bathroom and vanity cabinets, walk-in closets, bookshelves, fireplace surrounds, bar millwork, retail and museum display cases, reception desks and office casework. Because it is approved for damp locations, it is comfortable in bathrooms and covered areas where humidity is part of daily life. To build a scheme, mix this narrow-beam black round with the matching MicroLED MLED1-1RN30-24H90FWH for light-coloured cabinets, the brushed aluminum MicroLED MLED1-1RM30-24H90AL, or the square MicroLED MLED1-1SN30-24H90ABK when the millwork calls for straight lines. The full spec sheet and ordering guide are available in the Documentation tab of this page for your drawings, submittals and driver selection.

Technical Files
