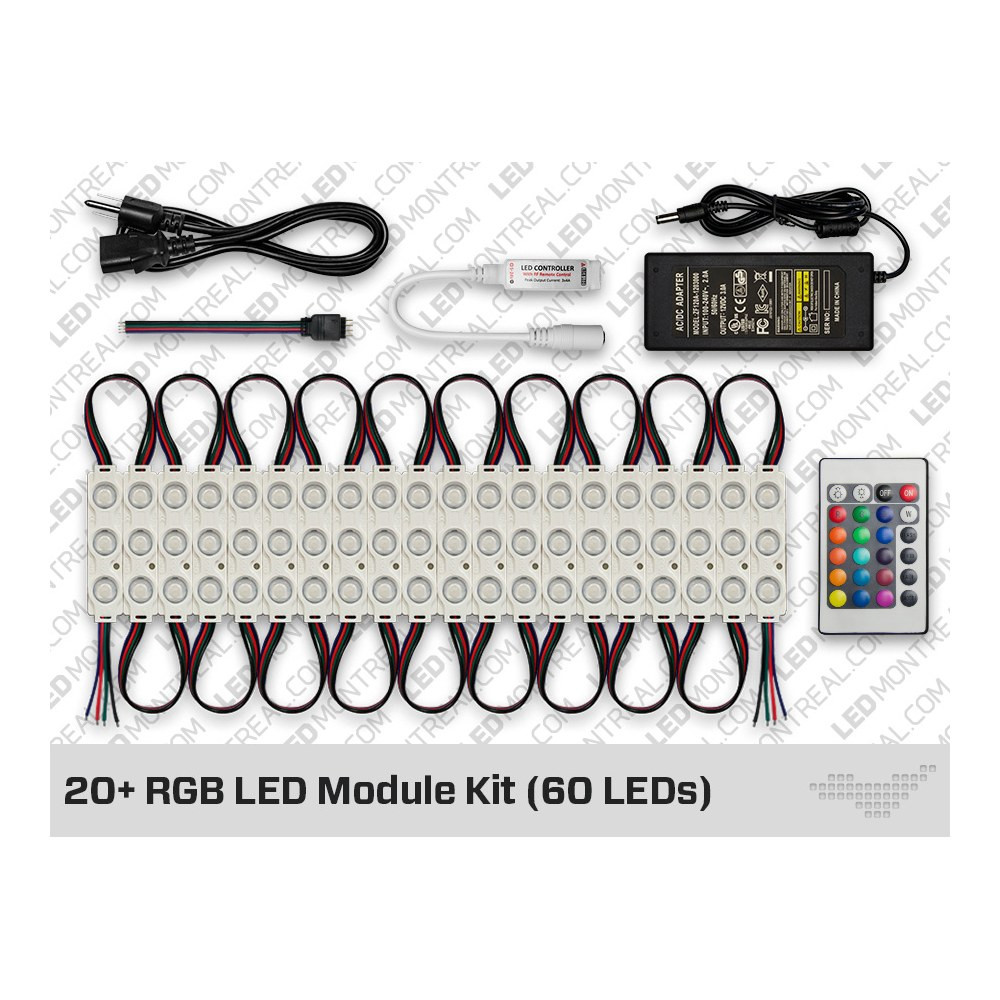

20+ RGB LED MODULE BUNDLE (60 LEDS)

Name: 20+ RGB LED MODULE BUNDLE (60 LEDS)
Brand: LED MONTREAL
SKU: LEDMODULE
Price: 62.97 CAD
Availability: InStock

SKU: LEDMODULE

Brand: LED MONTREAL

Turn any sign, light box or hollow letter into a glowing showpiece with the 20+ RGB LED Module Bundle (60 LEDs) from LED Montreal. Also known as RGB LED sign modules, injection modules, backlight modules or colour-changing LED pucks, these little squares are the go-to alternative to LED light strips when you need even, punchy backlighting inside a box, a channel letter or a display case. Each bundle gives you 20 self-adhesive RGB modules linked in a chain, ready to stick, twist and lay out exactly the way your design demands — no more fighting a stiff strip that refuses to turn a corner.

Every module carries 3 LEDs and draws just 0.72W at 12V DC (60 mA per module), running in constant voltage mode, so a full bundle sips power while throwing serious colour. Luminous output is rated at 6600 mcd with a wide 160° beam angle, which is exactly what you want behind translucent acrylic: broad, overlapping pools of light instead of hot spots. Each module measures 70*16*8.1 and is rated IP65, so humidity, dust and the odd splash are not a concern. The 7 cm wires between modules let you bunch them tight for maximum brightness or spread them out for bigger surfaces, and the 20-module chain stretches to a total length of 3 meters. Need more? You can connect up to 4 sets of 20 modules in parallel — 2 sets on each side of the controller — for a single circuit of 240 LEDs. SKU: LEDMODULE.

These RGB LED modules shine in storefront signage, backlit menus, bar fronts, reception logos, light boxes, toe-kick and cove accents, display cabinets and trade-show booths, and they are just as happy in a basement media wall or a custom headboard at home. Contractors and sign makers across Canada like them because the self-adhesive backing and flexible chain make layout fast on plywood, aluminum or acrylic, indoors or in protected outdoor enclosures. If you have been searching for indoor LED strip lights that can actually wrap around a letter shape, this is the smarter answer. Grab a bundle, map out your design and light it up in any colour you like.

Built for sign makers and DIY builders
The 20+ RGB LED Module Bundle (60 LEDs) is a chain of 20 individual RGB LED modules, each one housing 3 LEDs behind a lens that spreads light at a 160° beam angle. Every module is self-adhesive, so it presses straight onto the back panel of a light box, the inside of a channel letter or the underside of a shelf. The 7 cm of wire between modules is the real secret: you decide the spacing. Tight spacing gives a dense, saturated wash for small letters and thin boxes; wider spacing covers large panels with fewer modules. Fully extended, the 20-module chain reaches a total length of 3 meters.

Light quality and colour
Because these are RGB modules, you get red, green and blue emitters in each package, mixing into any colour your controller can call for — steady colours for branding, fades and chases for attention-grabbing displays. The rated 6600 mcd output with a 160° spread is what makes them so effective as backlighting: placed a few inches behind translucent acrylic or vinyl, the beams overlap and erase the dotted look that narrow-angle products leave behind. That even glow is why many installers choose modules over LED light strips for anything with depth or corners.

Technical specifications
SKU: LEDMODULE
Brand: LED MONTREAL
LED quantity per module: 3
Power: 0.72W per module
Working voltage: 12V DC
Working current: 60 mA per module
Luminous flux: 6600 mcd
Beam angle: 160°
Driving mode: Constant voltage
Dimension: 70*16*8.1
Colour: RGB
IP rating: IP65
Modules per bundle: 20
Total length: 3 meters

Wiring, power and expansion
These modules run on 12V DC constant voltage, so they need a 12V power supply and an RGB controller sized for the load you build. Do the math simply: 0.72W per module times the number of modules on the circuit, then leave yourself headroom on the power supply. The bundle is designed to expand — up to 4 sets of 20 modules can be connected in parallel, 2 sets on each side of the controller, for a single circuit of 240 LEDs. Keep runs balanced on both sides of the controller for consistent brightness from the first module to the last, and plan your feed point before you start sticking modules down.

Where they go to work, and documentation
Sign shops use them for channel letters, backlit logos, menu boards and pylon signs; retailers use them inside display cases, shelving and bar fronts; homeowners use them in cove ceilings, toe-kicks, media walls and custom furniture. The IP65 rating means dust and moisture inside a sign cabinet or a humid basement will not shorten their life. Clean and degrease the surface before applying the adhesive, and use a mechanical fastener or extra adhesive on rough or painted metal. The full technical PDF for the 20 RGB LED Module Bundle (60 LEDs) is available in the Documentation tab of this page, with all the electrical and dimensional details you need to spec your project or hand off to an electrician.

Technical Files
