Built for backlighting, not just for strips

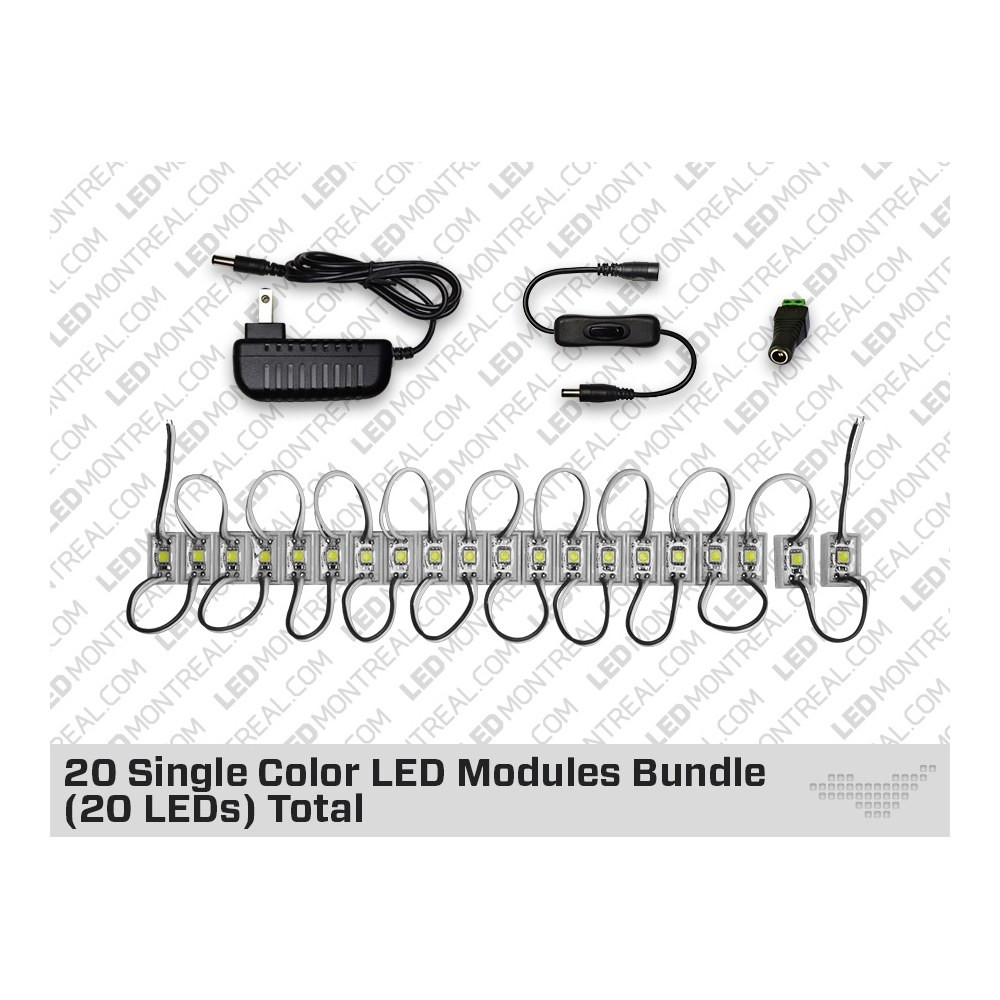

Where a standard LED strip forces you into a straight line, an LED module chain gives you freedom. The 20 Cool or Warm White LED Module Bundle is made of 20 separate modules of 8 cm each, joined by short lengths of wire. Each module carries its own LEDs and its own adhesive backing, so you stick them one at a time, exactly where the light has to land. That's why sign shops and cabinetmakers reach for LED modules when they need to fill the inside of a light box evenly, outline a channel letter, or wrap light around a curve that no ribbon could follow.
Light quality and colour
The bundle is offered in cool white or warm white. Cool white gives that bright, crisp, high-contrast look that makes white acrylic faces and printed graphics pop — ideal for storefront signs, pharmacies, convenience stores and menu boards. Warm white brings a softer, more inviting glow, better suited to restaurants, boutiques, hotel lobbies, millwork and residential display cabinets. These are ultra bright modules designed specifically for back lighting, so choose your colour based on the face material and the mood you want, and keep the same colour across the whole project for a perfectly uniform panel.
Technical specifications
SKU: 20LEDMODW
Brand: LED MONTREAL
Quantity per kit: 20 LED modules (20 LEDs)
Module length: 8 cm each
Wire between modules: 6 cm
Total length of kit, extended: 1.6 m
Maximum on one circuit: 4 sets of 20 modules, 80 LEDs, up to 6.4 m
Colour options: cool white or warm white
Mounting: self-adhesive backing, modules can be twisted or arranged to fit your design
Applications: residential and commercial projects
Installation and layout tips
Start by dry-fitting your layout inside the sign or cabinet before you peel any adhesive — lay the chain out, space the modules evenly, and check that the light reads uniform through the face material. Clean and dry the mounting surface first; adhesive grips best on smooth, degreased metal, acrylic or melamine. The 6 cm of wire between each module is your adjustment range: tighten the spacing where you need more intensity, such as the middle of a large letter, and stretch it where a soft wash is enough. Plan your circuits too: you can chain up to 4 sets of 20 modules on a single circuit for a total of 80 LEDs and up to 6.4 metres, so break longer runs into separate circuits fed from your power source. Keep all connections inside the enclosure, and leave a little slack at corners so the wires aren't under tension.
Applications and documentation
Concrete examples: an illuminated light box over a bakery counter, back-lit channel letters on a storefront, a glowing logo behind a reception desk, a display case in a jewellery shop, a translucent bar front, or a home theatre niche that needs an even halo. For indoor LED lighting projects in Canadian homes and small businesses, these modules do what a rigid strip can't: they bend around the design instead of dictating it. No additional documentation is listed on this page for this kit; if your project needs custom spacing or a longer run, simply plan multiple circuits of up to 4 sets each and keep your module colour consistent for a flawless, professional finish.
