12V DC FLAT G4 5630 DIMMABLE LED BULB

Name: 12V DC FLAT G4 5630 DIMMABLE LED BULB
Brand: LED MONTREAL
SKU: G45630-W
Price: 5.97 CAD
Availability: InStock

SKU: G45630-W

Brand: LED MONTREAL

Say goodbye to hot, short-lived halogen capsules: the 12V DC Flat G4 5630 Dimmable LED Bulb from LED MONTREAL gives you the punch of a real halogen replacement in a tiny flat format. Also called a G4 LED bulb, flat G4 capsule, bi-pin puck lamp or under-cabinet LED module, it slips into the same sockets you already have and instantly modernizes them. It is built for low-voltage DC circuits, which makes it a favourite for cars, RVs, motorhomes, boats, camper vans, under-cabinet modules, range hoods, display cases and reading lights — anywhere a small G4 halogen used to burn your fingers and drain your battery.

Under its uncoated plastic board sit 15 x 5630 SMD LEDs with Epistar chips, delivering a wide 180-degree beam angle and a generous spread of light for such a small lamp: 330 lumens in warm white (2800-3200K) or 340 lumens in cool white (5500-6500K). Consumption is only 6W on a 12V DC input, so you get a bright, usable pool of light while sipping far less energy than the halogen capsule it replaces. It uses a standard G4 base and measures 30 mm long (44 mm with the pins) x 30 mm wide, a flat profile that fits tight puck housings and shallow fixtures. And yes, it is dimmable, so you can tune the level from bright task light to soft ambiance. Important: this bulb works on DC circuits only — check that your fixture runs on DC before installing, because putting a DC bulb on an AC circuit damages both the bulb and the fixture.

It shines in kitchen under-cabinet lighting, range hoods, bookshelf and display-cabinet spots, boat cabins, trailer and RV interiors, and small retail showcases — a real plus through long Canadian winters when RV batteries and solar setups need every watt saved. Since it is sold as a single flat G4 capsule, plan one per socket and keep a spare on hand for future maintenance. The technical PDF is in the Documentation tab if you want to confirm dimensions and voltage before ordering. Ready to make every little fixture brighter and cooler? Add SKU G45630-W to your project today.

Built small, built bright

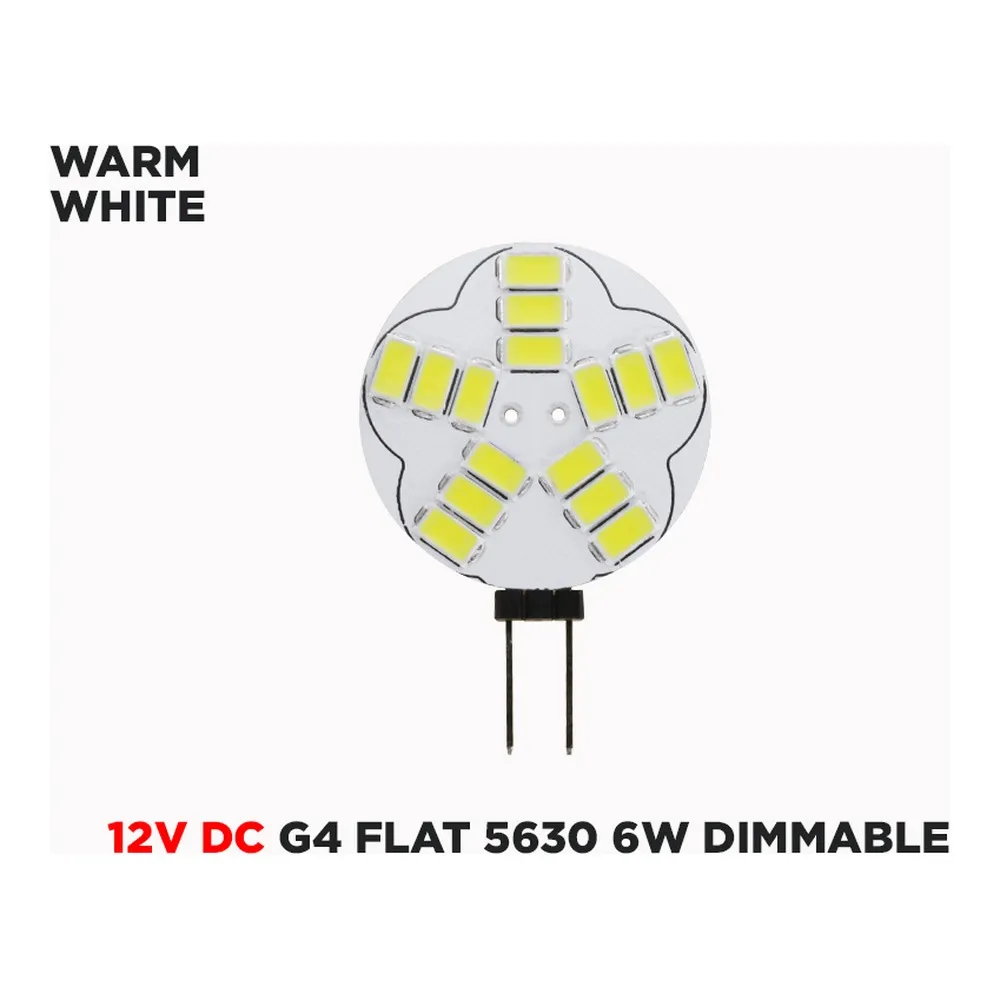

The Flat G4 5630 LED Bulb packs 15 x 5630 SMD LEDs onto an uncoated plastic board, a flat "pancake" format that stays slim inside puck lights, under-cabinet modules and shallow marine or RV fixtures. The 5630 chip is one of the brightest SMD packages used in G4 retrofits, and here it is paired with Epistar chips for consistent output from lamp to lamp. With a footprint of 30 mm long (44 mm with pins) x 30 mm wide, it drops into housings where a bulky tower-style G4 LED simply will not close.

Light quality and dimming
The 180-degree beam angle is what makes this flat design so useful: instead of a narrow spot, the light washes forward across the counter, the shelf or the cabin wall, with fewer dark corners. Choose warm white at 2800-3200K for a cozy, halogen-like glow, or cool white at 5500-6500K for a crisp, daylight-style beam over work surfaces. Output reaches 330 lumens in warm white and 340 lumens in cool white, while drawing just 6W. The bulb is dimmable, so on a compatible 12V DC dimming system you can drop the level for evening ambiance and bring it back up for prep work or reading.

Electrical and installation notes
This lamp runs on 12V DC only. Before installing, confirm that your fixture, transformer or vehicle circuit is truly DC — many household G4 fixtures use an AC transformer, and installing a DC bulb on an AC circuit will damage both the bulb and the fixture, a situation not covered by warranty. Installation itself is simple: cut power, let the old halogen capsule cool, pull it straight out of the G4 bi-pin socket, then push the new flat LED in without touching the LED surface. Because LEDs run far cooler than halogen, they are a smart upgrade inside enclosed wood cabinets, range hoods and vehicle headliners where heat used to be a concern.

Technical specifications
SKU: G45630-W
Brand: LED MONTREAL
Dimensions: 30mm long (44mm with pins) x 30mm wide
Chip brand: Epistar
LED consumption: 6W
LED quantity: 15 x 5630 SMD LEDs
Base type: G4
Input voltage: 12V DC
Dimmable: Yes
Beam angle: 180 degrees
Colour temperature: Warm white 2800-3200K / Cool white 5500-6500K
Lumens: 330 (warm white) / 340 (cool white)

Applications and documentation
Think kitchen under-cabinet lighting and range hoods, display cases in a boutique or jewellery counter, bookshelf and curio-cabinet spots, plus the whole low-voltage world: car and truck interiors, RV and motorhome ceilings, trailer galleys, boat cabins and reading lamps. For residential and commercial projects alike, it is an easy one-for-one swap that cuts consumption and heat while adding a dimmable, 180-degree spread. Full details — dimensions, voltage, lumen output and colour temperatures — are listed in the technical spec sheet available in the Documentation tab, so you can verify fit before you order a full set for your fixtures.
