Built for wet locations

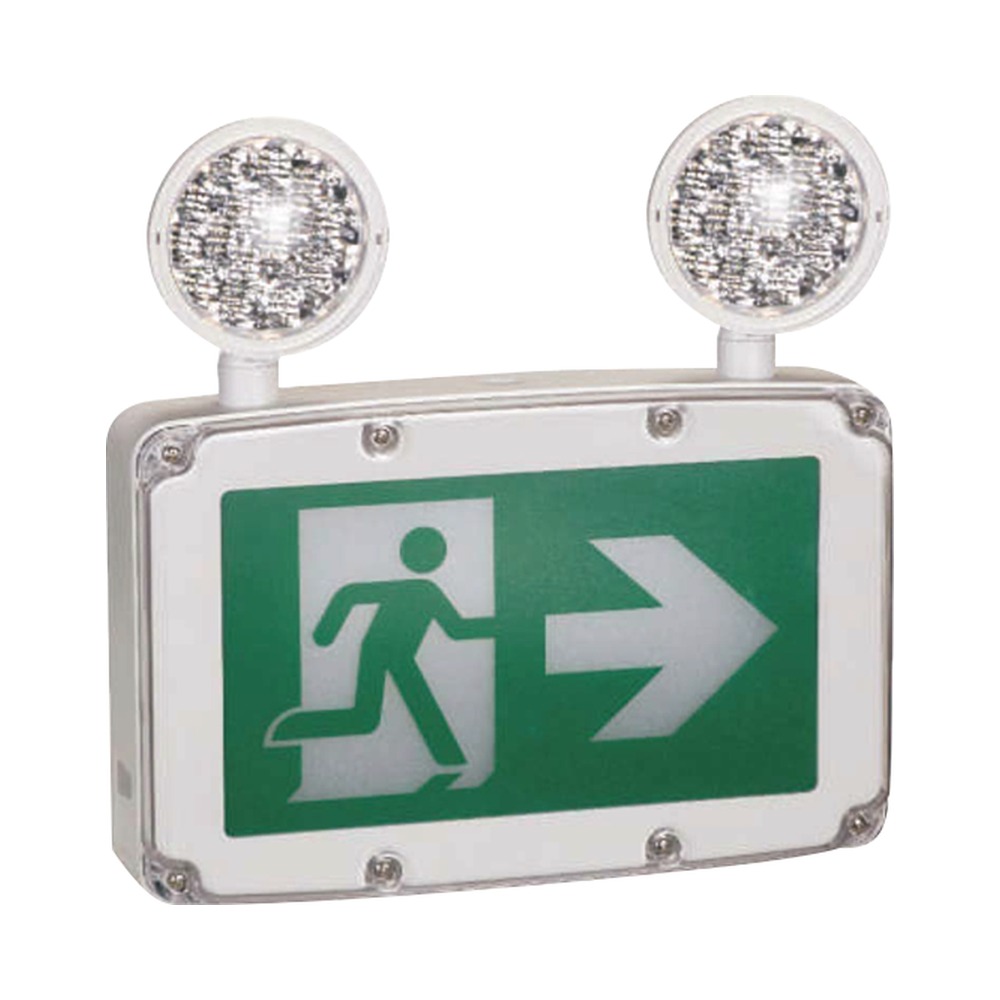

The housing of the TL-RMES-33-WL is injection-molded thermoplastic, a white ABS shell that will not rust, stain or flake the way painted steel can once it lives outdoors. That construction is what earns the unit its IP 65 rating and its UL-924 listing for Wet Location, meaning it is meant to face rain, spray, wash-down and condensation rather than just a dry corridor. The stated operating temperature range is -20˚C ~ +40˚C, which covers an unheated warehouse in January and a sun-baked loading dock in July. The unit is a single-face combo sign: one Running Man pictogram panel plus two emergency lamp heads on the same body.
Light output and the two heads
Illumination comes from super bright SMD LED at 6500K, a cool, high-contrast white that makes the green Running Man pictogram legible down a long aisle and puts clean light on stair treads and thresholds. The two lamp heads are rated 1.5W x 2 for a 4.5W total fixture draw, and they are adjustable, so you can aim one down the path of egress and the other at the door hardware, or spread them to cover a wider landing. Because it is LED rather than incandescent, the draw stays tiny and the heat stays low, which also means the battery runs the heads far longer than an old sealed-beam emergency unit would.
Electrical, battery and testing
Input is 120/347VAC, a dual rating that saves you sourcing a separate model or a step-down transformer when the building is fed at 347V — a very common situation in Canadian commercial and institutional construction. Self-powered operation comes from a Ni-Cd battery backup good for 2 hours of illumination after a power failure, and the unit is remote capable. A test switch and charge indicator light are built in, so the building superintendent can run the required functional test from the floor and confirm the battery is charging at a glance, without opening the housing.
Technical specifications
SKU / Model: TL-RMES-33-WL
Brand: TUROLIGHT
Ordering code: 3466212
Type: “Running Man” LED Combo Sign, single face, wet location, self powered
Total wattage: 4.5W
Lamp heads: 1.5W x 2, adjustable
Input voltage: 120/347VAC
CCT: 6500K
Housing: injection-molded thermoplastic ABS, white
Protection: IP 65, UL-924 listed for Wet Location
Battery: Ni-Cd, 2 hrs back-up
Mounting: wall, ceiling, side (universal)
Remote capable: Yes
Dimensions (L×W×H): 13.94” × 14.49” × 3.27”
Operating temperature: -20˚C ~ +40˚C
Warranty: 2-year limited
Where it goes and what you get with it
Universal wall, ceiling or side mounting makes this one model work at almost every exit on a site: above the rear door of a restaurant, in a parking garage stairwell, under the canopy of a strip mall, in a car wash bay, on a covered dock at a distribution centre, or at the exterior stair of a multi-residential building. Because the sign and the emergency heads share one body and one junction box, installation is faster and the wall stays cleaner than with two separate devices. The technical PDF (TL-RMES-33-WL Spec Sheet) is in the Documentation tab and includes the dimensional drawing and the full ordering information — worth printing for the electrical inspector's file along with your monthly test log.
