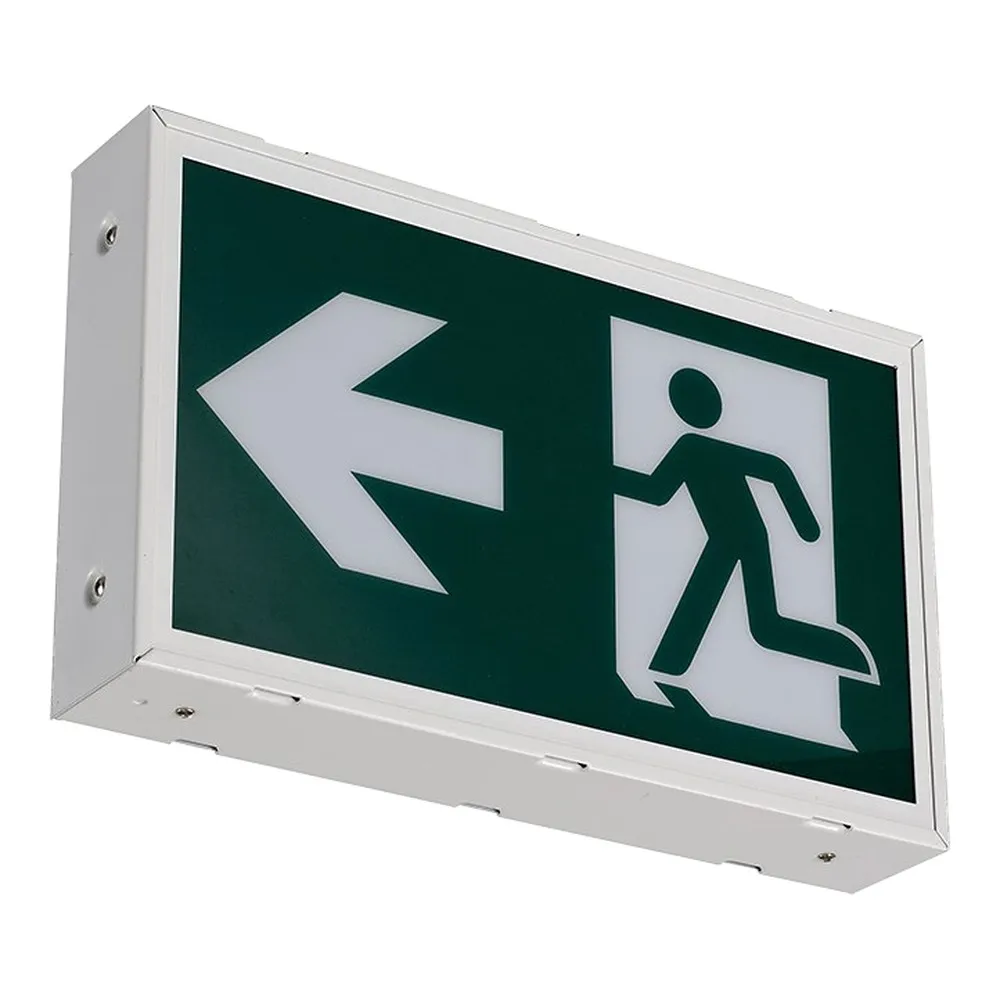

“RUNNING MAN” LED EMERGENCY SIGN - WHITE METAL HOUSING AC ONLY & 6-24V UDC

Name: “RUNNING MAN” LED EMERGENCY SIGN - WHITE METAL HOUSING AC ONLY & 6-24V UDC
Brand: TUROLIGHT
SKU: TL-RMES301-UDC
Price: 72.97 CAD
Availability: InStock

SKU: TL-RMES301-UDC

Brand: TUROLIGHT

Code-required, instantly recognizable, and ready to mount anywhere: the TUROLIGHT "Running Man" LED emergency sign with white metal housing is the pictogram version of the classic exit sign you see in every school, office and commercial corridor across Canada. People search for it as a running man sign, an exit sign, an enseigne de sortie or simply an LED sign — it's the universal green-and-white pictogram that shows occupants the way out when the lights go down. This version, SKU TL-RMES301-UDC, runs on AC power or from a 6-24V UDC central emergency supply, which makes it the go-to choice when a building already has a central battery unit, an emergency inverter or a DC circuit feeding the life-safety devices.

Built with a CRS (cold rolled steel) housing and PC panels, it lights up with super bright SMD LEDs that draw only 3W at 120V (4W at 347V), with an input voltage of 120/347V so the same sign works on standard residential-commercial feeds and on 347V commercial panels. It measures 12.2" × 7.5" × 2.2" (L × W × H), comes with 3 pictograms included for single or double face configurations (2 arrow pieces, 1 without arrow), and is remote mounting capable. A test switch and charge indicator light are built in for quick monthly verification. It is certified CSA C22.2 No. 141, rated IP20 and damp location, operates from -10˚C to +40˚C, and is backed by a 2-year limited warranty.

This sign shines in corridors, stairwells, parking garage entries, warehouses, schools, clinics, restaurants, retail stores and multi-unit residential buildings — anywhere an inspector will look up for a clear exit path. Universal wall, ceiling or side mounting means one part number covers your whole floor plan, and the innovative, easy installation saves real time on a retrofit. Important: the -UDC model has no internal battery, so it must be fed by an existing AC/6-24V UDC emergency source. If you need a stand-alone unit instead, choose the self-powered Running Man LED emergency sign with Ni-Cd battery backup for 2 hours. Add it to your next order and get your egress path up to code.

72.97$

Supplier availability: In stock (+500)

Learn more
Documentation

Solid construction that survives a job site
The TUROLIGHT TL Series "Running Man" LED emergency sign is built around a CRS housing finished in white, with polycarbonate (PC) panel(s) carrying the pictogram. Steel gives you a sign that keeps its shape on a bumpy corridor wall, resists knocks from carts and ladders, and looks clean in a finished lobby rather than looking like temporary equipment. The complete assembly measures 12.2" × 7.5" × 2.2" (L × W × H), a compact footprint that tucks above a door frame or projects from a side wall without dominating the space.

Light quality and visibility
Super bright SMD LED light sources illuminate the pictogram evenly, so the green running man reads clearly from down a hallway and through the haze of an emergency. The unit ships with 3 pictograms included: 2 pieces with arrow and 1 piece without arrow, so you can configure left, right or no directional indication, in single or double face. That flexibility means one box on the truck covers a T-intersection, a straight run and a stairwell door. LEDs also mean very low power draw — only 3W at 120V — for a device that stays energized around the clock, year after year.

Electrical and installation details
This is the AC / 6-24V UDC version: it operates from line power and, on loss of AC, from a central 6-24V UDC emergency supply. It contains no self-powered battery, so plan your circuit accordingly — it is designed to be wired to an existing central emergency system or DC source. Input voltage is 120/347V, consuming 3W at 120V and 4W at 347V. The sign is remote mounting capable and offers universal wall, ceiling or side mounting, with an innovative, easy installation that shortens the time your electrician spends on a ladder. A built-in test switch and charge indicator light make the routine functional test quick and documented.

Technical specifications
Brand: TUROLIGHT
SKU: TL-RMES301-UDC
Ordering code: 3461118
Wattage: 3W (120V) / 4W (347V)
Input voltage: 120/347V
Power source: AC / 6-24V UDC (no self-powered battery)
Remote capable: Yes
Mounting: Wall, ceiling, side (universal)
Housing: CRS housing + PC panel(s), white
Pictograms: 3 included (2 pcs with arrow, 1 pc without arrow), single/double face
Certification: CSA C22.2 No. 141
Protection: IP20, damp location rated
Operating temperature: -10˚C ~ +40˚C
Dimensions: 12.2" × 7.5" × 2.2" (L × W × H)
Warranty: 2-year limited

Applications, compatibility and documentation
Specify this running man exit sign for office floors, retail stores, restaurants, medical clinics, daycare centres, schools, warehouses, light industrial shops and condo corridors — anywhere a building already has a central emergency power system feeding life-safety loads. The damp location rating and the -10˚C to +40˚C range also let it work in unheated vestibules, parking garage entrances and covered loading docks, a real advantage in Canadian winters. For a location without central DC power, the self-powered sibling is the answer: the Running Man LED emergency sign with Ni-Cd battery backup for 2 hours shares the same white metal housing and 12.2" × 7.5" × 2.2" format, so mixing both across a building keeps a consistent look. The full technical spec sheet (PDF), including the dimensional drawing and ordering information, is available in the Documentation tab of this page — download it for your submittal package or your electrical inspector.
