“RUNNING MAN” LED EMERGENCY SIGN - WHITE METAL HOUSING NI-CD BATTERY BACKUP FOR 2 HOURS

Name: “RUNNING MAN” LED EMERGENCY SIGN - WHITE METAL HOUSING NI-CD BATTERY BACKUP FOR 2 HOURS
Brand: TUROLIGHT
SKU: TL-RMES301
Price: 74.97 CAD
Availability: InStock

SKU: TL-RMES301

Brand: TUROLIGHT

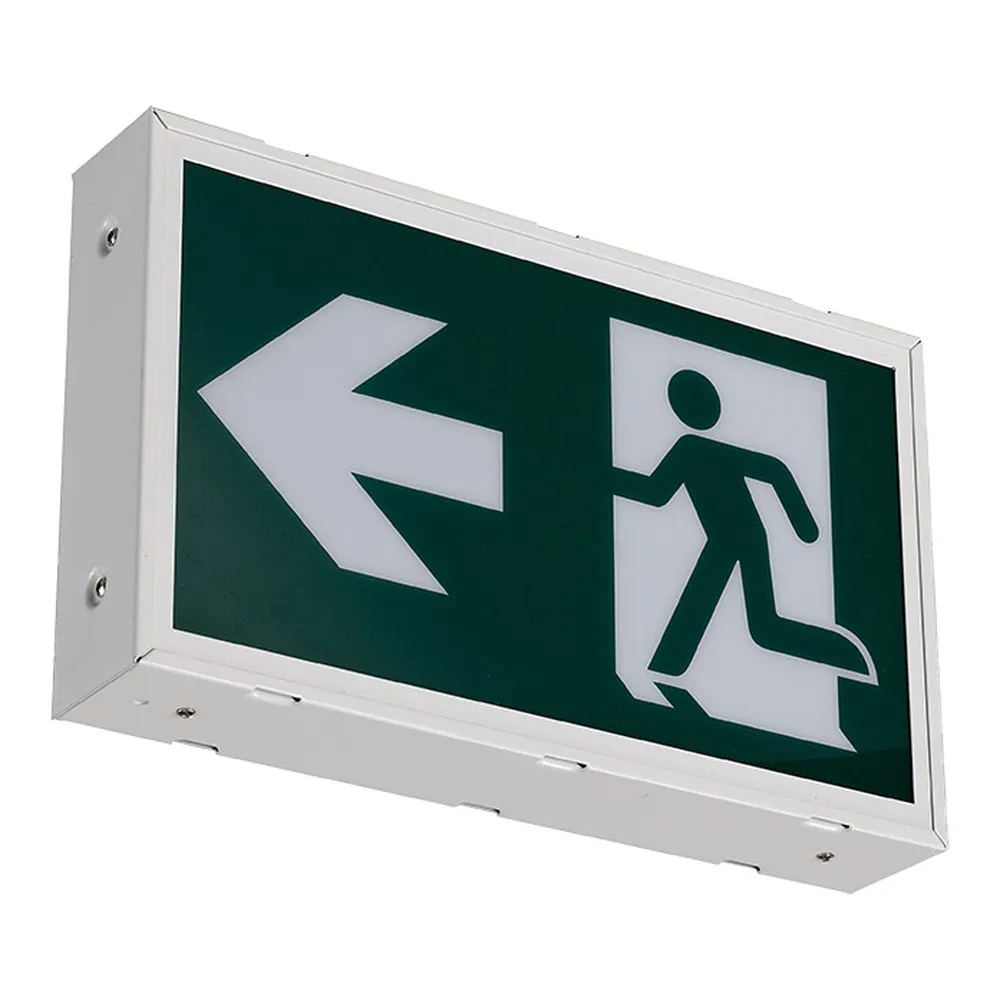

When the power cuts out, people need one clear signal telling them where to go — and that is exactly what this "Running Man" LED emergency sign from TUROLIGHT delivers. Also searched as a running man exit sign, pictogram exit sign or simply an LED sign for emergency egress, model TL-RMES301 pairs a clean white metal housing with a super bright LED-lit pictogram panel that stays visible through a blackout. It is the universal ISO-style symbol now required across Canadian buildings, and it comes with everything you need to fit the layout of your corridor: 3 pictograms are included, so you can run it as a single face or double face sign, with a left arrow, a right arrow or no arrow at all.

Under the cover, a Ni-Cd battery backup keeps the sign lit for 2 hours of run time, self powered — no separate emergency supply to wire in. It draws 3W at 120V and 4W at 347V, accepting 120/347V input, so the same box works in a house panel or a commercial 347V feed. The housing is CRS steel with PC panel(s), measuring 12.2" × 7.5" × 2.2" (L×W×H), and it mounts universally: wall, ceiling or side, whichever the doorway calls for. A test switch and charge indicator light make monthly inspections quick, and the unit is CSA C22.2 No. 141 certified, IP20 and damp location rated, with an operating range of -10˚C to +40˚C and a 2-year limited warranty.

This sign belongs anywhere people need to find the door fast: apartment and condo corridors, stairwells, office suites, retail floors, restaurants, clinics, warehouses, schools, garages and multi-unit residential projects. The damp location rating and the -10˚C low-temperature range suit Canadian realities like unheated vestibules, parking levels and back-of-house corridors. Need the same look on a building that already has a central emergency supply? Choose the AC-only version, the "Running Man" LED emergency sign, white metal housing, AC only & 6-24V UDC, and keep your signage consistent throughout. Spec it in, mount it, test it — and check that box on your inspection list.

74.97$

Supplier availability: In stock (+500)

Learn more
Documentation

Built to be seen, built to last
The TL Series LED emergency sign uses a CRS (cold rolled steel) housing finished in white, paired with PC (polycarbonate) panel(s) carrying the green running man pictogram. Steel keeps the box rigid in high-traffic corridors where a plastic shell can flex or crack, and the polycarbonate face spreads the LED light evenly across the symbol instead of leaving hot spots. Because 3 pictograms are included — 2 arrow pieces and 1 without arrow — one box covers a left-hand exit, a right-hand exit or a straight-ahead door, and the unit can be configured single face or double face for corridor-hung installations.

Light output and emergency operation
Super bright SMD LED illumination keeps the pictogram legible from a distance while sipping power: 3W on 120V and 4W on 347V. The integrated Ni-Cd battery backup is self powered and delivers 2 hours of run time when utility power drops, which is the standard duration asked for in most Canadian egress plans. A test switch lets you simulate a power failure on demand, and the charge indicator light confirms at a glance that the battery is receiving charge — the two features that make routine building inspections painless for property managers and maintenance crews.

Technical specifications
SKU / Model: TL-RMES301
Brand: TUROLIGHT (TL Series)
Description: "Running Man" LED emergency sign, white metal housing
Wattage: 3W (120V) / 4W (347V)
Input voltage: 120/347V
Battery: Ni-Cd backup, 2 hrs run time, self powered
Remote capable: No
Mounting: Wall, ceiling, side (universal)
Housing: CRS housing + PC panel(s)
Pictograms: 3 included (2 pcs with arrow, 1 pc without arrow), single/double face
Controls: Test switch and charge indicator light
Dimensions (L×W×H): 12.2" × 7.5" × 2.2"
Certification: CSA C22.2 No. 141, IP20, damp location rated
Operating temperature: -10˚C ~ +40˚C
Warranty: 2-year limited
Case quantity: 10

Installation and electrical
Turolight designed this sign for innovative, easy installation: universal wall, ceiling or side mounting means the same unit adapts to a doorway header, a drop ceiling above a corridor or a side-wall position where the pictogram must be read from both directions. Dual 120/347V input is a real time-saver on mixed projects — one SKU stocked on the truck covers the residential 120V suites and the 347V commercial floors of the same building. Note that this model is not remote capable and carries its own battery; if your project instead runs on a central DC supply or remote heads, the AC only & 6-24V UDC running man sign is the matching version, remote capable and identical in size and appearance. All work should be done by a qualified electrician, following local code and the Canadian Electrical Code.

Where it fits, and documentation
Think condo and apartment corridors, stairwell landings, office reception areas and meeting-room exits, retail sales floors, restaurant kitchens and dining rooms, medical clinics, daycares, schools, gyms, warehouses and underground parking access doors. The damp location rating and -10˚C to +40˚C range cover cold vestibules, loading areas and unconditioned service corridors common in Canadian buildings. The full TL-RMES301 spec sheet is available in the Documentation tab of this page, with the dimensional drawing, the ordering guide and the certification details you will want to attach to your permit or inspection file.
