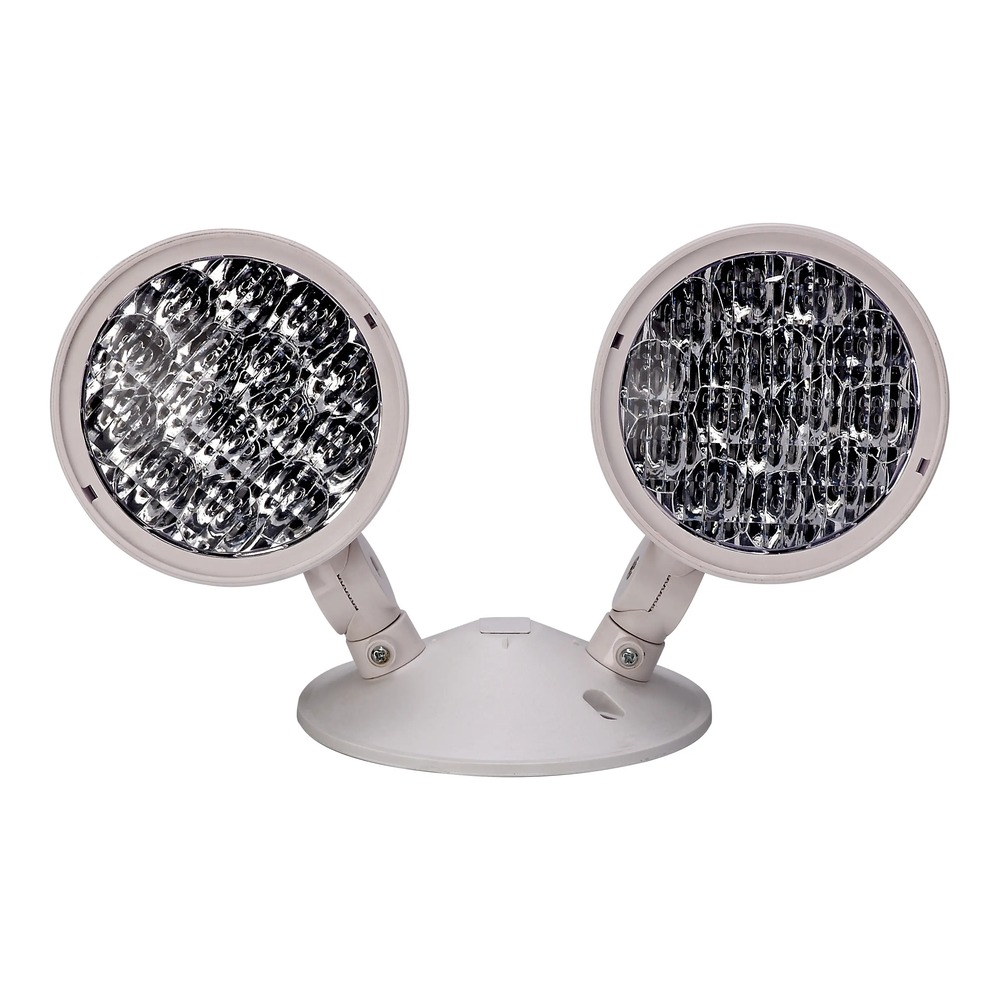

LED WET LOCATION EMERGENCY REMOTE HEAD - DOUBLE WHITE THERMOPLASTIC ABS HSG 6-24V 2X3W

Name: LED WET LOCATION EMERGENCY REMOTE HEAD - DOUBLE WHITE THERMOPLASTIC ABS HSG 6-24V 2X3W
Brand: TUROLIGHT
SKU: TL-EM002-6W-WL
Price: 47.97 CAD
Availability: InStock

SKU: TL-EM002-6W-WL

Brand: TUROLIGHT

When the power cuts out, people need to see the way out — and that's exactly what this LED emergency remote head does. Known on job sites as a remote head, emergency twin head, or simply "the double bug eye", the TUROLIGHT TL-EM002-6W-WL is a double-head wet location emergency light that connects back to a central battery unit or emergency inverter instead of carrying its own battery. Its injection-molded white thermoplastic ABS housing is built for the spots other heads can't handle: loading docks, parking garages, stairwells, exterior doorways, cold rooms and damp mechanical spaces. Two independently aimable lamp heads let you cover a corridor in both directions, or wash a single exit path with twice the punch, from one tidy junction box.

Each head delivers 3W for a total of 6W, producing 330 initial delivered lumens at a crisp 6500K daylight colour temperature with a CRI of 82 and a tight 25° beam angle that throws light far down an egress path. It runs on a 6-24VDC input voltage, so it pairs with a wide range of DC emergency battery packs, and the LEDs are rated for 50,000 hours. The housing carries a UL-94V-0 flame rating (fire-retardant), is IP65 and wet location rated, is cUL Listed, and operates from -20˚C to +40˚C — real Canadian winter territory. It measures 7.87" wide with a 5.02" canopy, mounts universally on wall or ceiling, and is backed by a 2-year limited warranty.

This double remote head belongs in warehouses, factories, garages, apartment and condo corridors, schools, restaurant back-of-house, car washes, storage buildings and any exterior door that needs illuminated egress. Because it's remote-capable, it keeps the battery indoors and the light outdoors where the weather is. Need a single-head version for tighter spots? Pair it with the LED wet location emergency remote head single 1x3W, or step up to higher output indoors with the 10W double LED emergency remote head. Spec it in, wire it up, and rest easy.

47.97$

Supplier availability: In stock

Learn more
Documentation

Built for wet, cold and rough locations
The TL-EM002-6W-WL uses an injection-molded thermoplastic housing in white ABS with a UL-94V-0 flame rating, meaning the enclosure is fire-retardant — an important detail when an inspector reviews your life-safety package. It is IP65 rated and wet location rated, so dust, hose-down cleaning and driving rain aren't a problem, and its operating temperature range of -20˚C to +40˚C keeps it working through Canadian winters in unheated garages, docks and exterior entries. The two lamp heads rotate and tilt on the canopy base so you can aim both beams exactly where the egress path runs.

Light quality and output
Each of the two heads draws 3W, for 6W total, and the fixture produces 330 initial delivered lumens. The 6500K colour temperature gives a cool daylight white that reads instantly as emergency lighting and contrasts well against normal warm interior light, while a CRI of 82 keeps signage, stair nosings and floor markings legible. The 25° beam angle concentrates the output into a long throw rather than spilling it near the fixture, which is exactly what you want when you're trying to hit the far end of a corridor or a stairwell landing with limited wattage. LED life is rated at 50,000 hours.

Technical specifications
SKU / Model: TL-EM002-6W-WL
Brand: TUROLIGHT (TL Series)
Description: LED Emergency 3W x 2 remote heads
Wattage: 6W (3W x 2)
Input voltage: 6-24 VDC
CCT: 6500K
Initial delivered lumens: 330 lm
CRI: ≥82
Beam angle: 25°
Hour rating: 50,000 hrs
Mounting: Wall, ceiling (universal)
Remote capable: Yes
Location rating: IP65, wet location
Housing: Injection-molded thermoplastic, UL-94V-0
Operating temperature: -20˚C ~ +40˚C
Dimensions: 7.87" x 5.51" x 4.53", canopy 5.02", head 2.87"
Listing: cUL Listed
Warranty: 2-year limited

Wiring and installation
Installation is straightforward for any qualified electrician. Make the wire connections first, observing polarity where required — the positive and negative wires connect to the DC supply from your emergency battery unit and are identified with labels when indicated. Secure the canopy to the junction box with mounting screws (not included), install the lamps gently to avoid breaking the pins, then apply power. To aim, loosen the set nut under the canopy just enough to rotate the heads, then retighten gently — over-tightening can break the head's feet. Tilt is done by hand, up or down. Mount the unit high enough that it won't be tampered with, and keep it away from gas or electric heaters.

Compatibility, applications and documents
Because this is a remote head and not a self-contained unit, it must be fed by a DC emergency battery pack or inverter whose output falls within 6-24VDC and whose remaining capacity covers the 6W load. Typical projects: condo and apartment corridors with exterior stair exits, warehouse loading bays, parkades, car washes, food plants with wash-down zones, and municipal garages. Indoors, the same family gives you other output levels — see the 4W emergency LED remote head double and the 14W double LED emergency remote head — and for smaller wet-location coverage the single-head 1x3W wet location model shares the same housing and voltage range. The full technical spec sheet with the dimensional drawing, ordering guide and installation instructions is in the Documentation tab.
