Built for real buildings

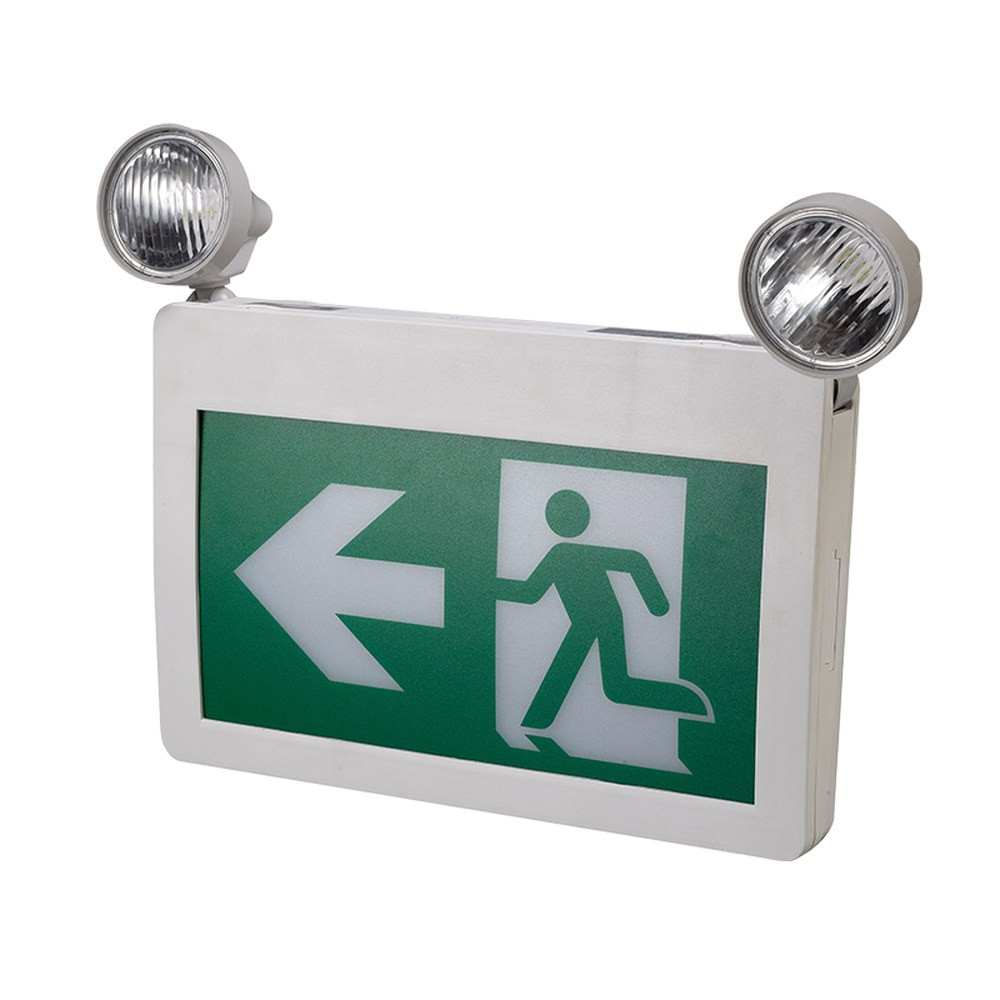

The TL-RMES333 from TUROLIGHT pairs a "Running Man" pictogram sign with two adjustable lamp heads in a single enclosure, so one device satisfies both the exit marking and the emergency illumination portion of your egress plan. The body is a plastic housing with a PC pictogram face — light, easy to handle on a ladder, and simple to service. Because 3 pictograms are included, the installer chooses the correct arrow direction (left, right or none) on site, which keeps your parts list short on multi-door jobs and avoids a return trip when the layout changes mid-project.
Light output and aiming
Illumination comes from 2W x 2 lamp heads fitted with super bright SMD LED. The remote head can be rotated to a certain angle, so you can throw light down a corridor, across a stair landing, or toward a rear exit door rather than settling for whatever direction the box happens to face. Total unit wattage is 3W, a small enough load that adding units along a long corridor stays easy on the circuit while LED technology draws a fraction of what older incandescent emergency heads consumed.
Power, battery and mounting
Input is 120/347V, a dual-voltage design that covers standard commercial 120V branch circuits as well as the 347V systems found throughout many Canadian commercial and institutional buildings — one SKU, fewer ordering mistakes. When the power drops, the Ni-Cd battery backup takes over and supports the unit for 2 hours. Mounting is universal (wall, side), so the same fixture handles a flat wall above a door or an end/side mount projecting from a corridor wall for better sightlines. Rated for damp location installations with an operating range of -10˚C ~ +40˚C.
Technical specifications
Model: TL-RMES333
Brand: TUROLIGHT
Series: TL Series
Type: "Running Man" LED emergency combo sign
Wattage: 3W
Lamp heads: 2W x 2
Input voltage: 120/347V
Mounting: Wall, side (universal)
Remote capable: No
Self powered battery: Yes (2 hrs), Ni-Cd
Location: Damp
Housing: White plastic, PC pictogram sign
Pictograms included: 3
Operating temperature: -10˚C ~ +40˚C
Dimensions (L×W×H): 16.34" × 12.40" × 2.91"
Warranty: 2-year limited
Where it goes and what's in the file
Typical installs include office corridors and stair enclosures, retail sales floors and stockrooms, restaurant kitchens and service hallways, gyms and studios, medical and dental clinics, condo and apartment common areas, warehouses, small manufacturing shops and community centres. Anywhere a directional exit marking has to stay lit and the walking surface has to stay illuminated during an outage, this combo sign is the straightforward answer — and since it is not remote capable, plan any additional coverage with separate self-contained units rather than remote heads wired off this one. The TL-RMES333 spec sheet in the Documentation tab includes the full dimensional drawing and the ordering information table, so your electrical contractor can confirm mounting height, projection and voltage before rough-in.
