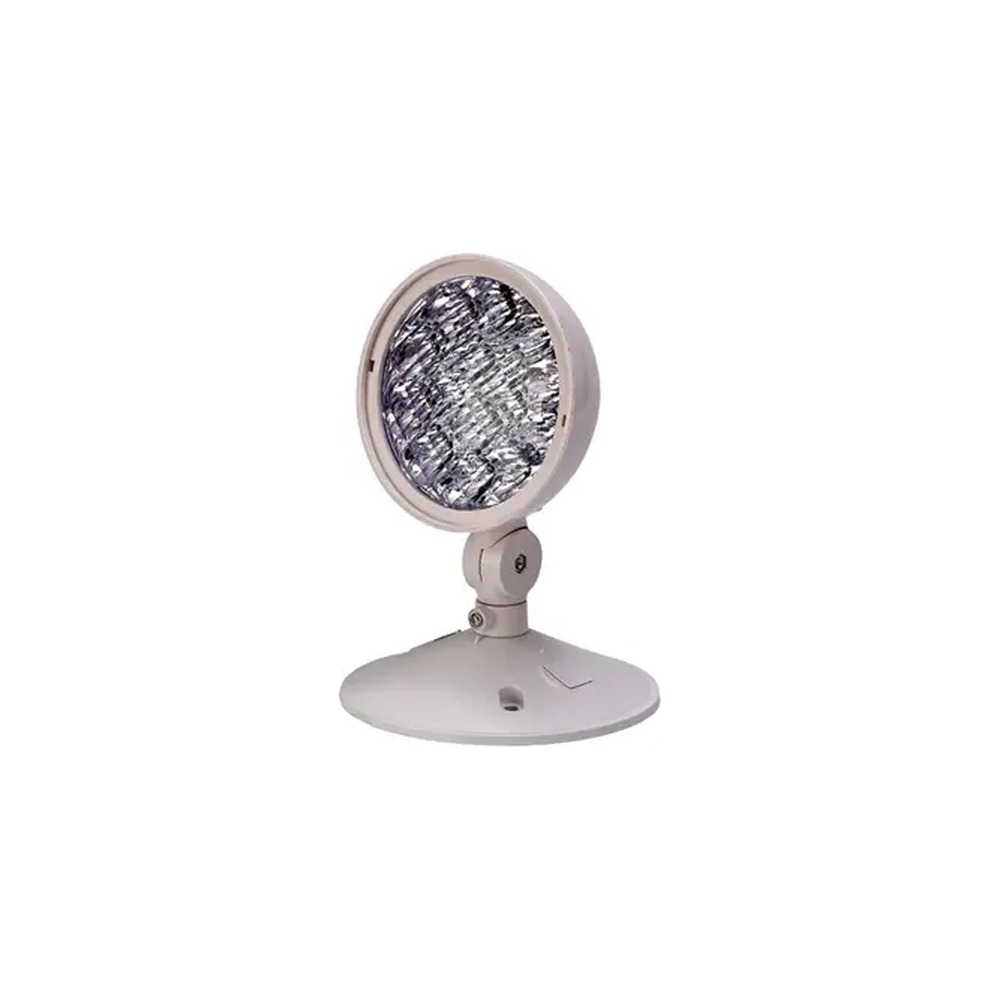

LED WET LOCATION EMERGENCY REMOTE HEAD - SINGLE WHITE THERMOPLASTIC ABS HSG 6-24V 1X3W

Name: LED WET LOCATION EMERGENCY REMOTE HEAD - SINGLE WHITE THERMOPLASTIC ABS HSG 6-24V 1X3W
Brand: TUROLIGHT
SKU: TL-EM003-3W-WL
Price: 34.97 CAD
Availability: InStock

SKU: TL-EM003-3W-WL

Brand: TUROLIGHT

When the power cuts out, nobody should be left searching for the exit in the dark — and that's exactly the job of the LED emergency remote head TL-EM003-3W-WL from TUROLIGHT. Often called a remote head, satellite head, emergency remote lamp or simply an emergency light head, this single-head unit connects to the DC output of an emergency battery unit and fires up automatically the moment the building loses power. Because it's wet location rated, it goes exactly where standard indoor heads can't: loading docks, covered entries, parking garages, stairwells, walk-in coolers, car washes and damp mechanical rooms. One compact white housing, one bright beam aimed exactly where people need to walk.

This is a 1 x 3W remote head delivering 165 initial lumens at 6500K, a crisp white light that reads clearly as emergency lighting and helps the eye pick out steps, doors and obstacles fast. The CRI of 82 keeps signage and floor markings legible, and the tight 25° beam angle throws light down the path instead of scattering it. Input voltage is 6-24 VDC, so it pairs with a wide range of emergency battery packs and inverters. The injection-molded thermoplastic housing carries a UL-94V-0 flame rating and is fire-retardant, and the unit is IP65 and wet location rated, cUL Listed, with an operating temperature range of -20˚C to +40˚C. Rated for 50,000 hours, it's covered by a 2-year limited warranty. Dimensions: 7.87" wide, 5.51" high and 5.02" deep at the head, with a 2.87" canopy.

Universal wall or ceiling mounting makes it easy to place this emergency remote head in real Canadian buildings — exterior man-doors that ice over in January, unheated warehouses, apartment corridors, restaurant back-of-house, garages and municipal facilities where inspectors expect illuminated egress paths. The head rotates and tilts, so one electrician can aim the beam along a corridor or down a staircase in seconds. Need two beams from a single junction box? Use the double wet location remote head 2x3W. Need more punch for wide-open areas? Look at the single 1x5W remote head or the single 1x7W remote head. Add the TL-EM003-3W-WL to your next emergency lighting layout with confidence.

34.97$

Supplier availability: In stock (+50)

Learn more
Documentation

Built for wet, cold and demanding locations
The TL-EM003-3W-WL is built around an injection-molded thermoplastic housing in white, a material choice that shrugs off humidity, condensation and washdown spray far better than painted steel. The housing carries a UL-94V-0 flame rating and is fire-retardant, an important detail for a device that must keep working during a building emergency. The complete unit is IP65 rated and wet location listed, and it operates from -20˚C to +40˚C, which covers unheated Canadian garages, docks and exterior soffits through a full winter. The single head rotates on its base and tilts up or down, so the beam can be re-aimed after installation without touching the wiring.

Light quality and beam control
This model produces 165 initial delivered lumens from a single 3W LED head at 6500K. That cool, daylight-white tone is the standard look for emergency egress lighting because it contrasts strongly with normal warm interior light and immediately signals "this is the emergency path." A CRI of 82 keeps exit signage, floor striping and stair nosings readable rather than washed out, while the 25° beam angle concentrates the output into a defined pool of light — ideal for lighting a doorway, a stair run or a stretch of corridor rather than spilling light everywhere.

Technical specifications
SKU / model: TL-EM003-3W-WL
Brand: TUROLIGHT
Ordering code: 3465130
Description: LED Emergency 3W x 1 remote head
Wattage: 3W
Input voltage: 6-24 VDC
Colour temperature: 6500K
Initial delivered lumens: 165 lm
CRI: 82
Beam angle: 25°
Rated life: 50,000 hours
Mounting: wall, ceiling
Remote capable: yes
Location rating: IP65, wet location
Listing: cUL Listed
Operating temperature: -20˚C ~ +40˚C
Dimensions: 7.87" x 5.51" x 5.02", canopy 2.87"
Case quantity: 20
Warranty: 2-year limited

Wiring and installation
Installation follows the standard remote head sequence: make the wire connections first, observing polarity where required, and connect the lamp to the DC supply wires — positive and negative are identified with labels on each wire when indicated. Mount the canopy to the junction box with mounting screws (not included), install the lamp gently so the pins aren't broken, then apply power. To aim the head, loosen the set nut on the base under the canopy just enough to rotate it, then tighten gently; over-tightening can break the head's feet and affect performance. Tilt is set by hand. Because the input is 6-24 VDC, this head is designed to run from the remote-capable DC output of an emergency battery unit rather than from line voltage — always confirm the battery unit's remote capacity before adding heads, and have the work done by qualified personnel.

Applications, compatible products and documentation
Typical jobs include exterior service doors, covered loading bays, parkades, warehouse aisles, stairwells, apartment and condo corridors, commercial kitchens, car washes and pump rooms — anywhere a code-required egress path is exposed to moisture or cold. On larger layouts, mix formats from the same family: the double wet location remote head 2x3W covers two directions from one box, while the 2W single emergency remote head, the 1x5W single remote head and the 1x7W single remote head let you match output to ceiling height and spacing. The full technical PDF spec sheet, including the dimensional drawing, ordering table and installation instructions, is available in the Documentation tab.
