Built for damp, cold and demanding spots

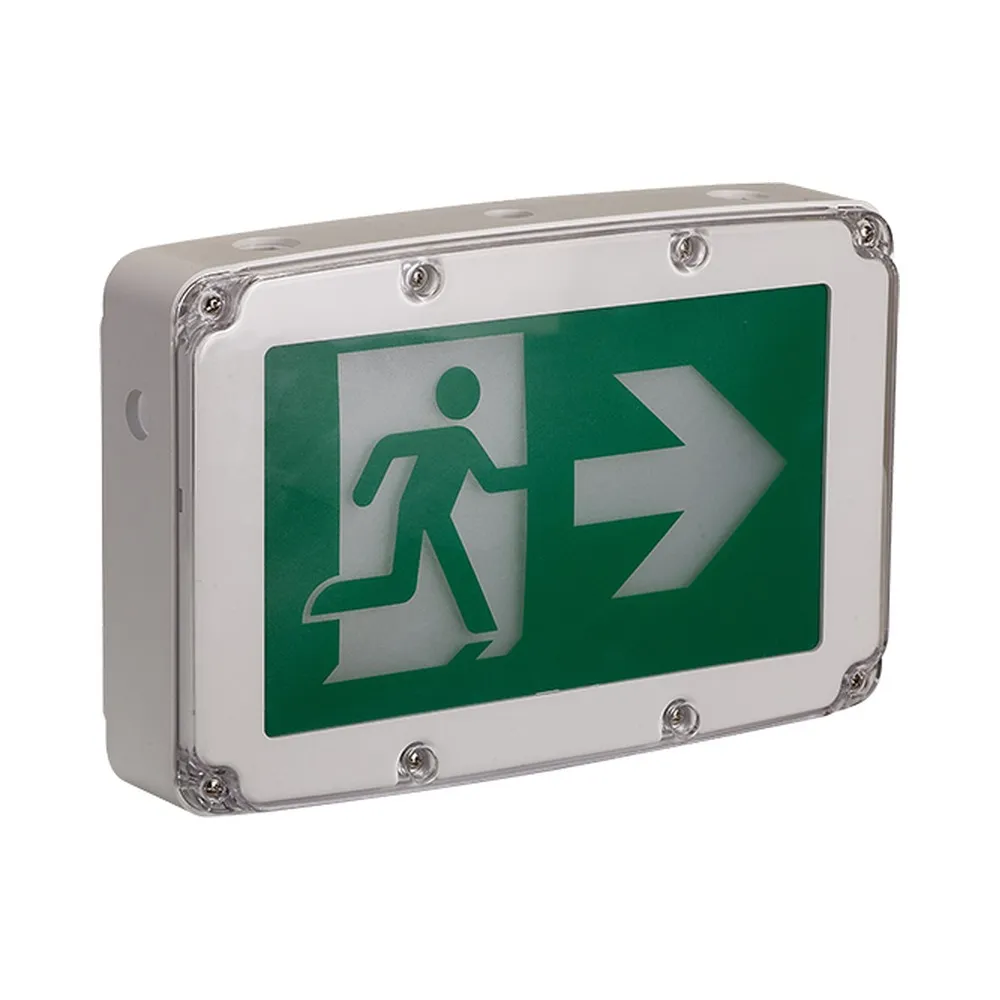

The housing of the TL-RMES-11-WL is injection-molded thermoplastic in a clean white finish, a material that shrugs off humidity, condensation and the salty, dusty air of a garage far better than a painted steel box. The single face design puts the pictogram on one side, which is what you want above a door or at the end of a corridor where traffic arrives from a single direction. TUROLIGHT rates the unit for an operating temperature range of -20˚C ~ +40˚C, so it stays reliable in an unheated dock, a covered entrance or a refrigerated space.
Light quality you can see through smoke and panic
Legibility is everything on an emergency sign. This model uses super bright SMD LED sources at 6500K, a cool daylight tone that makes the green running man pop against a dark or smoke-filled corridor and stay readable from a distance. Because the light engine is LED rather than incandescent, the sign sips only 4.2W while it is energized, which keeps the load on your emergency circuit low and lets the battery do more work when it is needed.
Self-powered, tested in seconds
The unit is self powered: a Ni-Cd battery inside provides 2 hours of backup when normal power drops, with no remote head wiring or central inverter required. A test switch lets maintenance staff simulate a power failure on the spot, and the charge indicator light confirms at a glance that the battery is charging. Input is 120/347VAC, a dual rating that means the same sign serves a house, a strip mall on 120V and an industrial or institutional building running 347V — very handy when you are stocking one part number for a multi-building job.
Technical specifications
SKU / Model: TL-RMES-11-WL
Ordering code: 3461222
Brand: TUROLIGHT

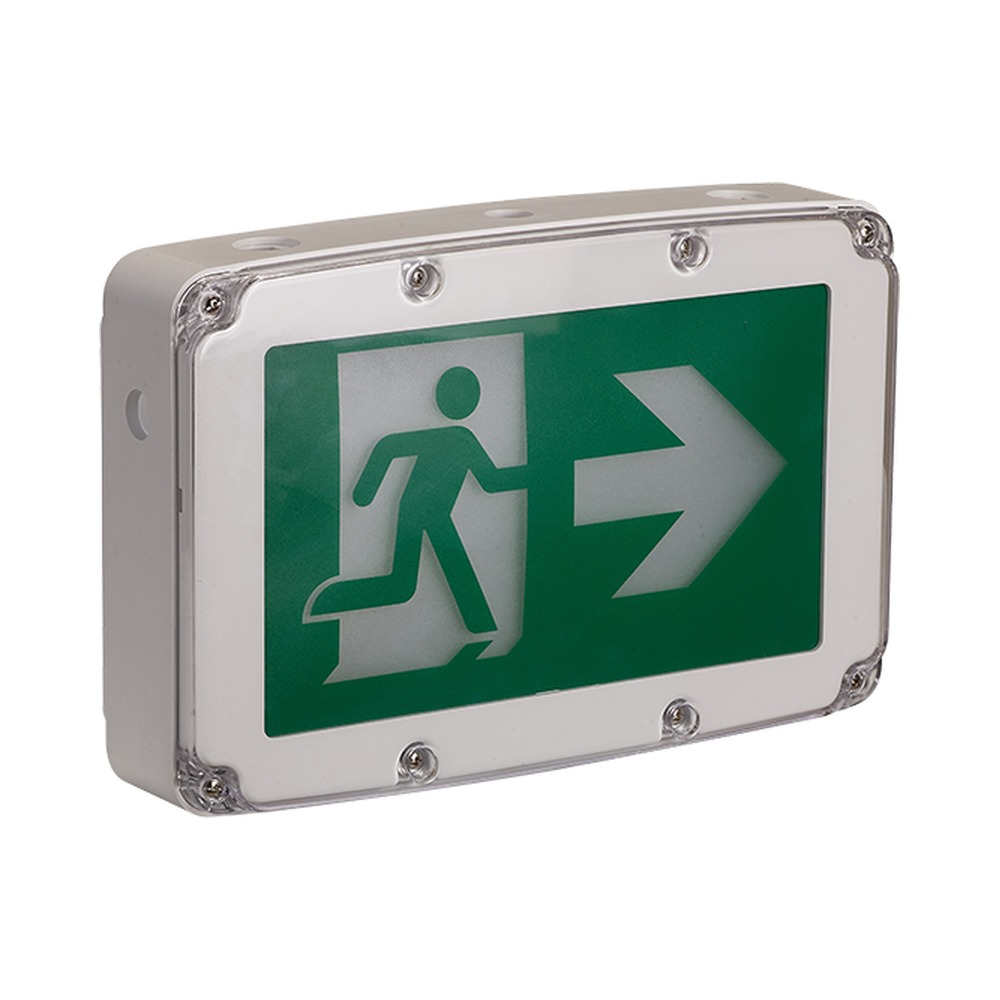

Type: "Running Man" LED emergency sign, single face, white housing
Wattage: 4.2W
Input voltage: 120/347V
CCT: 6500K
Mounting: wall, ceiling, side (universal)
Remote capable: No
Self powered battery: Yes (2 hrs), Ni-Cd
Wet location: Yes
Listing: UL-924 listed for Wet Location
Dimensions (L×W×H): 13.94" × 9.13" × 2.99"
Operating temperature: -20˚C ~ +40˚C
Warranty: 2-year limited
Where to install it, and the paperwork
Think of every door your building code calls an exit and every path leading to it: underground parking levels, exterior vestibules and canopies, warehouse and loading dock doors, arenas and community centres, car washes, breweries and commercial kitchens where wash-down and steam are daily facts, plus stairwells and service corridors. Because it accepts universal wall, ceiling or side mounting, the electrician chooses the orientation on site instead of ordering a second version — a real time saver on retrofits where the junction box is already in place. Full details, the dimensional drawing and the ordering table are in the TL-RMES-11-WL spec sheet available in the Documentation tab of this page; keep a copy with your inspection file, along with a note of the monthly test switch check.
